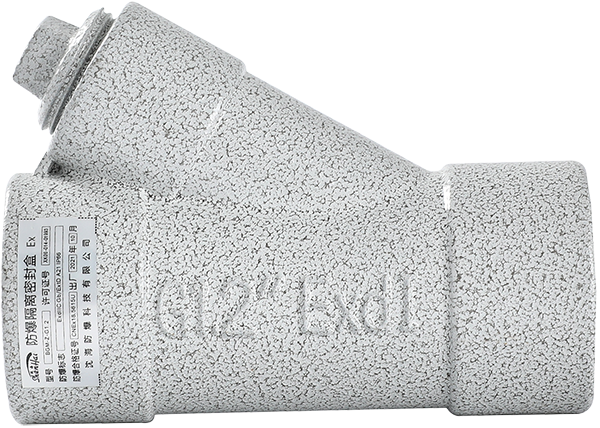

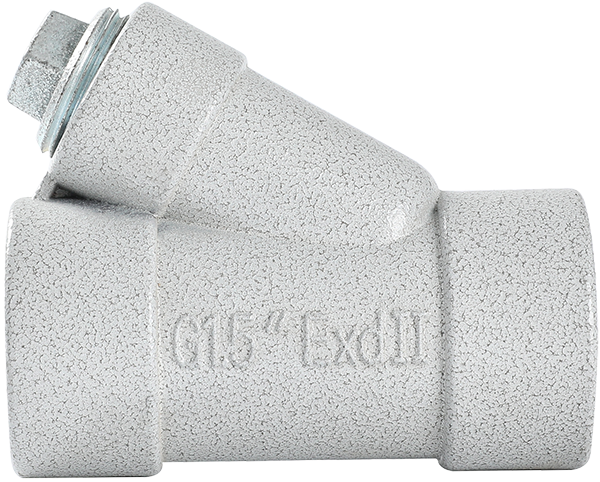

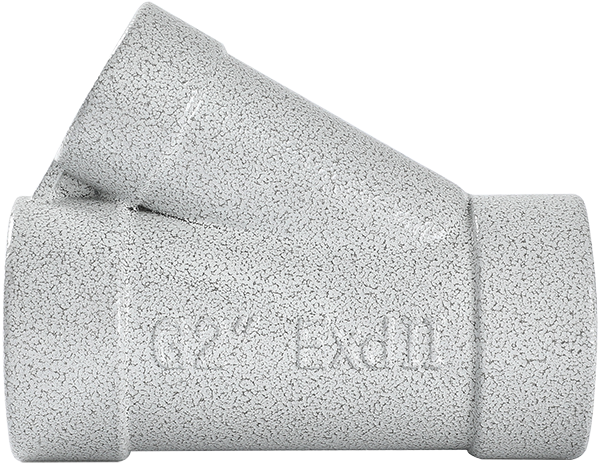

BGM series explosion-proof isolation sealing box

1. Suitable for Zone 1 and Zone 2 explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for explosive dust environments in Zone 21 and Zone 22 locations;

4. Suitable for Class IIIA, IIIB, and IIIC explosive dust environments;

5. Suitable for temperature groups T1~T6;

6.Widely used for clamping and sealing cables in hazardous environments such as oil extraction, refining, chemical, and military industries.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

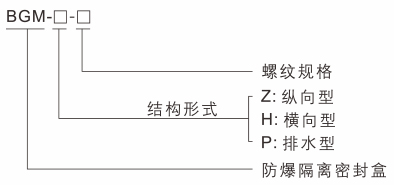

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.3、GB/T 3836.31、IEC60079-0、IEC60079-1、IEC60079-7、IEC60079-31

Features

1. Cast aluminum alloy shell, surface high-voltage electrostatic spraying;

2. The vertical type (Z) has a cast steel shell. Please specify when placing an order if needed;

3. Adopting pipe thread connection, metric thread and NPT thread can be customized;

4. Good sealing and explosion-proof performance;

5. Multiple product specifications to meet on-site installation needs.

6. Explosion proof signs: Ex db Ⅱ C Gb, Ex eb Ⅱ C Gb, Ex tb Ⅲ C Db

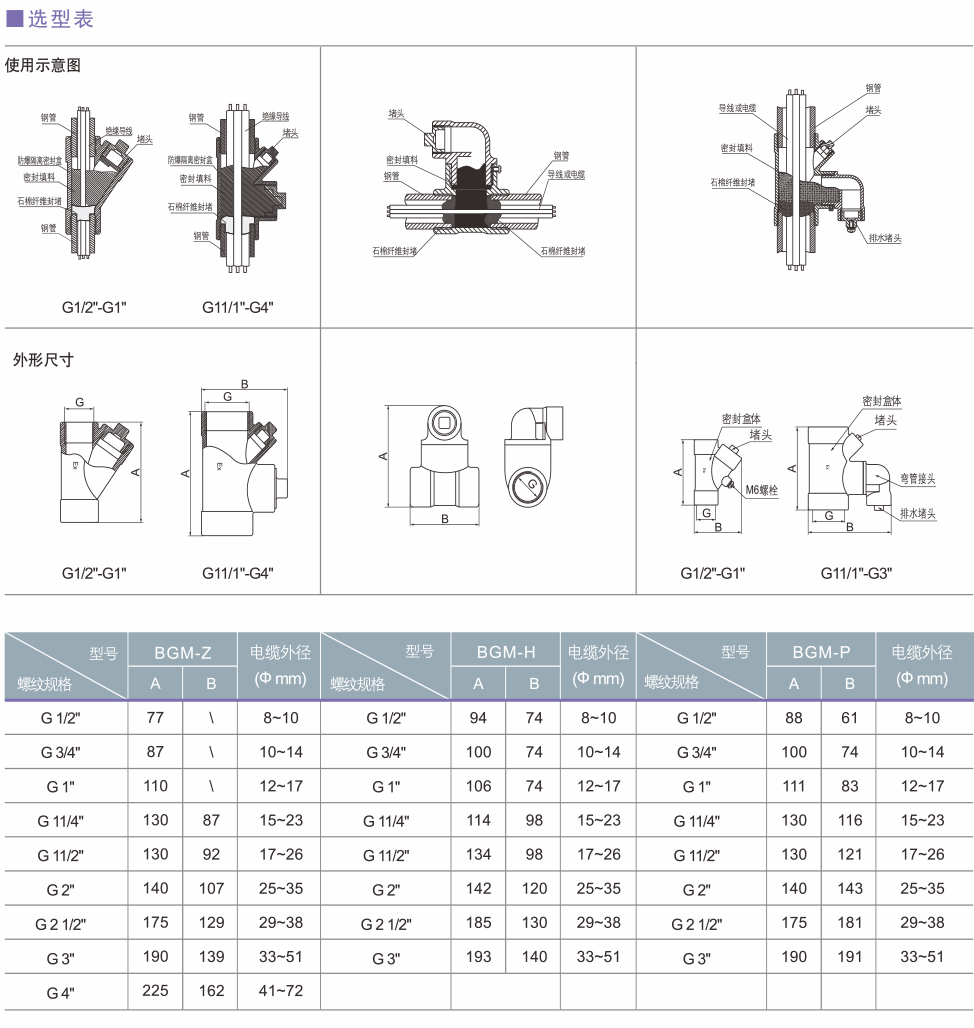

Detailed specifications
