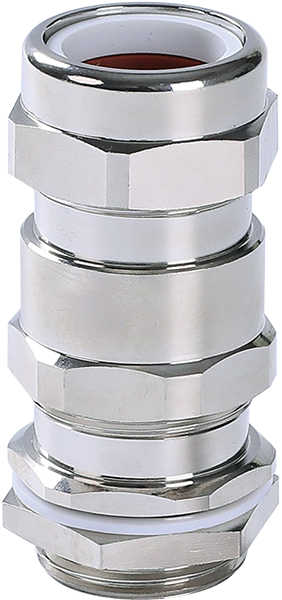

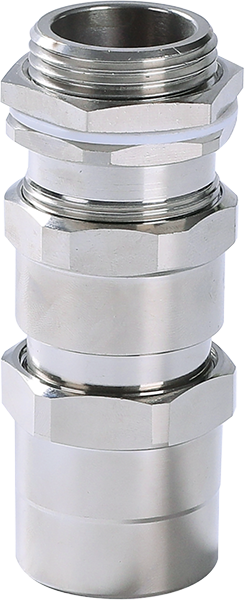

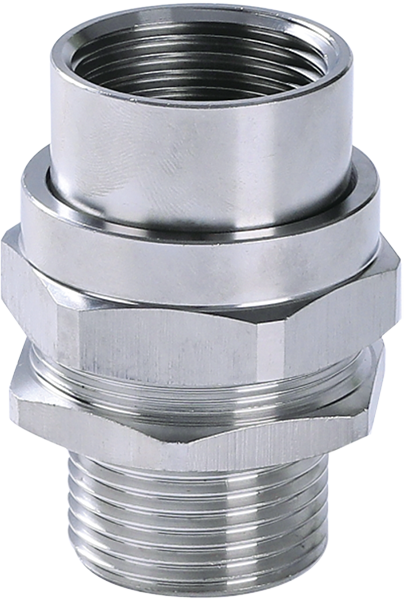

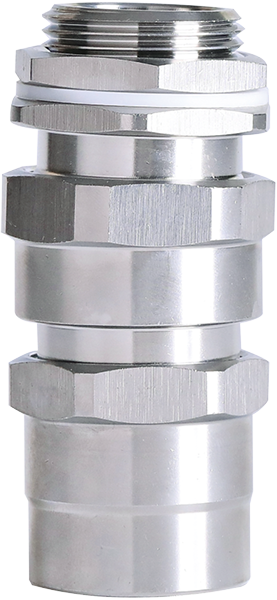

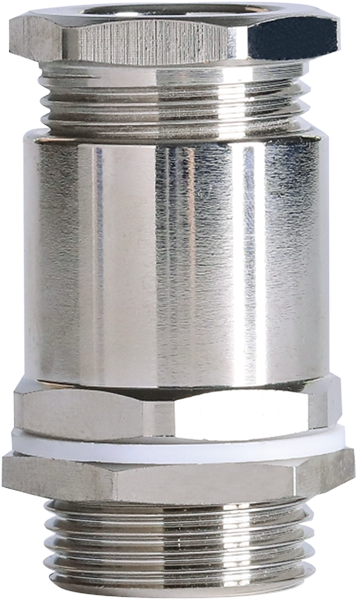

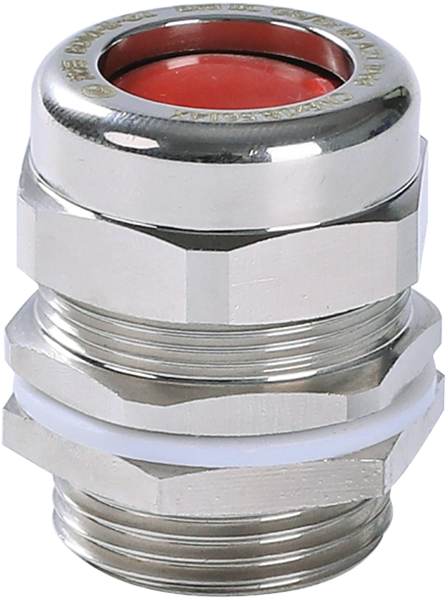

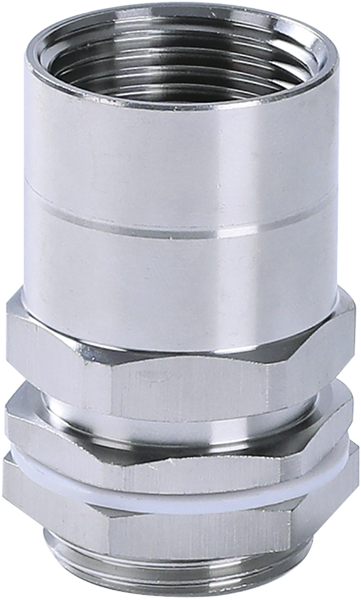

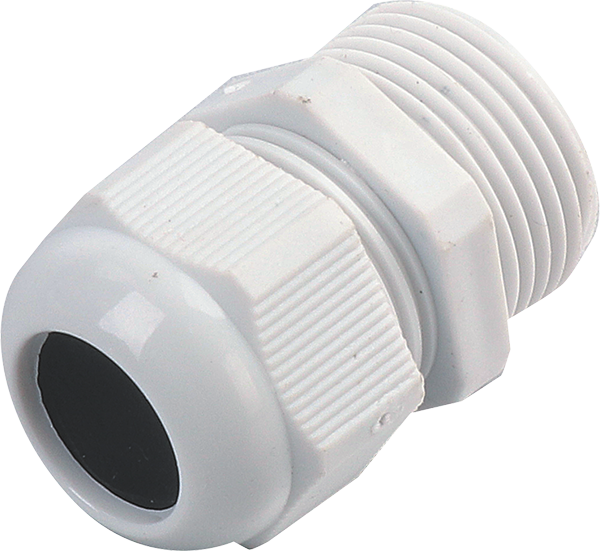

BDM series explosion-proof cable clamping sealing joint

1. Suitable for Zone 1 and Zone 2 explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for explosive dust environments in Zone 21 and Zone 22 locations;

4. Suitable for Class IIIA, IIIB, and IIIC explosive dust environments;

5. Widely used for clamping and sealing cables in hazardous environments such as oil extraction, refining, chemical, and military industries.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

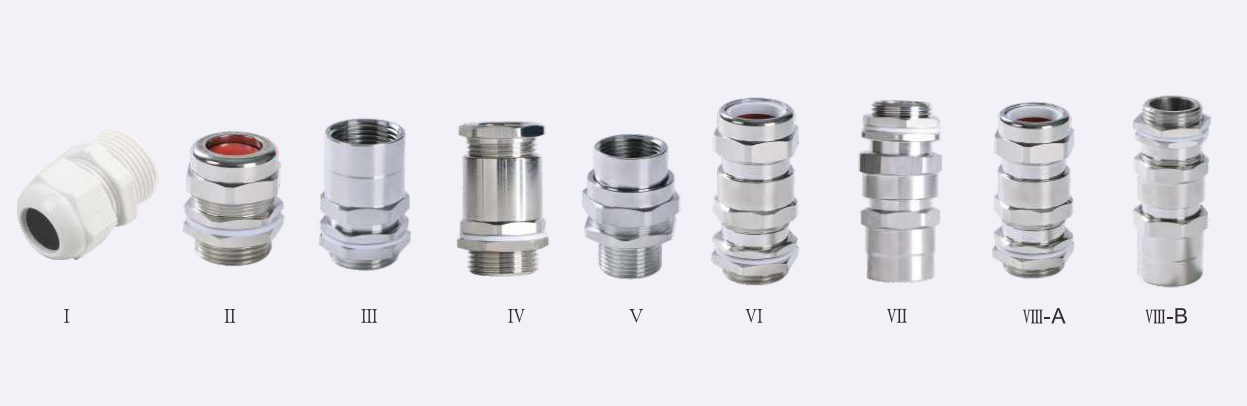

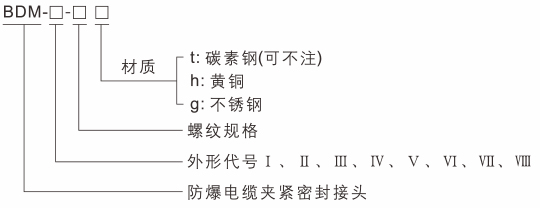

Model meaning


Implementation standards

GB/T3836.1、GB/T3836.2、GB/T3836.3、GB/T3836.31、IEC60079-0、IEC60079-1、IEC60079-7、IEC60079-31

Features

1. Made of high-quality carbon steel, the material can be stainless steel or brass according to user requirements;

2. Thread specifications can be customized according to user requirements or have different specifications at both ends.

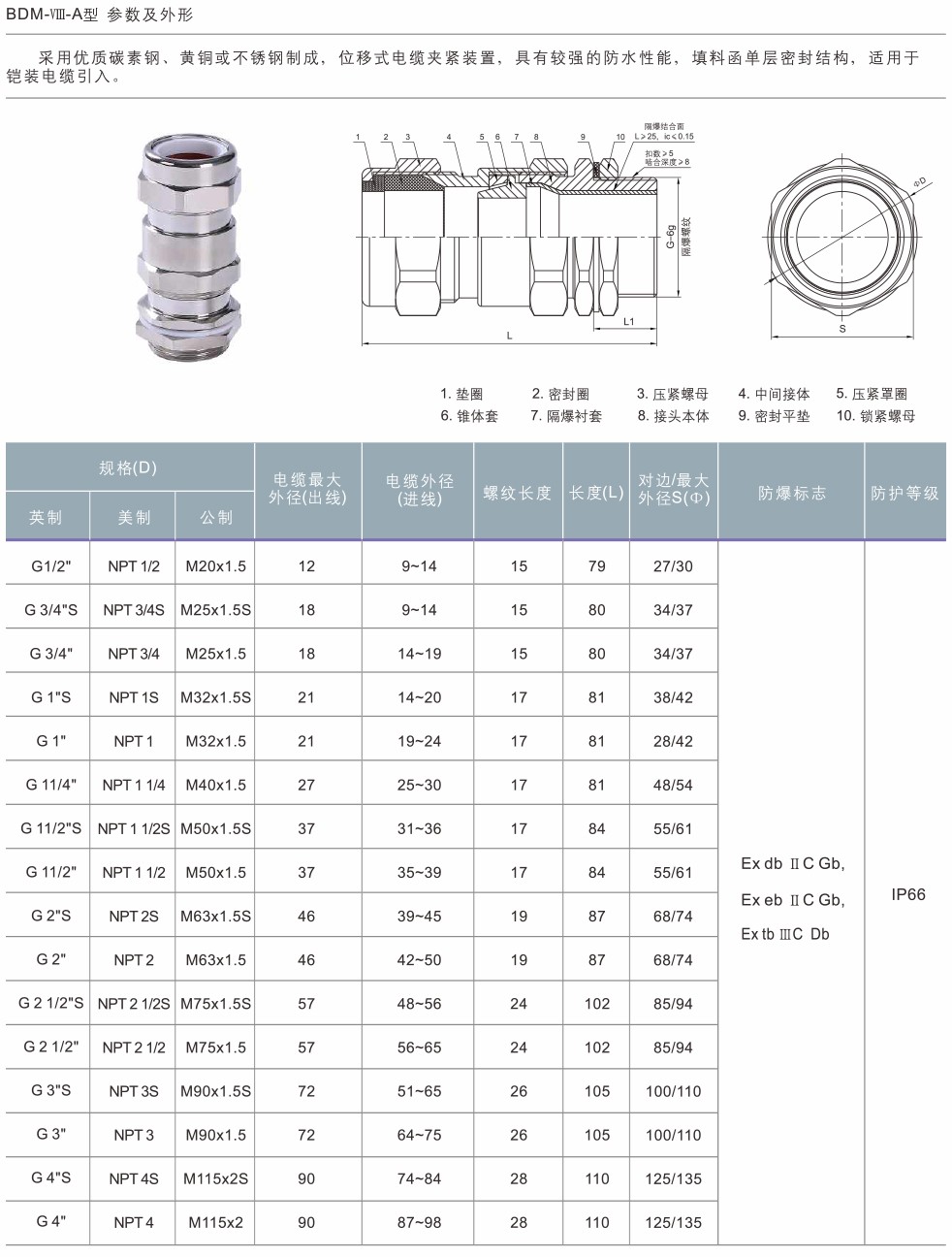

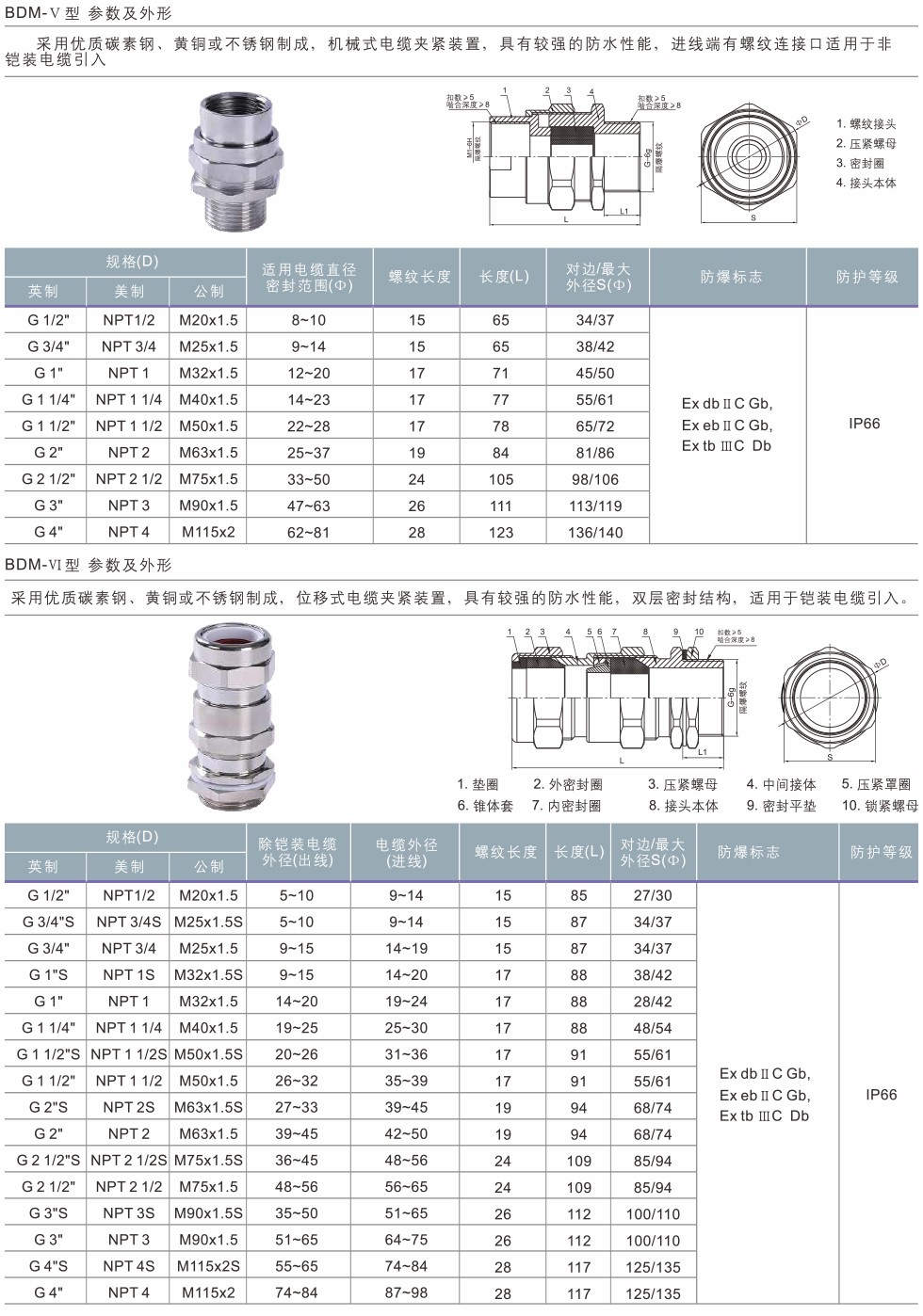

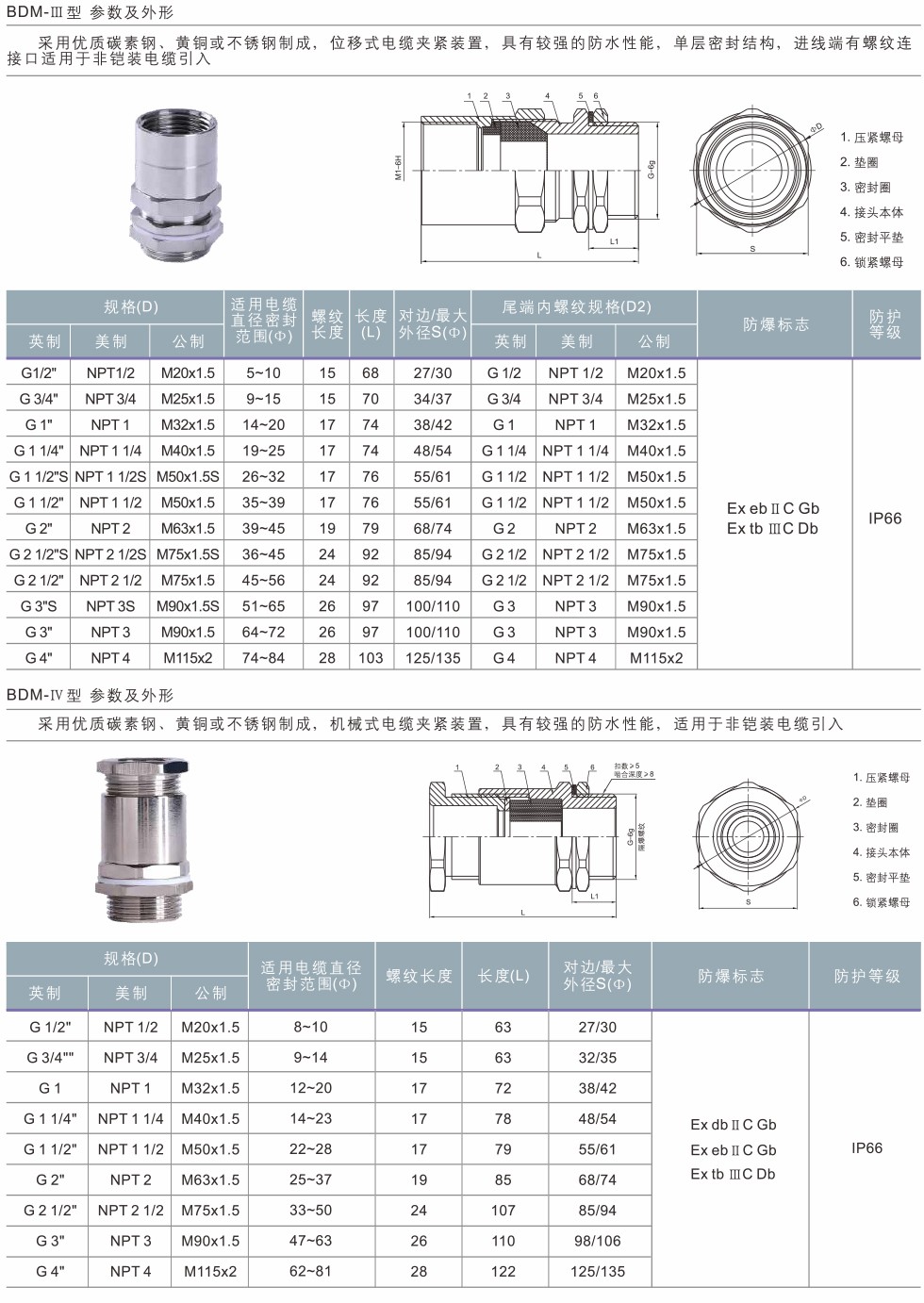

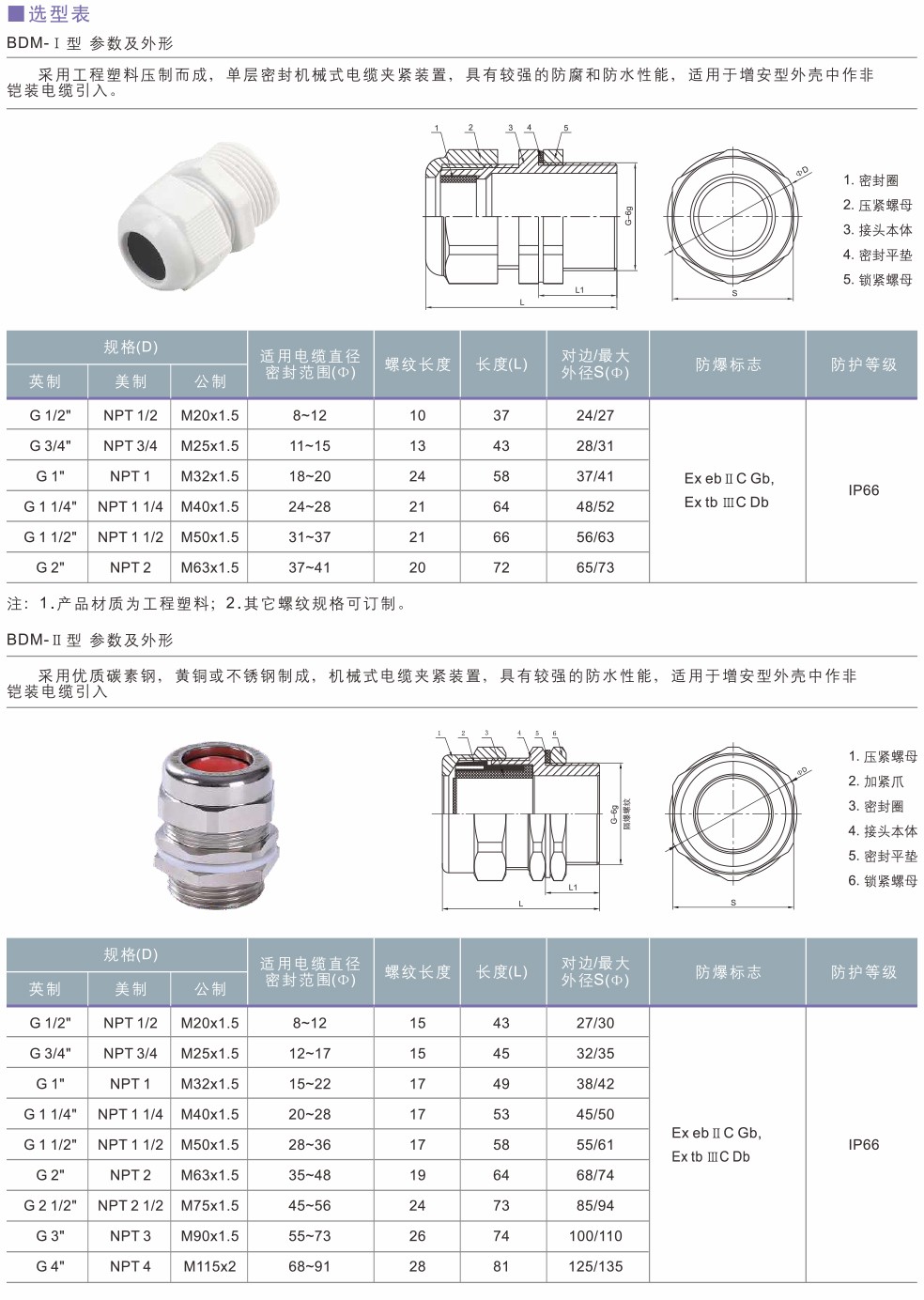

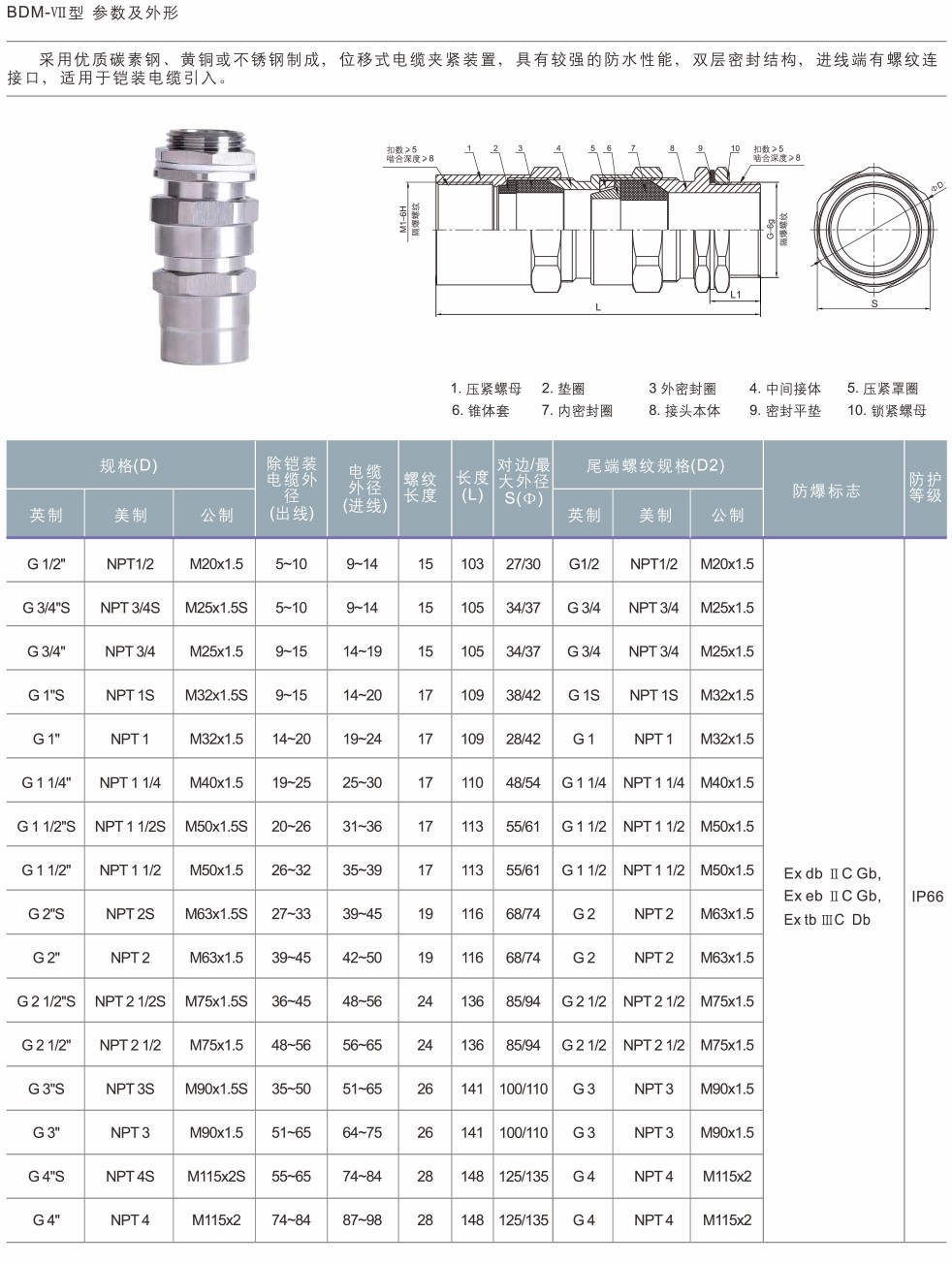

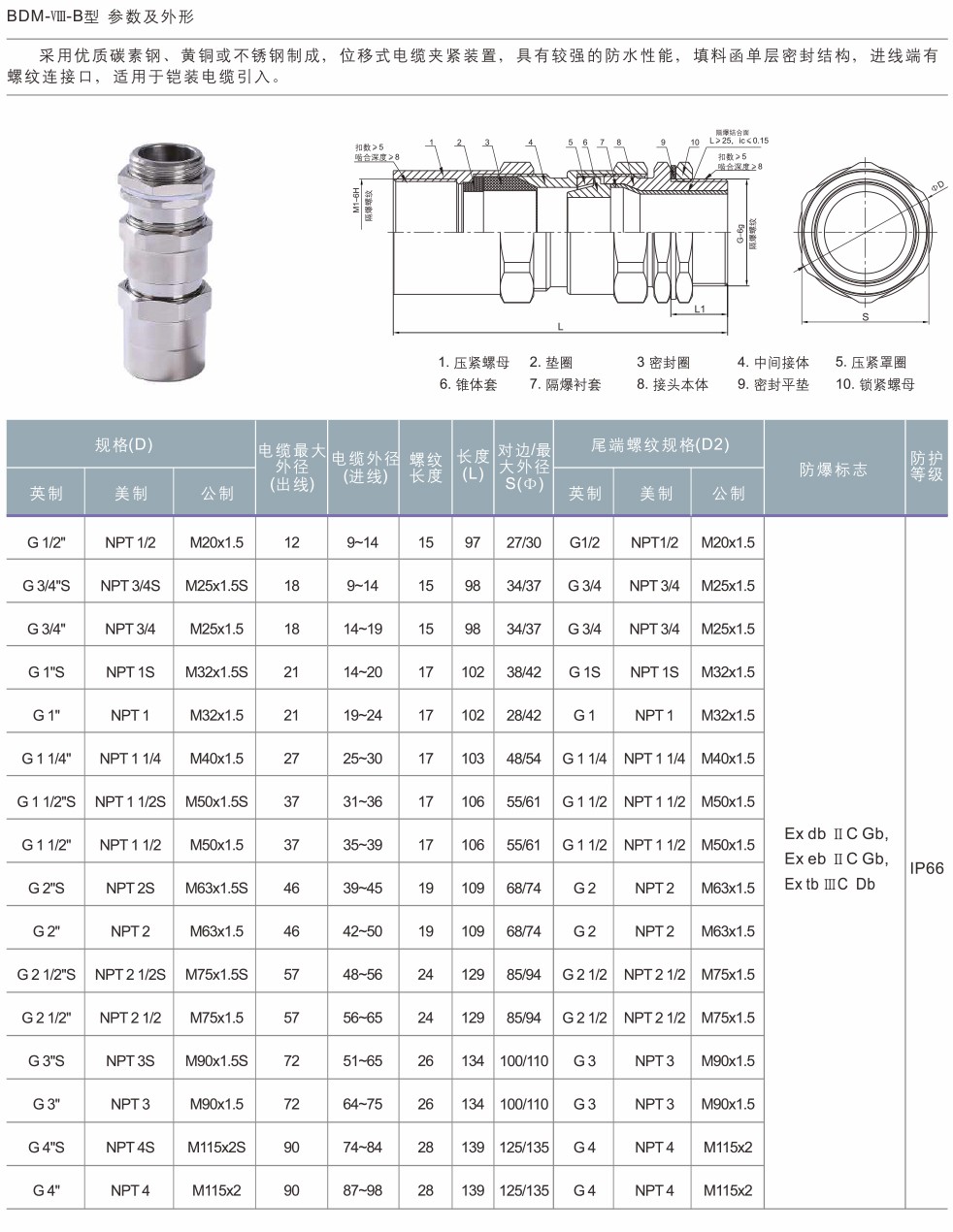

Detailed specifications
