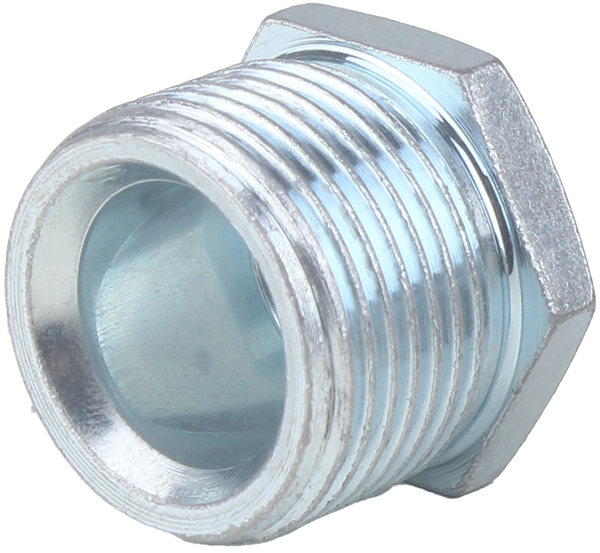

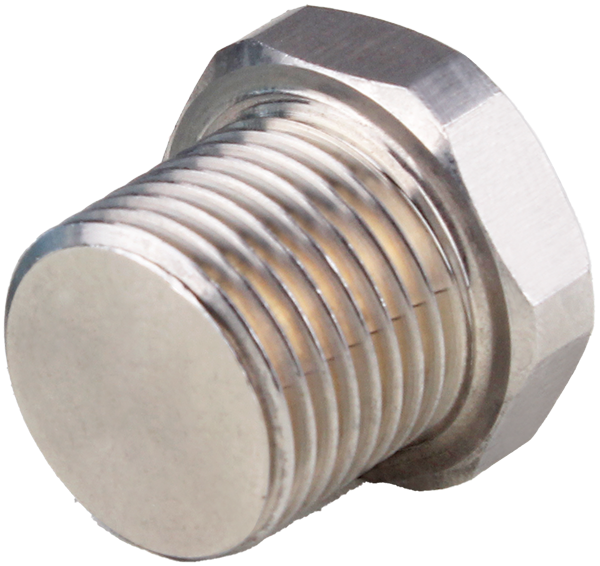

BFSD series explosion-proof plug

1. Suitable for Zone 1 and Zone 2 explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for explosive dust environments in Zone 21 and Zone 22 locations;

4. Suitable for Class IIIA, IIIB, and IIIC explosive dust environments;

5. Widely used for sealing cables in hazardous environments such as oil extraction, refining, chemical, and military industries.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

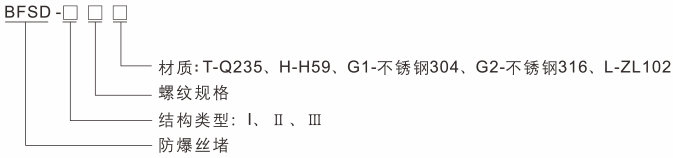

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.3、GB/T 3836.31、IEC60079-0、IEC60079-1、IEC60079-7、IEC60079-31

Features

1. Made of materials such as Q235, H59, 304, 316, ZL102, etc., it has a smooth and shiny appearance and is easy to install and use;

2. Thread specifications can be customized according to user requirements, such as NPT, metric threads, etc.

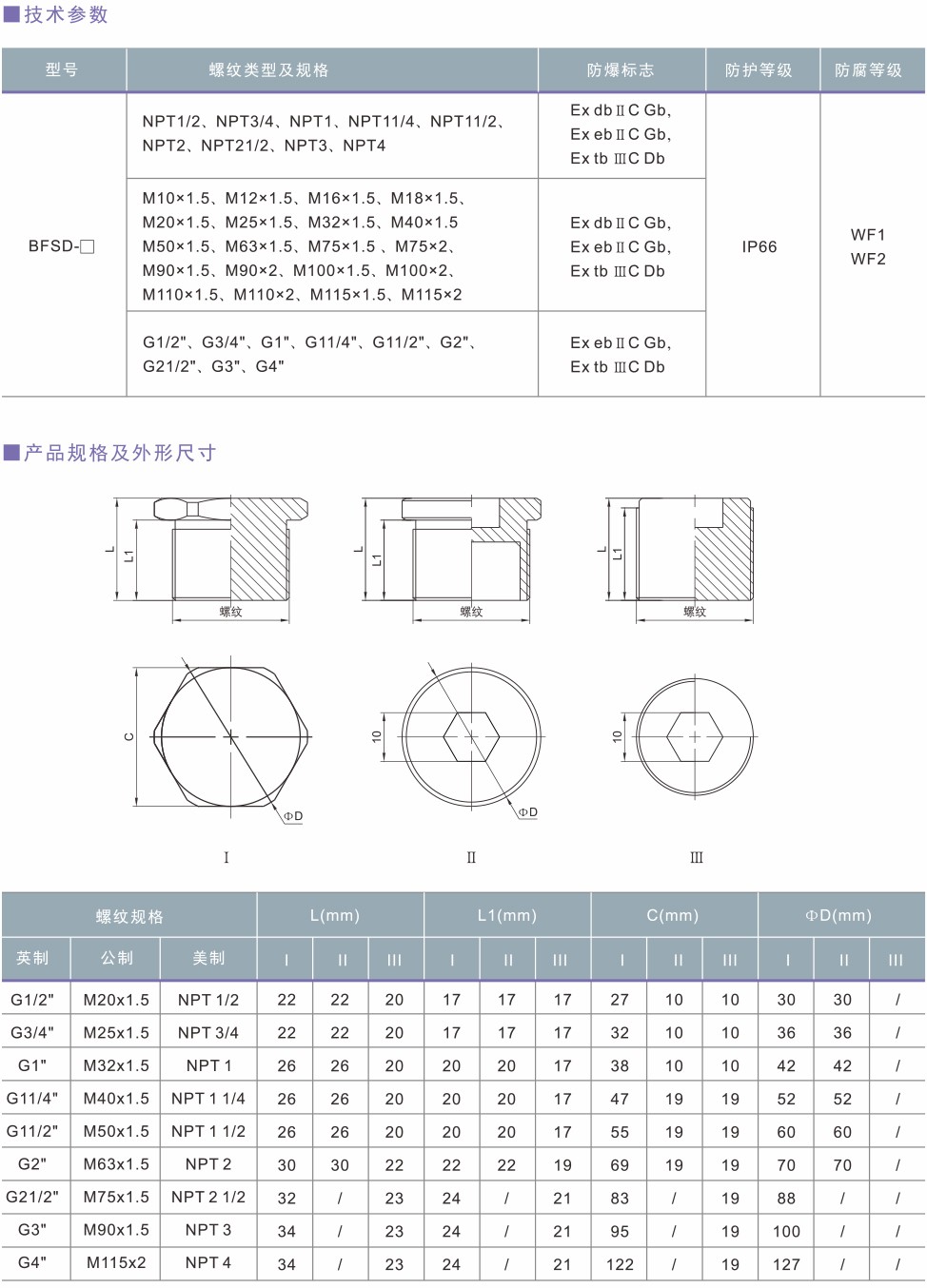

Detailed specifications
