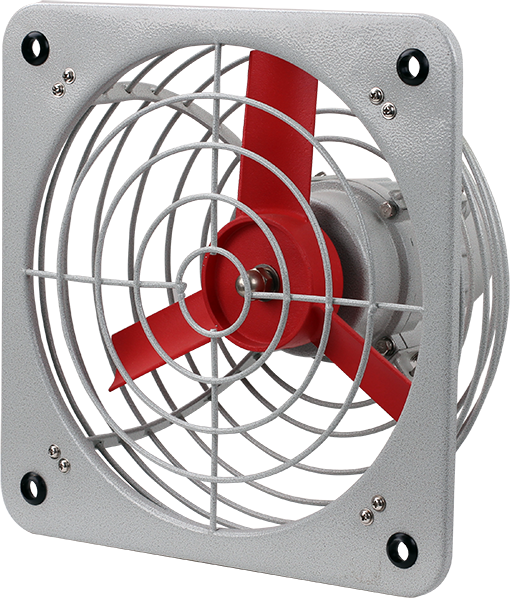

CBF series explosion-proof exhaust fan

1. Suitable for Zone 1 and Zone 2 explosive gas environments;

2. Suitable for Zone 21 and Zone 22 locations with combustible dust environment;

3. Suitable for Class IIA, IIB, and IIC explosive gas environments;

4. Suitable for temperature groups T1-T4;

5. Widely used in hazardous environments such as refining, chemical, textile, and military industries, as well as in offshore oil platforms, oil tankers, and other places;

6. Indoor and outdoor.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

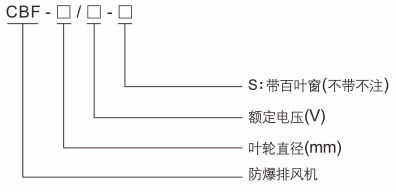

Model meaning


Implementation standards

GB/T 3836.1、GB/T3836.2、GB/T3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-31、EN60079-0、EN60079-1、EN60079-31

Features

1. The design of this series of ventilation fans adopts the three-dimensional flow theory of turbomachinery, and the experimental data is carefully designed to ensure excellent aerodynamic performance of the fans. It has the characteristics of low noise, high efficiency, low vibration, and low energy consumption;

2. The ventilation fan consists of an explosion-proof motor, impeller, air duct, protective cover, louvers, etc;

3. Steel pipe or cable wiring.

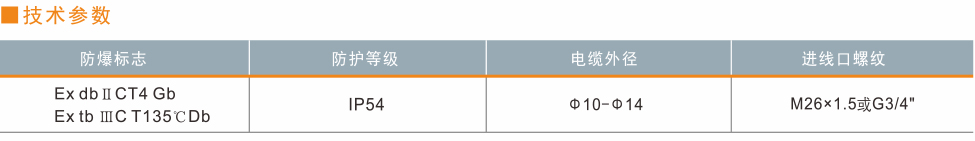

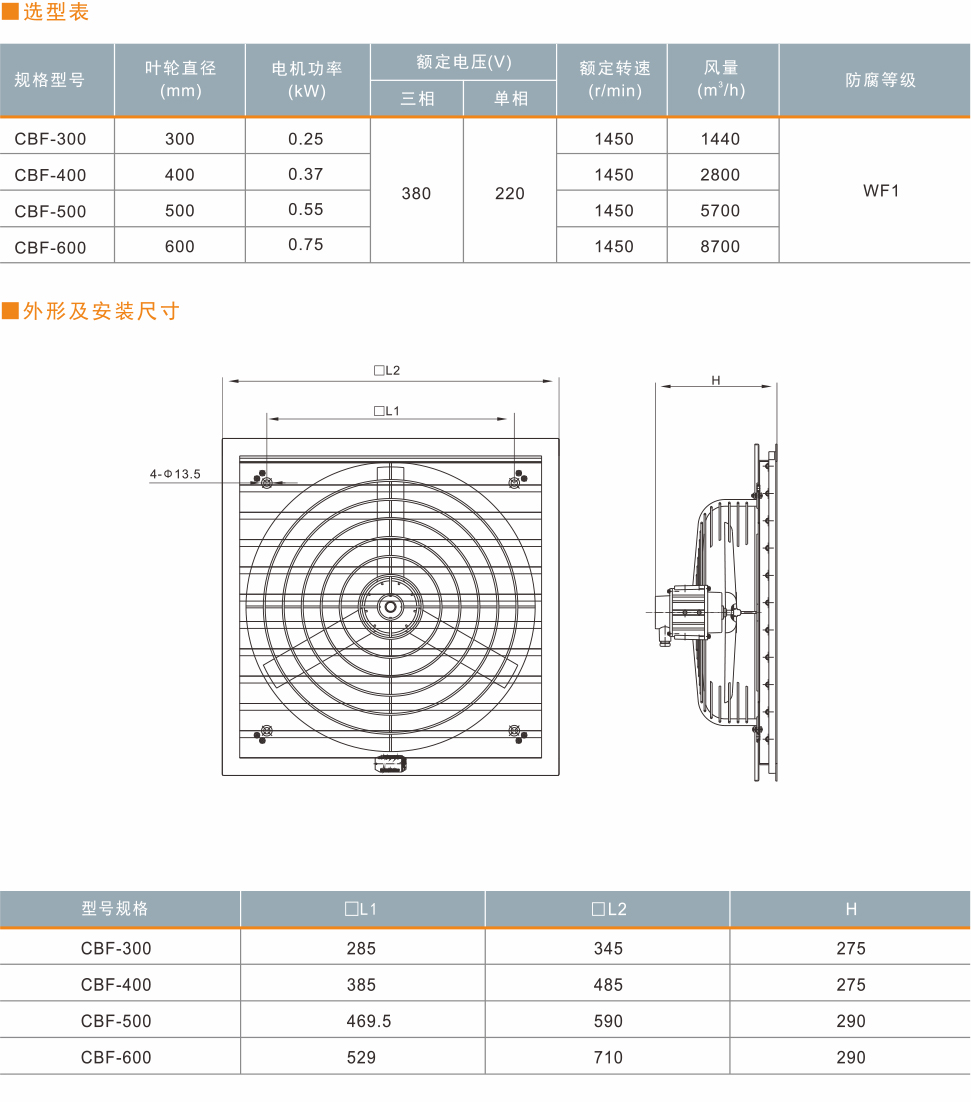

Detailed specifications
