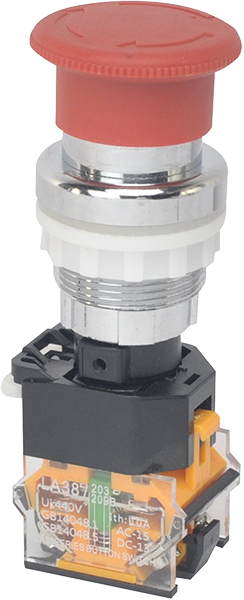

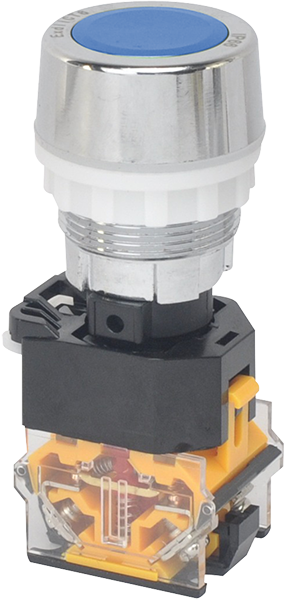

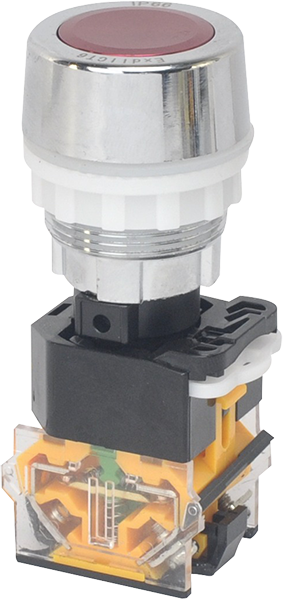

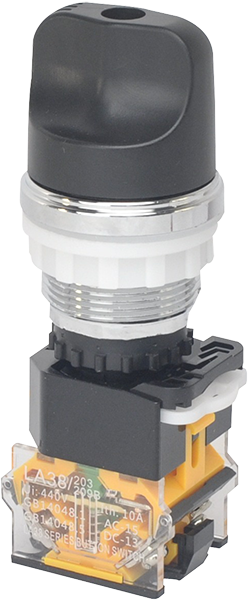

BAN8031 series explosion-proof (anti-corrosion) button
Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

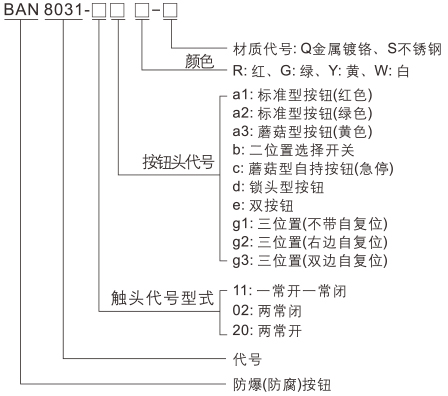

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、IEC 60079-0、IEC 60079-1、EN60079-0、EN60079-1。

Features

1. This device is divided into two parts: the button core body and the button head component;

2. The button head is made of high-quality imported engineering plastic and metal chrome plated or stainless steel injection molded;

3. This device is used in conjunction with all increased safety shells of our company;

4. Cannot be used alone in explosive gas environments;

5. The installation method is top mounted.

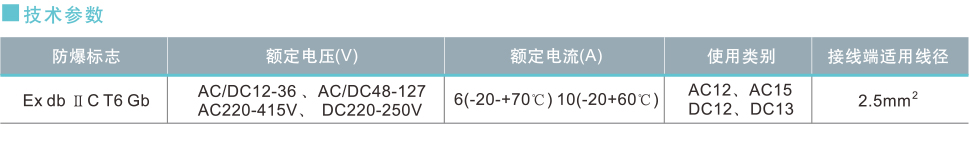

Detailed specifications
