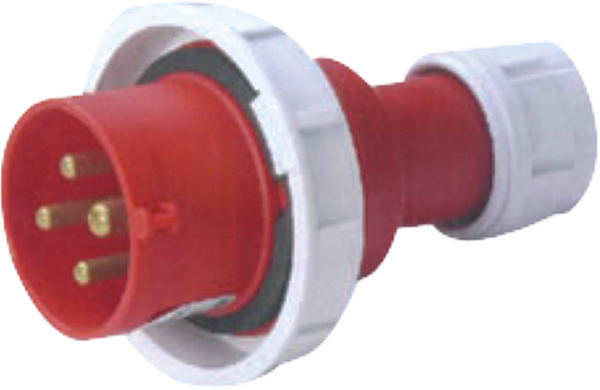

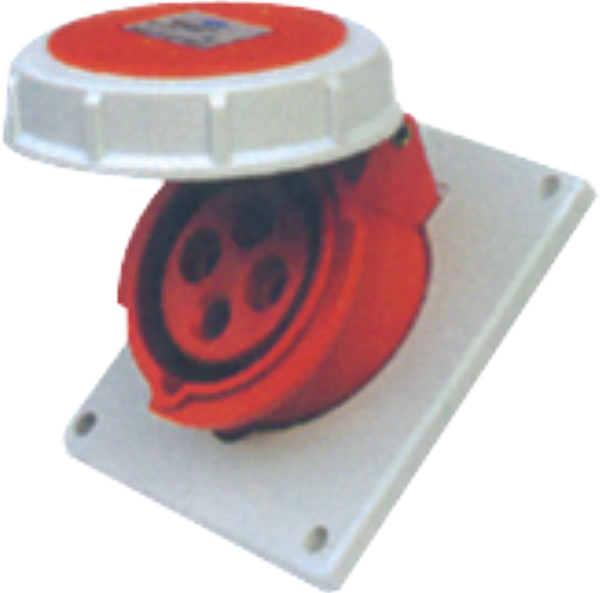

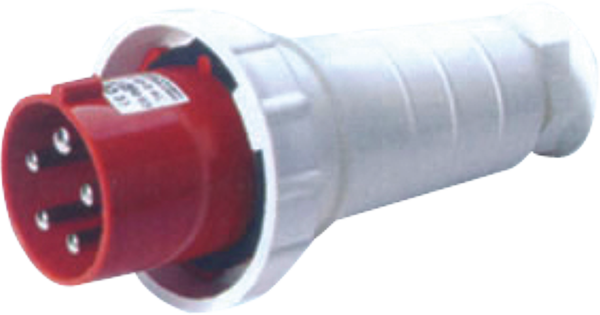

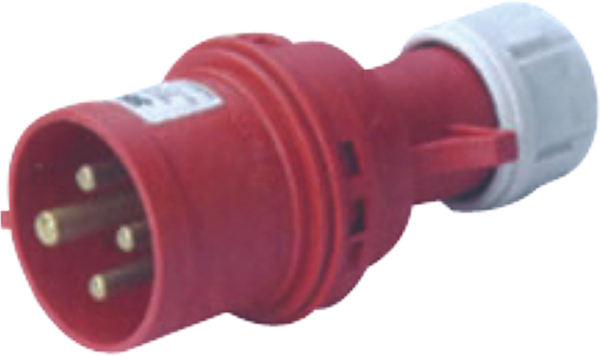

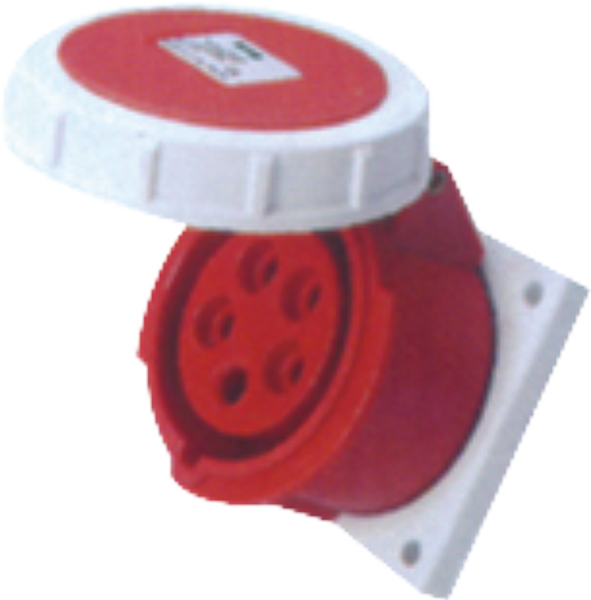

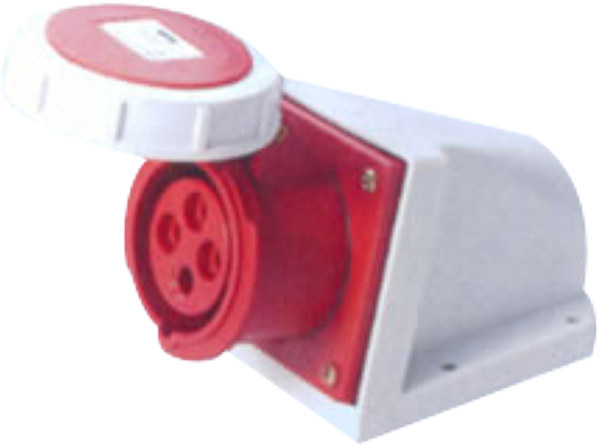

FAC series waterproof, dustproof and anti-corrosion plug

1. Suitable for environments with strong acid, strong alkali, salt, ammonia, gas ion corrosion, high water, high dust, and humidity;

2. Suitable for places such as petroleum, chemical, port, food, medicine, textile, military, etc;

3. Used to connect or disconnect circuits, mostly suitable for mobile devices;

4. There are multiple current specifications and installation methods to choose from.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

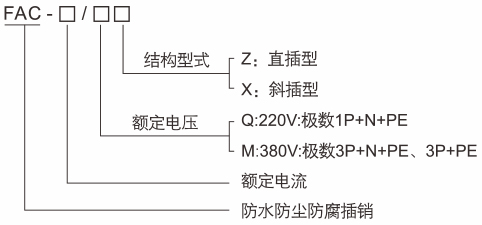

Model meaning


Implementation standards
Features

1. The shell is made of engineering plastic and has excellent properties such as anti-static, impact resistance, corrosion resistance, and good thermal stability;

2. The product is resistant to strong acids, strong alkalis, and salts, and has a corrosion resistance level of WF2;

3. The product has a labyrinth sealing structure with good waterproof and dustproof performance, and the protection level is IP65;

4. All exposed fasteners are made of stainless steel and sealed with silicone rubber, which is oil resistant, acid resistant, alkali resistant and anti-aging;

5. Cable wiring.

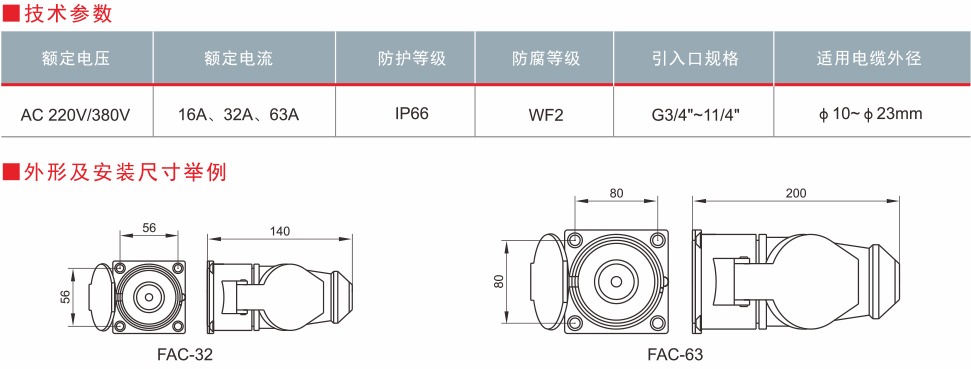

Detailed specifications
