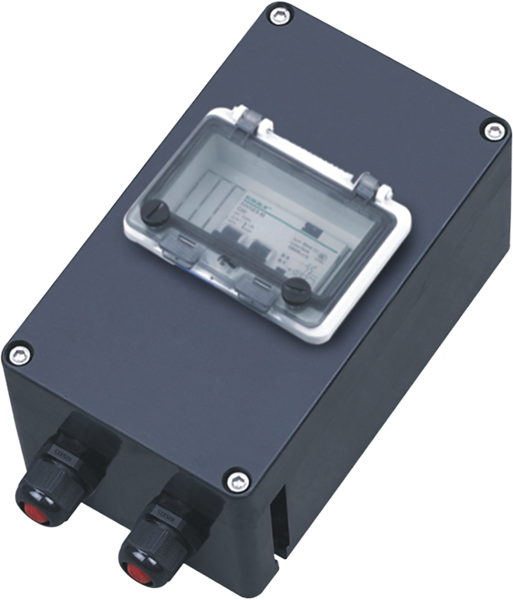

1. The engineering plastic shell is made of glass fiber reinforced unsaturated polyester resin, which has excellent properties such as anti-static, impact resistance, corrosion resistance, and good thermal stability;
2. The stainless steel shell is welded with stainless steel plates, with a brushed surface that looks beautiful and elegant;
3. The aluminum shell is formed by aluminum alloy die-casting, and the surface powder is electrostatically sprayed;
4. The corrosion resistance level of L series products is WF1, while G and S series products are more resistant to strong acids, alkalis, and salts, with a corrosion resistance level of WF2;
5.The L and S series products have a labyrinth sealing structure, while the G series products have a curved sealing structure. Both sealing structures have good waterproof and dustproof performance, with a protection level of IP65;
6. All exposed fasteners are made of stainless steel, sealed silicone rubber, oil resistant, acid resistant, alkali resistant and anti-aging;
7. It is equipped with a high breaking miniature circuit breaker or a molded case circuit breaker, and can be opened and closed by simply opening the transparent waterproof window on the shell cover during operation;
8. It has overload and short circuit protection functions, and can produce products with leakage protection function according to user requirements;
9. Can be used for distribution or switching of lighting circuits or power circuits;
10. This product generally uses cable wiring. If steel pipe wiring is required, please specify separately. N can be specially manufactured according to user requirements.
