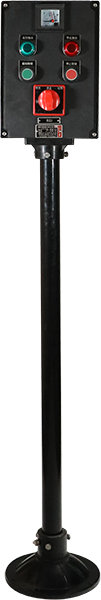

FZC series waterproof, dustproof and anti-corrosion operating column

1. Suitable for environments with strong acid, strong alkali, salt, ammonia, gas ion corrosion, high water, high dust, and humidity;

2. Suitable for places such as petroleum, chemical, port, food, medicine, textile, military, etc;

3. Used in electrical control systems for instruction transmission and status monitoring;

4. This product has various solutions and can be produced according to the electrical system diagram provided by the user.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

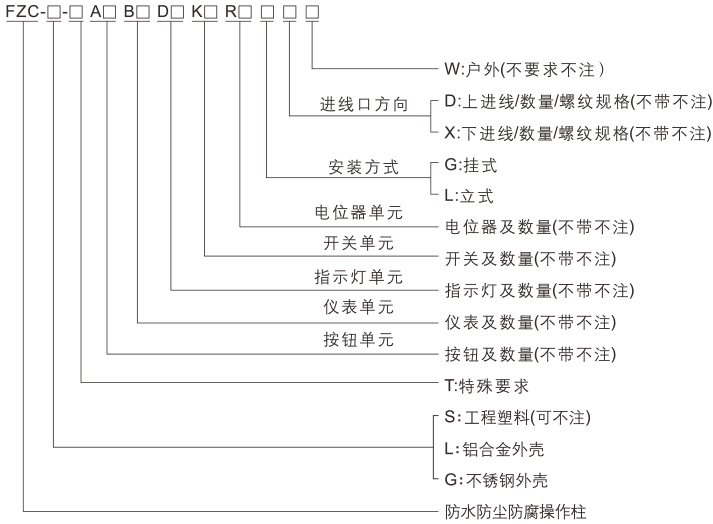

Model meaning


Implementation standards

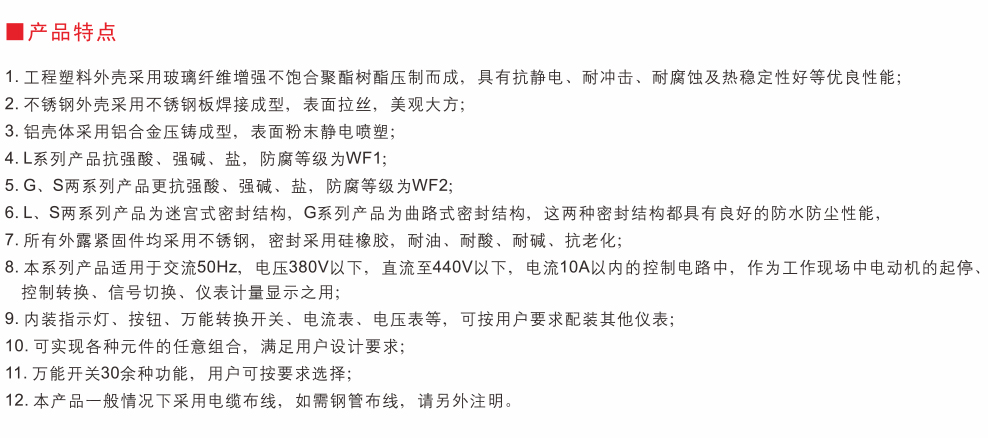

Features

1. The engineering plastic shell is made of glass fiber reinforced unsaturated polyester resin, which has excellent properties such as anti-static, impact resistance, corrosion resistance, and good thermal stability;

2. The stainless steel shell is welded with stainless steel plates, with a brushed surface that looks beautiful and elegant;

3. The aluminum shell is formed by aluminum alloy die-casting, and the surface powder is electrostatically sprayed;

4. The L series products are resistant to strong acids, strong alkalis, and salts, with a corrosion resistance level of WF1;

5. The G and S series products are more resistant to strong acids, alkalis, and salts, with a corrosion resistance level of WF2;

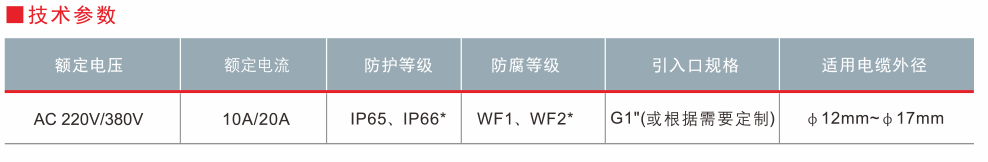

Detailed specifications
