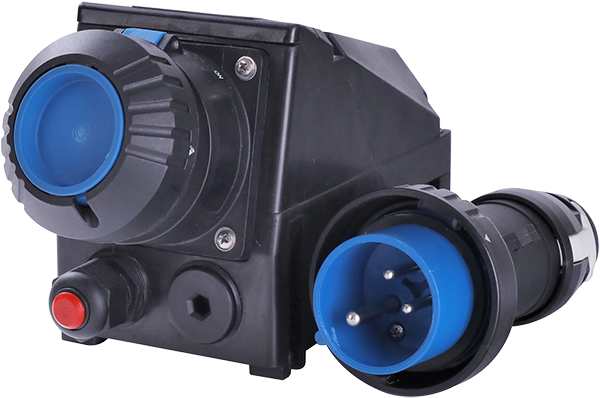

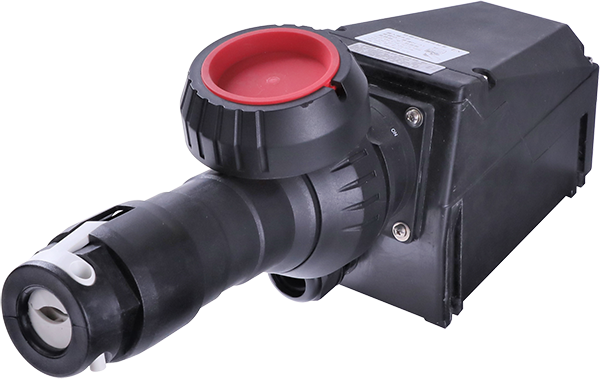

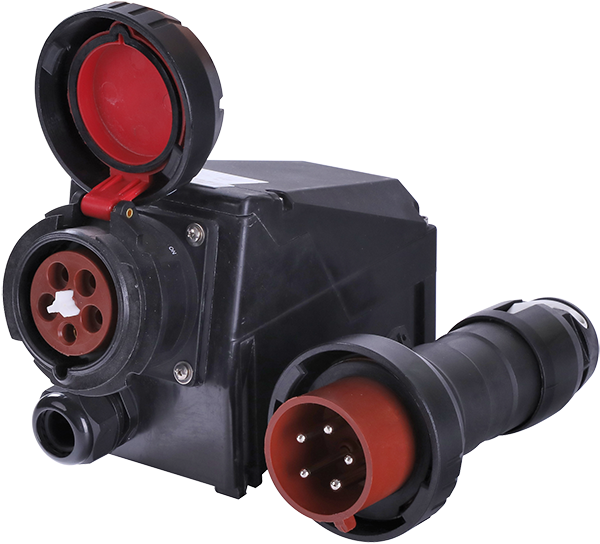

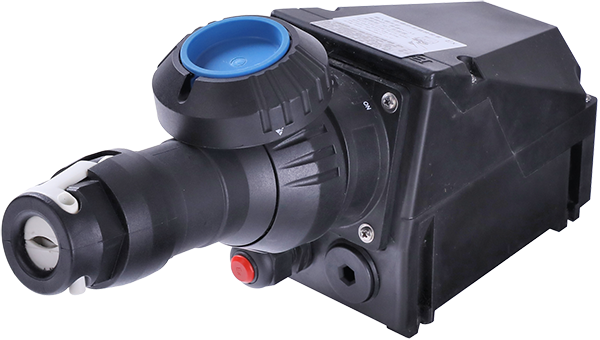

BCZ8030 series explosion-proof and anti-corrosion plug

1. Suitable for Zone 1 and Zone 2 explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for explosive dust environments in Zone 21 and Zone 22 locations;

4. Suitable for Class IIIA, IIIB, and IIIC explosive dust environments;

5. Suitable for temperature groups T1~T6;

6. Suitable for hazardous environments such as oil extraction, refining, chemical, military, offshore oil platforms, oil tankers, metal processing, etc;

7. Suitable for places with high corrosion requirements.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

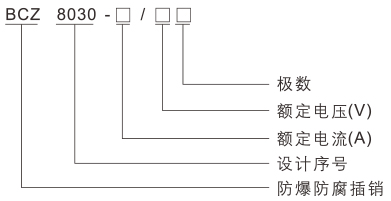

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.3、GB/T 3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-7、IEC 60079-31

Features

1. The shell is made of glass fiber reinforced unsaturated polyester resin compression or high-quality stainless steel welding, which is corrosion-resistant, anti-static, impact resistant, and has good thermal stability;

2. Stainless steel exposed fasteners with high anti-corrosion performance;

3. The shell is of increased safety type, and the interior is equipped with explosion-proof switches;

4. Connect the plug to the electrical equipment;

5. The socket is equipped with a reliable mechanical interlocking device, which means that the switch can only be closed after the plug is inserted into the socket, and the plug can only be pulled out after the switch is disconnected;

6. The socket is equipped with a protective cover. After the plug is pulled out, the socket is covered with the protective cover to prevent debris from entering;

7. Steel pipes or cables can be used for wiring.

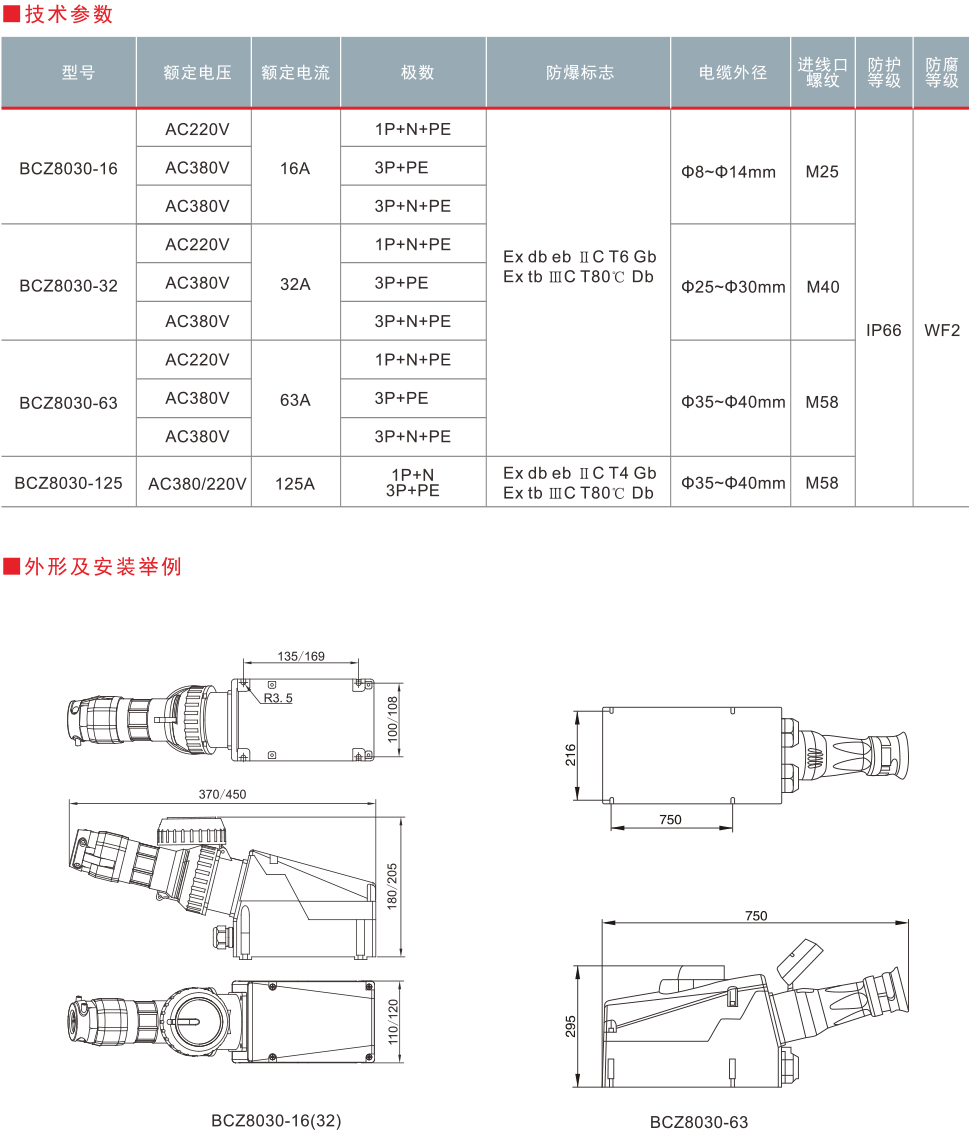

Detailed specifications
