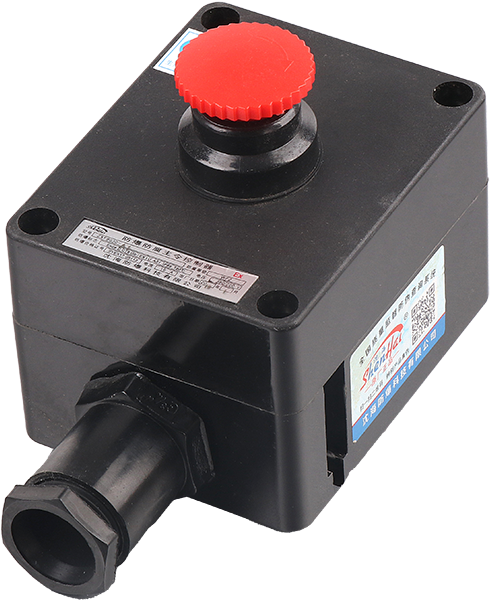

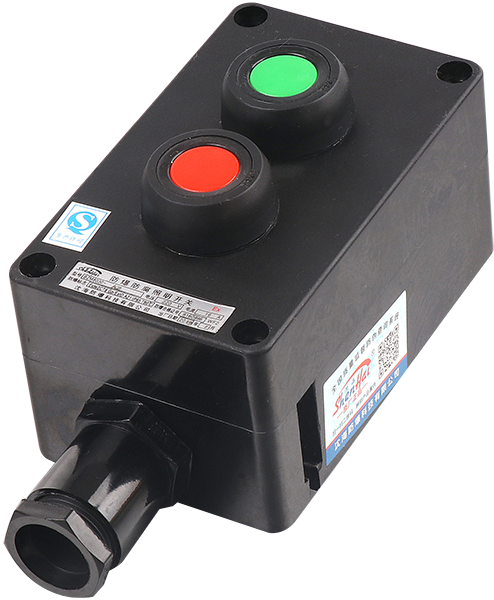

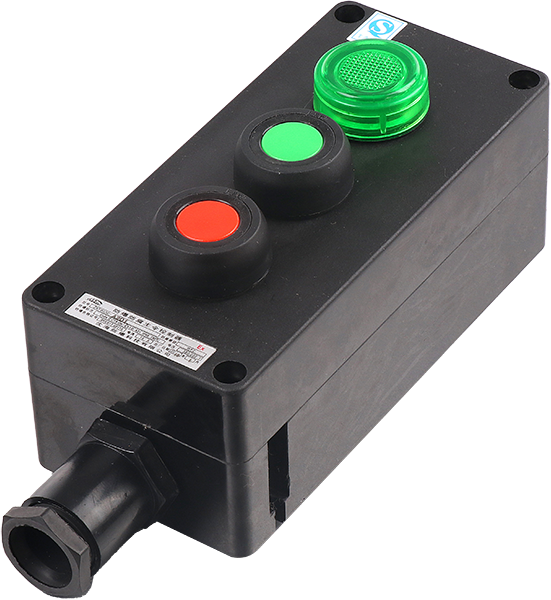

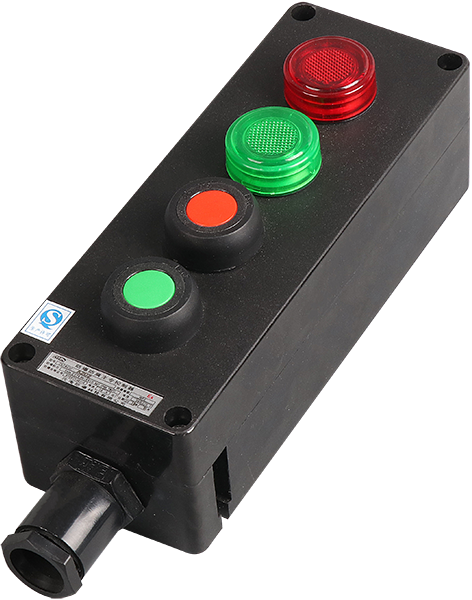

ZXF8030 series explosion-proof and anti-corrosion master controller

1. Suitable for Zone 1 and Zone 2 explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for explosive dust environments in Zone 21 and Zone 22 locations;

4. Suitable for Class IIIA, IIIB, and IIIC explosive dust environments;

5. Suitable for temperature groups T1~T6;

6. Suitable for hazardous environments such as oil extraction, refining, chemical industry, military industry, offshore oil platforms, oil tankers, military industry, metal processing, etc.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

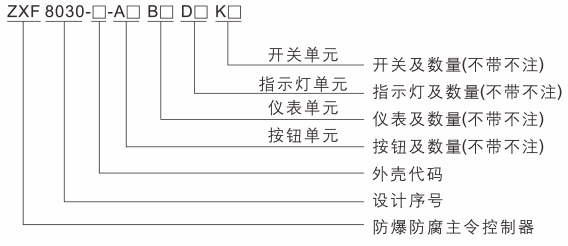

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.3、GB/T 3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-7、IEC 60079-31

Features

1. The shell is made of glass fiber reinforced unsaturated polyester resin compression or high-quality stainless steel welding, which is corrosion-resistant, anti-static, impact resistant, and has good thermal stability;

2. Stainless steel exposed fasteners with high anti-corrosion performance;

3. This series of products adopts an increased safety shell and is equipped with explosion-proof components such as explosion-proof indicator lights, explosion-proof buttons, and conversion switches;

4. The shell and cover adopt a curved sealing structure, which has good waterproof and dustproof performance;

5. Components inside the shell can be arranged freely according to user requirements;

6. Steel pipes or cables can be used for wiring.

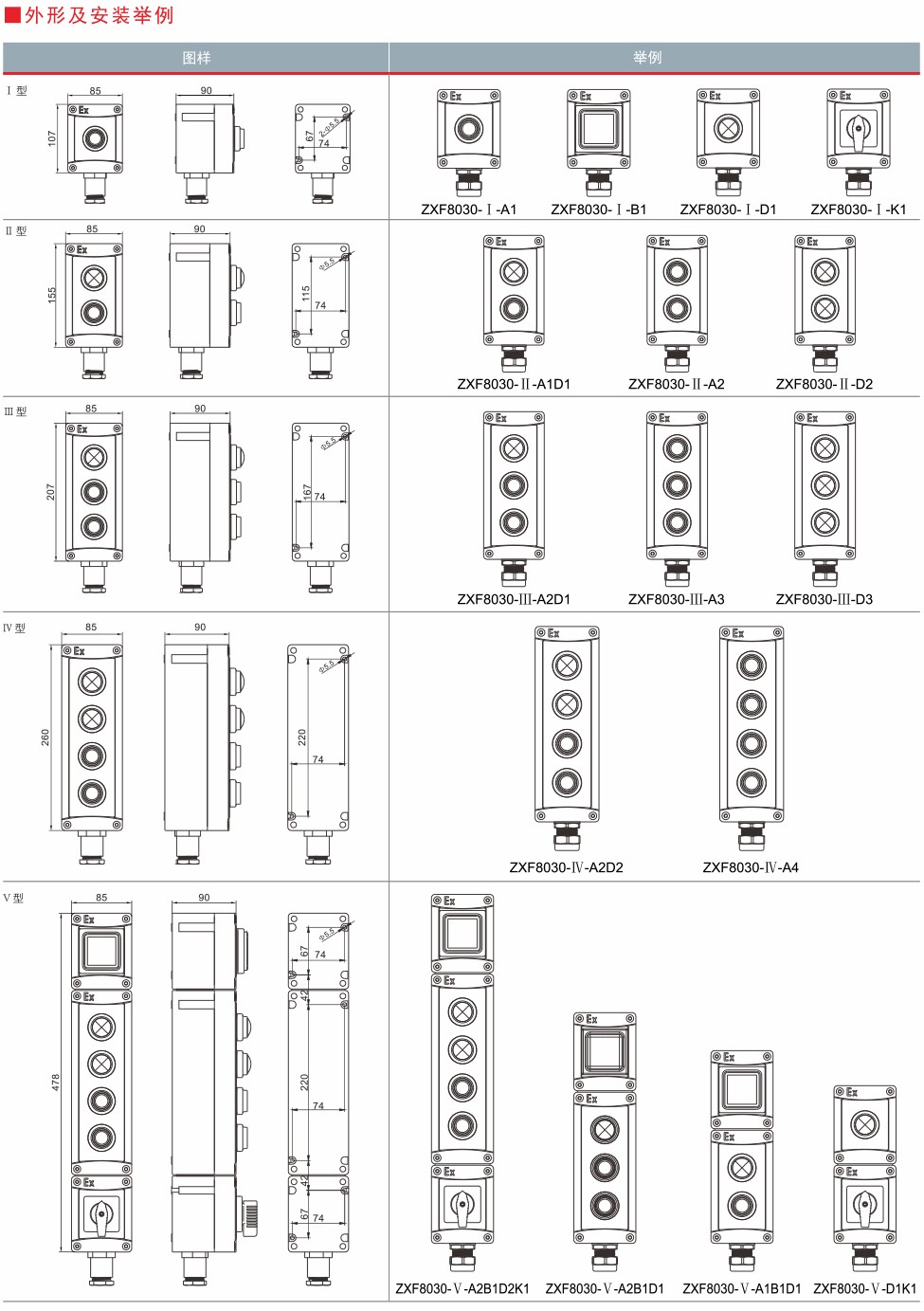

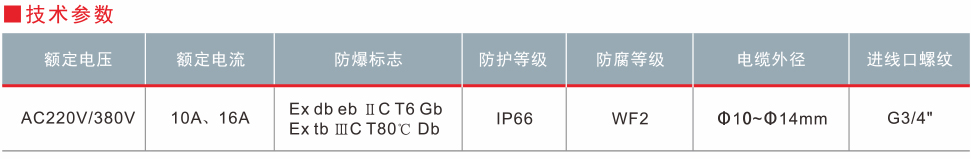

Detailed specifications
