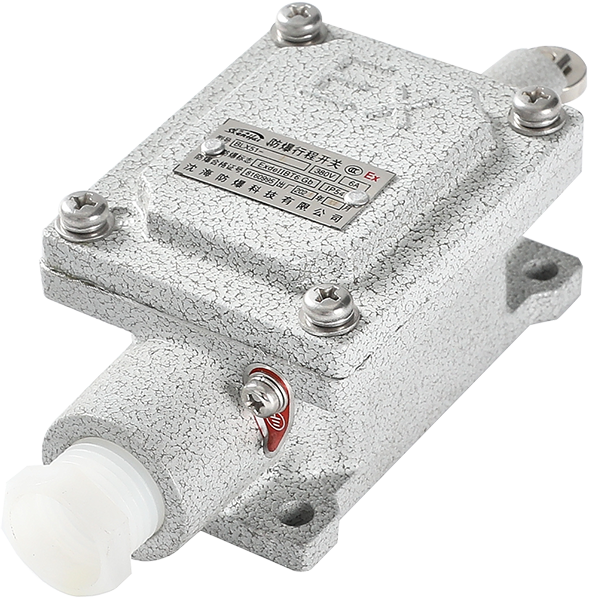

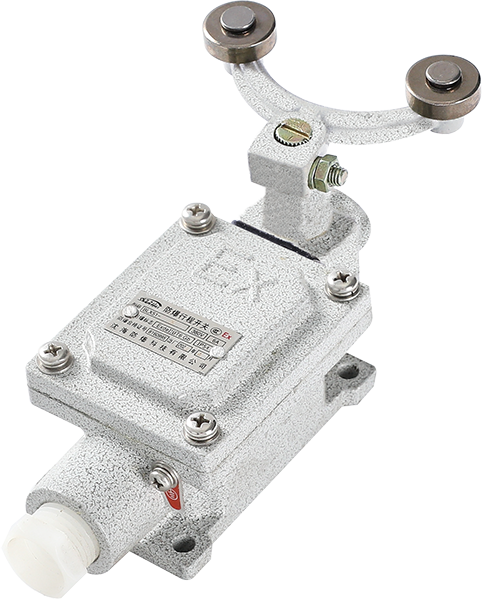

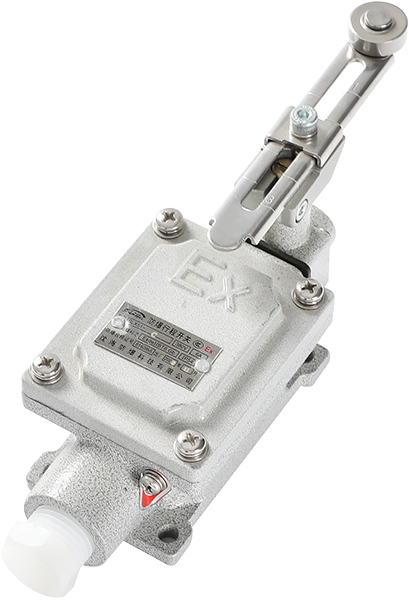

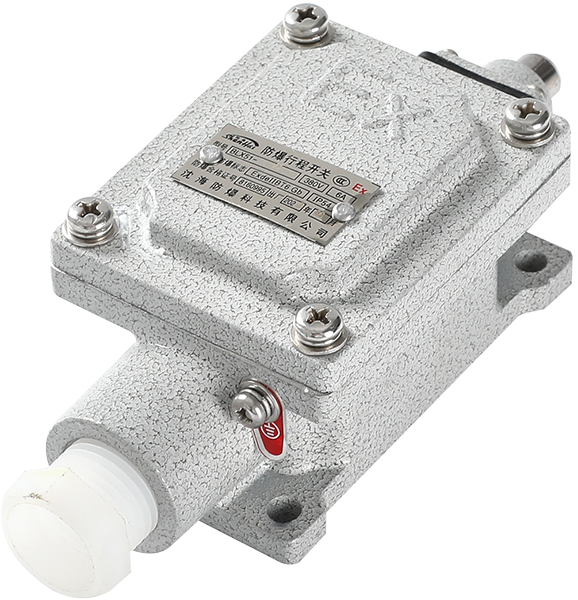

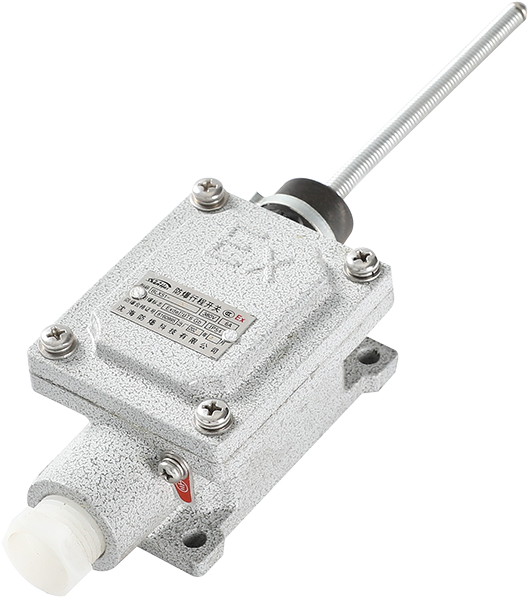

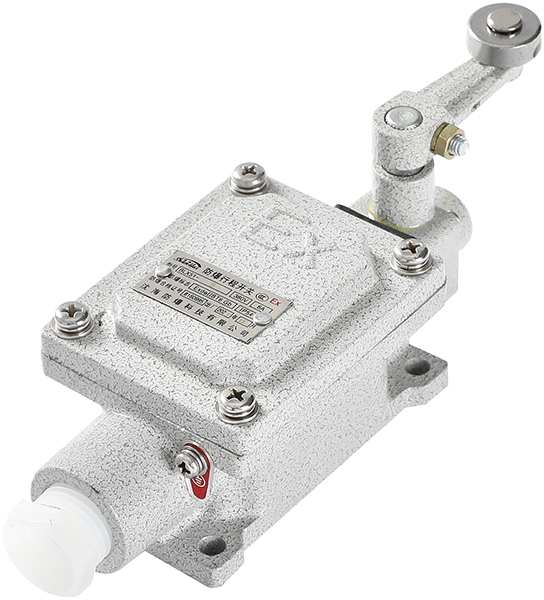

BLX51 series explosion-proof travel switch

1. Suitable for Zone 1 and Zone 2 explosive gas environments;

2. Suitable for Class IIA and IIB explosive gas environments;

3. Suitable for explosive dust environments in Zone 21 and Zone 22 locations;

4. Suitable for Class IIIA, IIIB, and IIIC explosive dust environments;

5. Suitable for temperature groups T1~T6;

6. Suitable for position signal feedback in electrical control systems in hazardous environments such as oil extraction, refining, chemical, military, offshore oil platforms, oil tankers, metal processing, pharmaceuticals, textiles, printing and dyeing.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

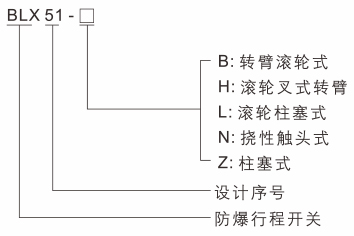

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.31EN60079-0、EN60079-1、EN60079-31。


Features

1. Aluminum alloy die-casting shell, after high-speed shot peening, the surface is coated with high-voltage electrostatic spraying, which is corrosion resistant and anti-aging.

2. Stainless steel exposed fasteners have high anti-corrosion performance.

3. The product consists of an explosion-proof shell, an increased safety wiring chamber, and a small travel switch.

4. Steel pipes or cables can be used for wiring.

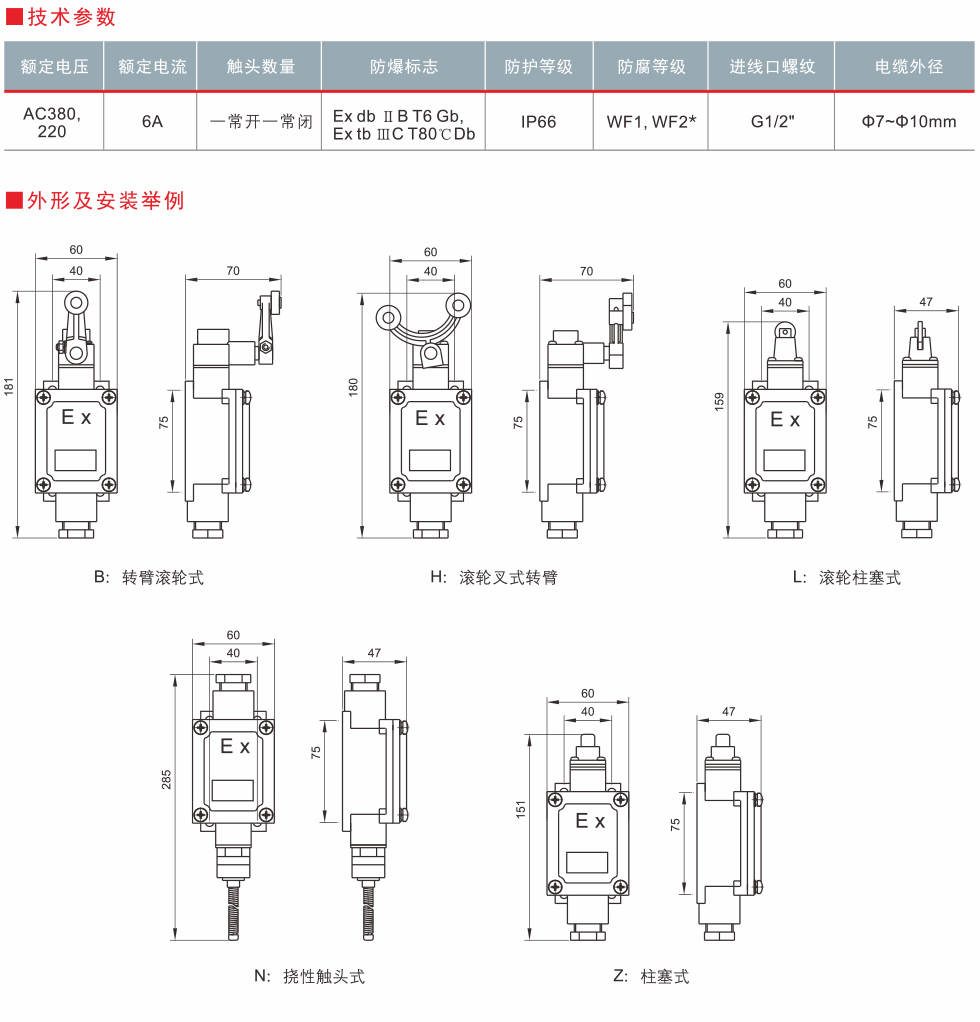

Detailed specifications
