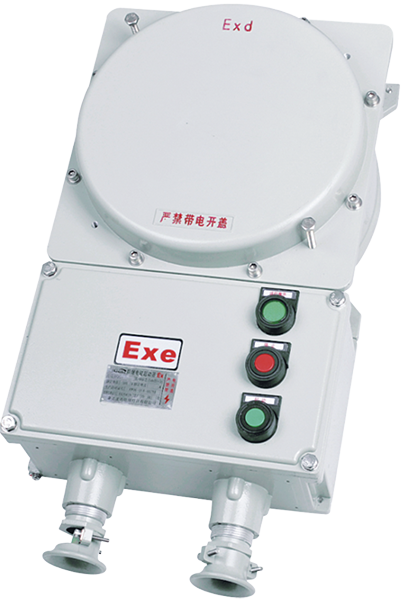

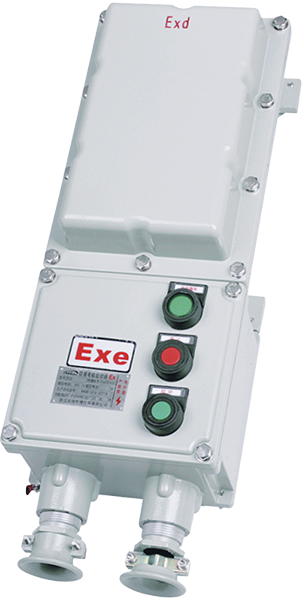

BQC series explosion-proof electromagnetic starter

1. Suitable for Zone 1 and Zone 2 explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for explosive dust environments in Zone 21 and Zone 22 locations;

4. Suitable for Class IIIA, IIIB, and IIIC explosive dust environments;

5. Suitable for temperature groups T1~T6;

6. Suitable for infrequent starting and stopping of three-phase asynchronous motors in hazardous environments such as oil extraction, refining, chemical, military, offshore oil platforms, oil tankers, and metal processing.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

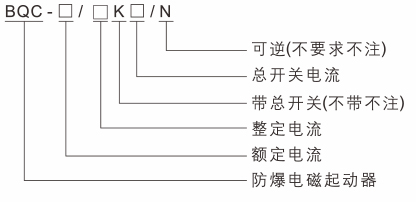

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.3、GB/T 3836.31、IEC60079-0、IEC60079-1、IEC60079-7、IEC60079-31

Features

1. Aluminum alloy die-casting shell, after high-speed shot peening, the surface is coated with high-voltage electrostatic spraying, which is corrosion resistant and anti-aging;

2. Stainless steel exposed fasteners with high anti-corrosion performance;

3. Equipped with AC contactors, thermal relays, self resetting universal transfer switches, and high breaking miniature circuit breakers when equipped with a main switch;

4. It can control the direct starting and stopping of AC 50Hz, 380V three-phase asynchronous motors, and has overload, phase failure, and voltage loss protection;

5. Can be equipped with remote control;

6. Steel pipes or cables can be used for wiring.

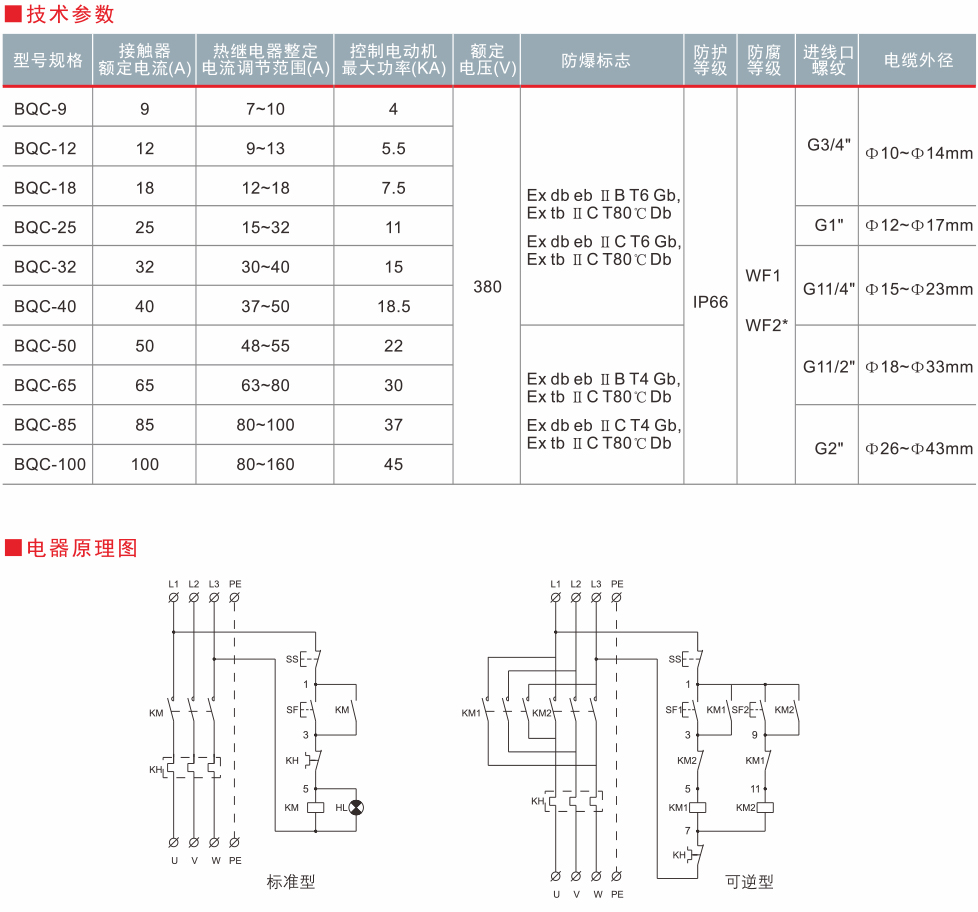

Detailed specifications
