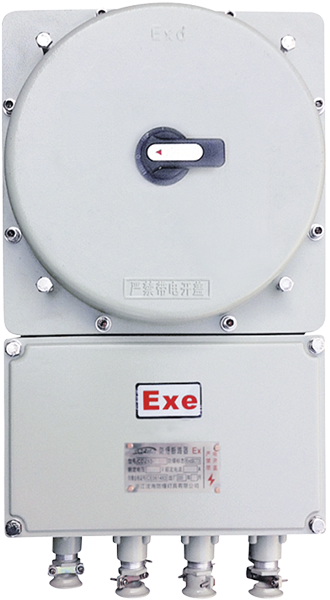

BDZ53 series explosion-proof circuit breaker

1. Suitable for Zone 1 and Zone 2 explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for explosive dust environments in Zone 21 and Zone 22 locations;

4. Suitable for Class IIIA, IIIB, and IIIC explosive dust environments;

5. Suitable for temperature groups T1~T6;

6. Suitable for hazardous environments such as oil extraction, refining, chemical industry, military industry, offshore oil platforms, oil tankers, military industry, metal processing, etc.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

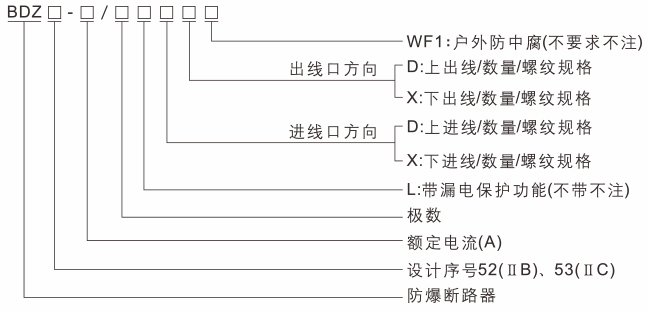

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.3、GB/T 3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-7、IEC 60079-31

Features

1. Aluminum alloy die-casting shell, after high-speed shot peening, the surface is coated with high-voltage electrostatic spraying, which is corrosion resistant and anti-aging;

2. Stainless steel exposed fasteners with high anti-corrosion performance;

3. The overall structure of this series of products is a composite structure, with the main chamber adopting a flameproof structure (where IIIB is a planar flameproof structure and IIC is a stop type flameproof structure), and the wiring chamber adopting an increased safety structure;

4. Equipped with high breaking miniature circuit breakers or molded case circuit breakers, PC operating handles installed on the shell cover, a new patented operating mechanism, simple and reasonable structure, strong universality, and easy operation;

5. The sealing strip adopts advanced technology of one-time molding with wire casting foam, which has high protective performance;

6. Steel pipes or cables can be used for wiring.

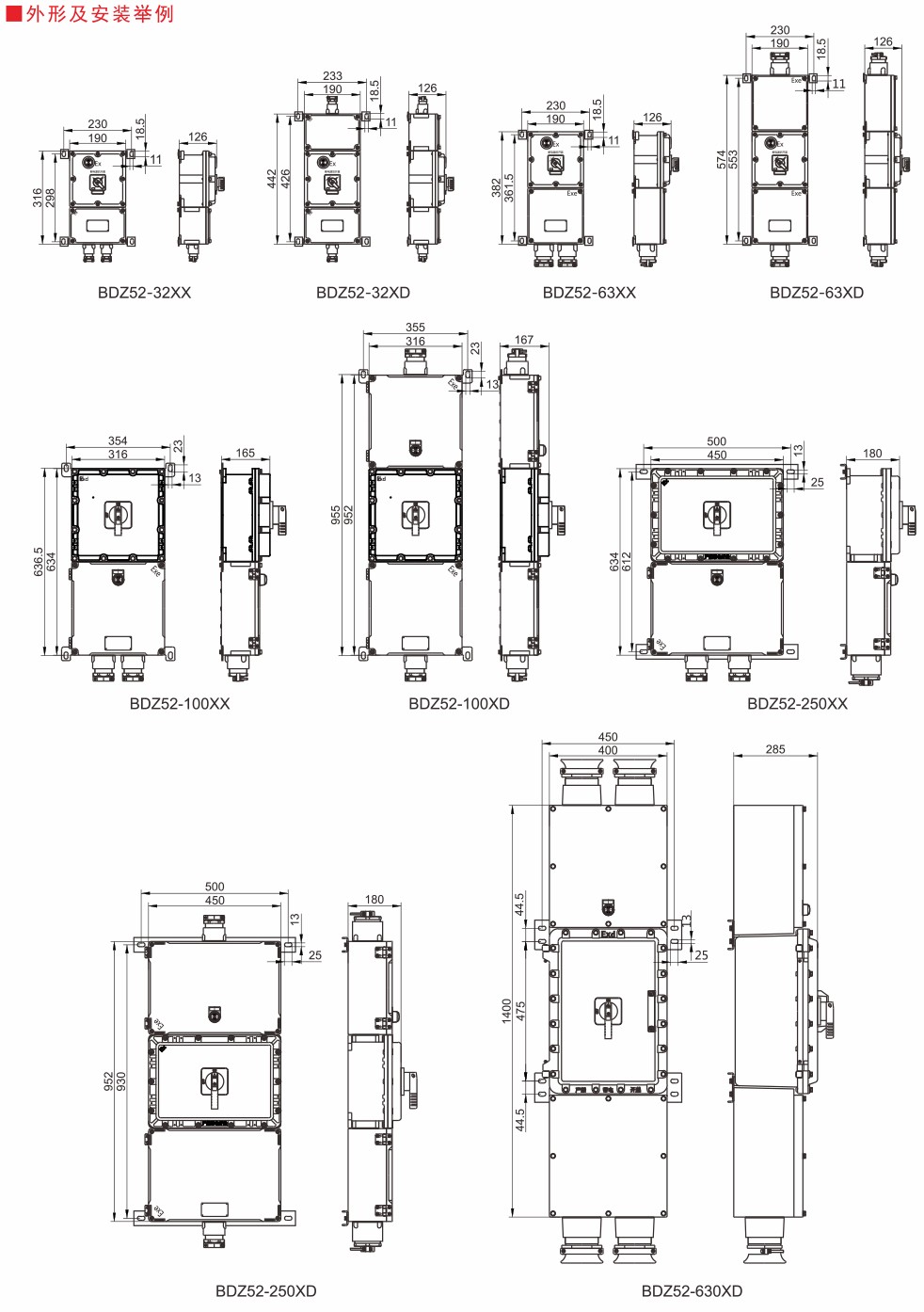

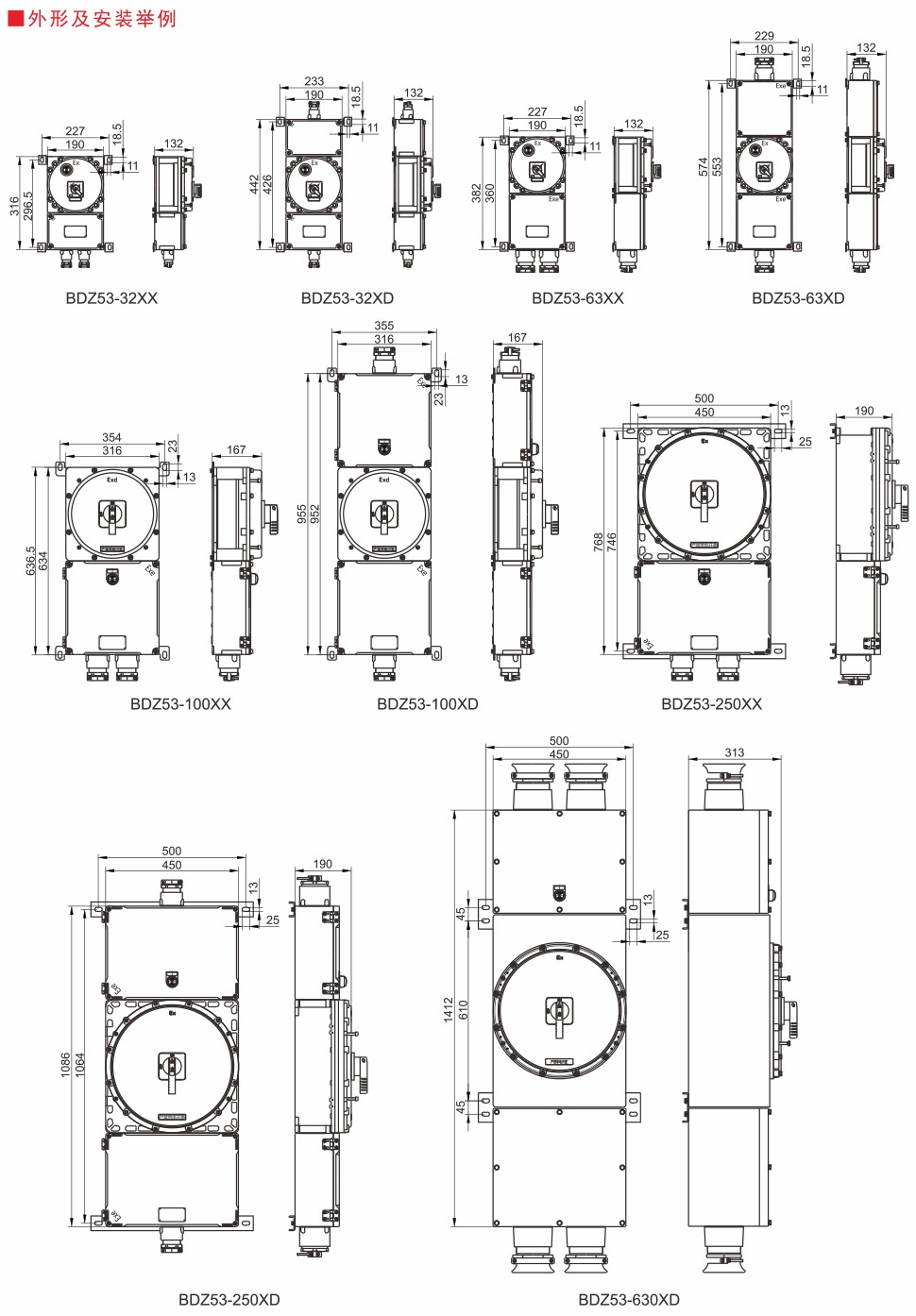

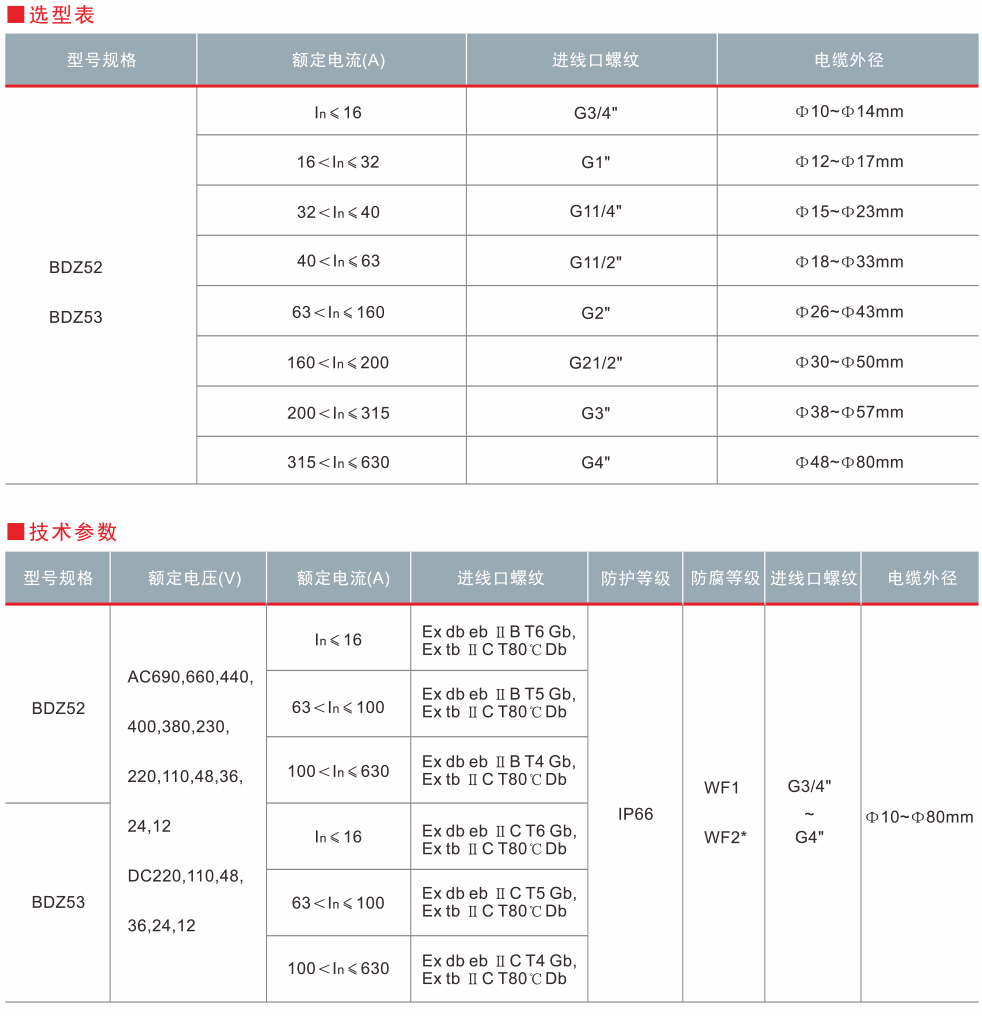

Detailed specifications
