Features

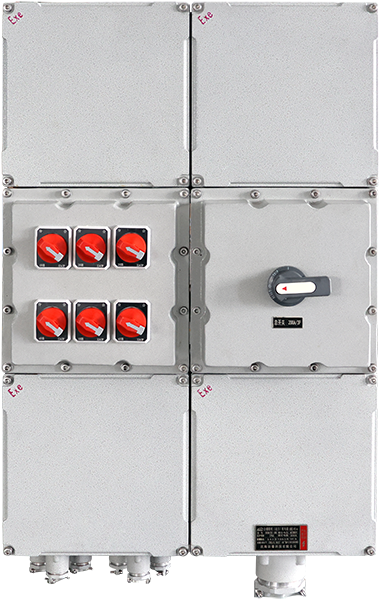

1. The conventional design of this series of products is an aluminum alloy shell, which is equipped with high breaking miniature circuit breakers or molded case circuit breakers inside;
2. Carbon steel, stainless steel, or engineering plastic materials can also be used according to user requirements (please specify when ordering);
3. The product body cover is joined with a curved dust tight structure, and the sealing strip adopts advanced technology of one-time molding with cast-in-place foaming, which has strong waterproof function;
4. Stainless steel exposed fasteners with high anti-corrosion performance;
5. Adopting a modular structure, various circuits can be freely selected and combined;
6. It has overload and short circuit protection function, and can add leakage protection function according to requirements;
7. Electrical components such as circuit breakers, AC contactors, thermal relays, surge protectors, universal transfer switches, fuses, transformers, meters, buttons, etc. can also be installed according to user requirements;
8. The switch handle is usually made of PC material and can be equipped with a padlock to prevent accidental operation. It can also be made of metal material according to user requirements;
9. Steel pipes or cables can be used for wiring.
