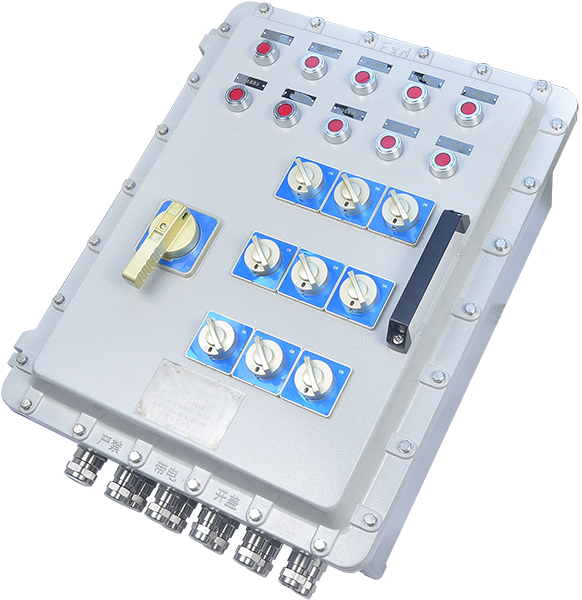

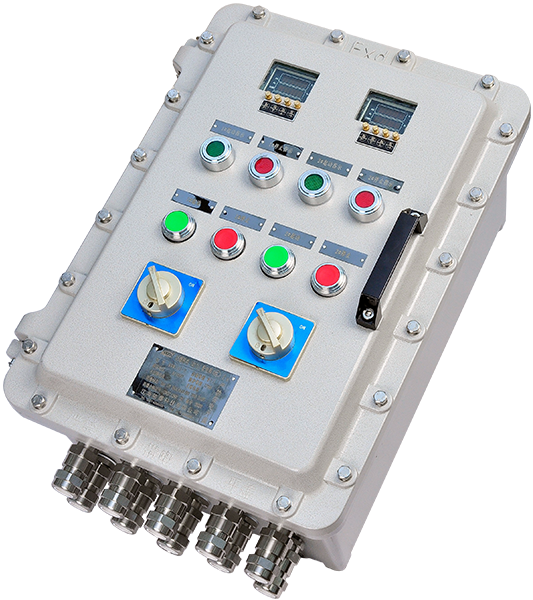

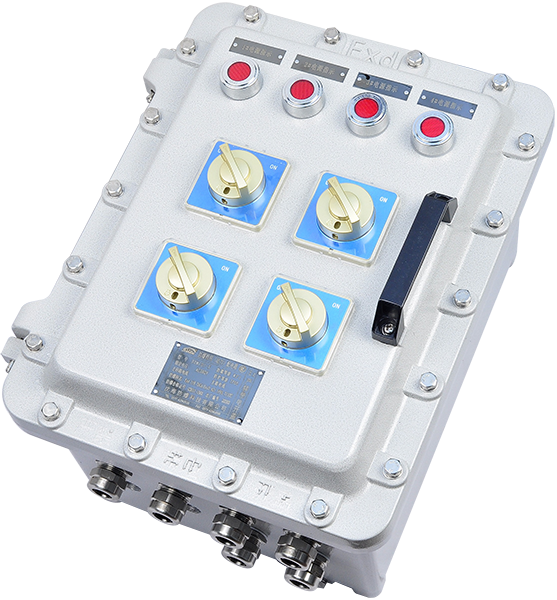

BX □ 53 series explosion-proof distribution device

1. Suitable for Zone 1 and Zone 2 explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for explosive dust environments in Zone 21 and Zone 22 locations;

4. Suitable for Class IIIA, IIIB, and IIIC explosive dust environments;

5. Suitable for temperature groups T1~T6;

6. Suitable for hazardous environments such as oil extraction, refining, chemical industry, military industry, offshore oil platforms, oil tankers, military industry, metal processing, etc.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

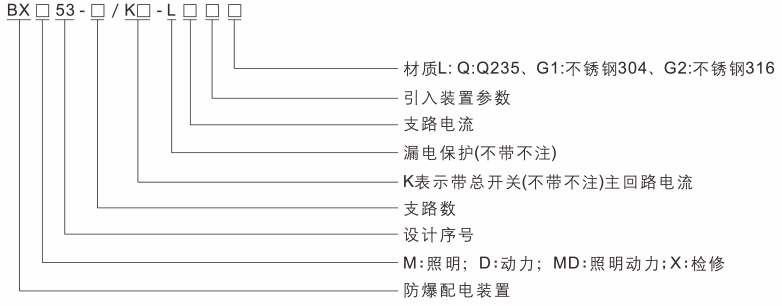

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-31


Features

1. Stainless steel exposed fasteners have high anti-corrosion performance.

2. This series of products adopts an explosion-proof structure and an integrated design, which can achieve multiple circuits sharing one cavity.

3. Install hinges on the cover plate for easy opening and maintenance.

4. Install explosion-proof cable entry device for direct entry.

5. The switch handle is usually made of PC material, but can also be made of metal material according to user requirements. The main switch and sub switch operation panels can be distinguished by color, and the switch handle can be equipped with a padlock to prevent accidental operation.

6. Electrical components such as circuit breakers, AC contactors, thermal relays, surge protectors, universal transfer switches, fuses, transformers, meters, buttons, etc. can be installed according to user requirements.

7. Vertical installation with corresponding installation brackets, can be equipped with rain covers or protective cabinets for outdoor use, and the material can be customized according to user requirements.

8. Steel pipes or cables can be used for wiring.

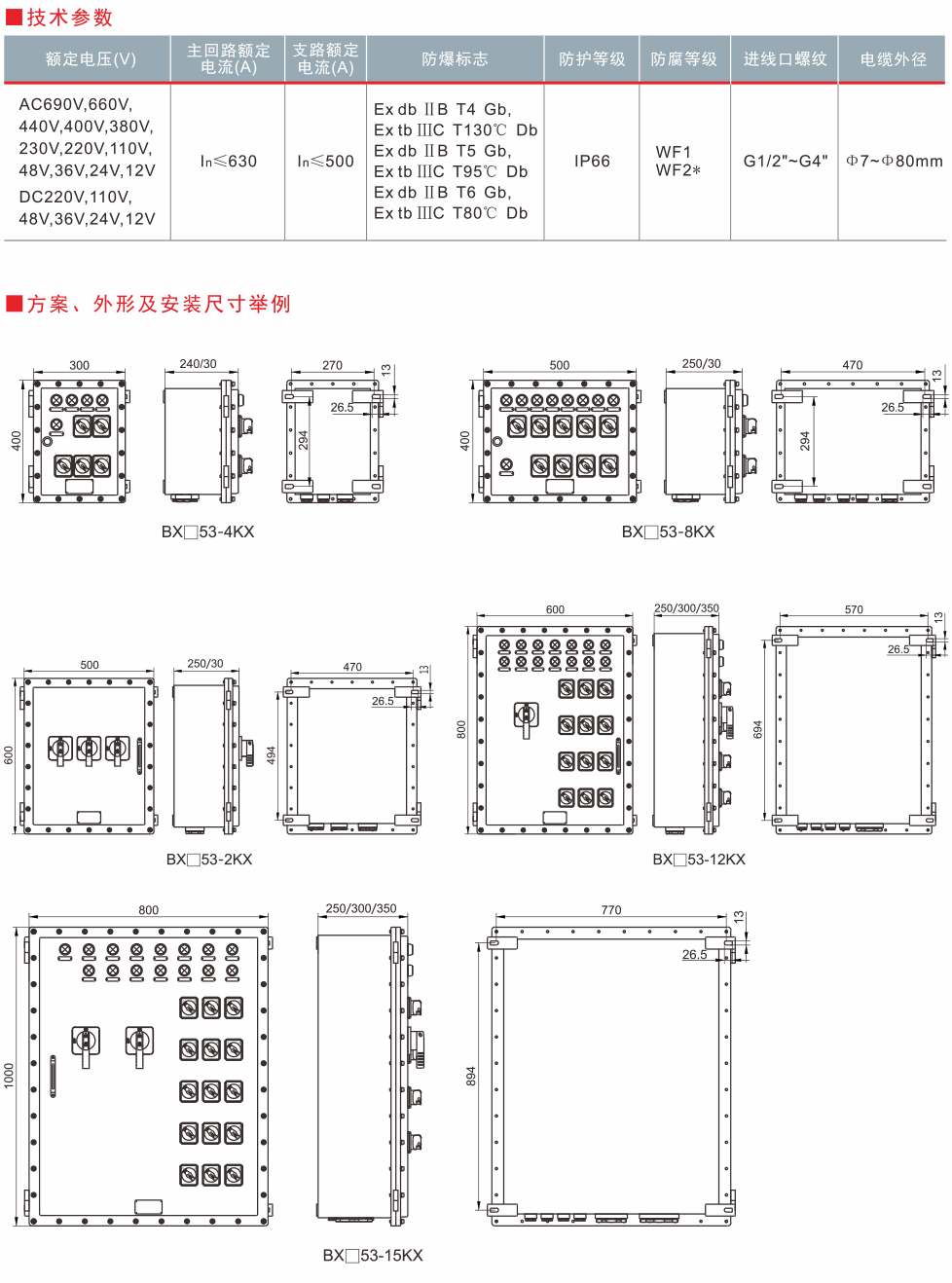

Detailed specifications
