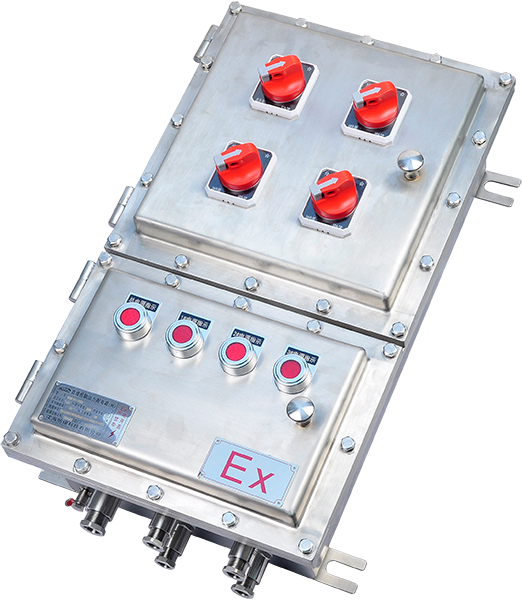

1. The shell is made of aluminum alloy die-casting or carbon steel or stainless steel welding. The surface of aluminum alloy/carbon steel is high-pressure electrostatic spray plastic, and the stainless steel surface is wire drawn, which is corrosion resistant and anti-aging; Stainless steel exposed fasteners have high anti-corrosion performance.
2. The overall structure of this series of products is composite, with a flat explosion-proof structure for the main chamber and an increased safety structure for the wiring chamber.
3. The shell adopts modular assembly design, and various circuits can be freely combined.
4. The switch handle is usually made of PC material, but can also be made of metal material according to user requirements. The main switch and sub switch operation panels can be distinguished by color, and the switch handle can be equipped with a padlock to prevent accidental operation.
5. Electrical components such as circuit breakers, AC contactors, thermal relays, surge protectors, universal transfer switches, fuses, transformers, meters, buttons, etc. can be installed according to user requirements.
6. Each circuit is equipped with a signal indicator light for connection.
7. The sealing strip adopts advanced technology of one-time molding with wire casting foam, which has high protective performance.
8. Vertical installation with corresponding installation brackets, can be equipped with rain covers or protective cabinets for outdoor use, and the material can be customized according to user requirements.
9. Steel pipes or cables can be used for wiring.
