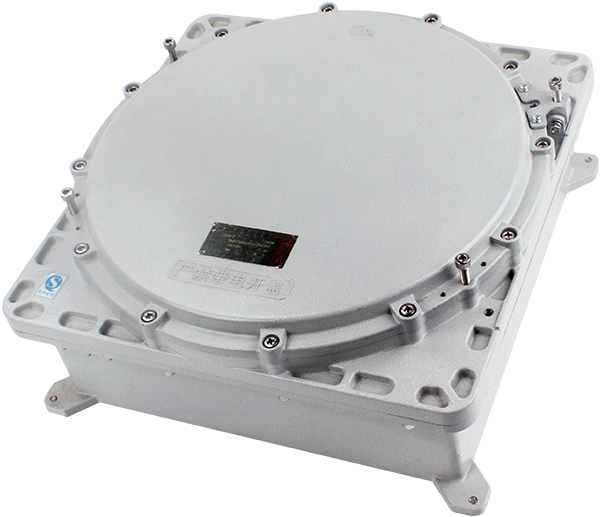

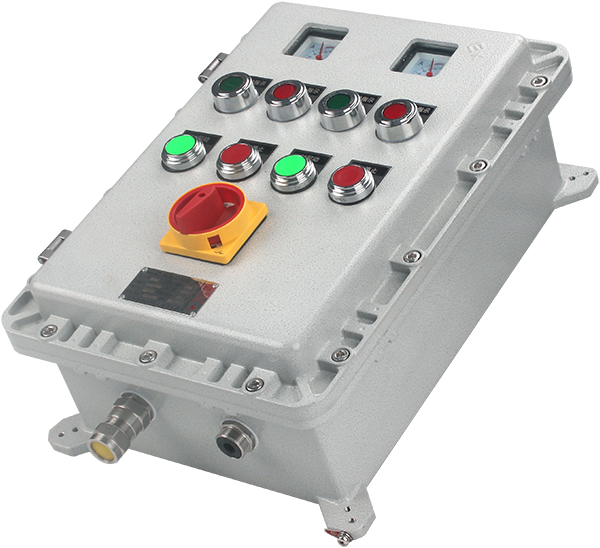

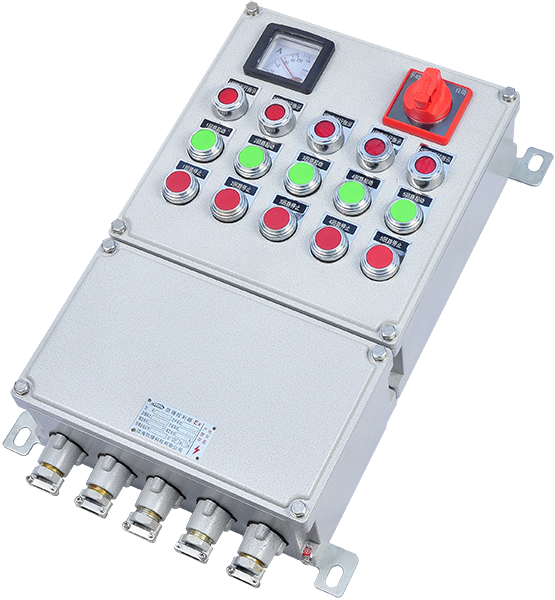

BXK58 series explosion-proof control box

1. Suitable for Zone 1 and Zone 2 explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for explosive dust environments in Zone 21 and Zone 22 locations;

4. Suitable for Class IIIA, IIIB, and IIIC explosive dust environments;

5. Suitable for temperature groups T1~T6;

6. Suitable for hazardous environments such as oil extraction, refining, chemical industry, military industry, offshore oil platforms, oil tankers, military industry, metal processing, etc.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

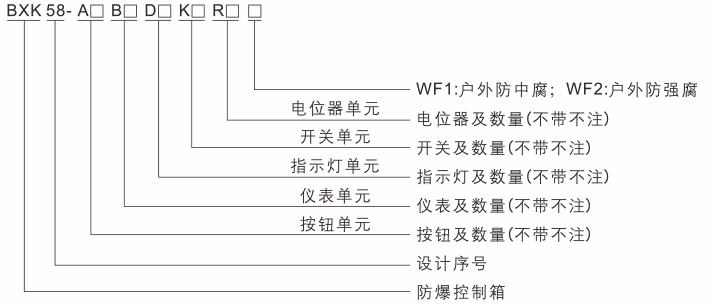

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.3、GB/T 3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-7、IEC 60079-31

Features

1. Aluminum alloy die-casting or high-quality steel plate welding shell, after high-speed shot peening, the surface is high voltage electrostatic spraying, or high-quality stainless steel welding molding, corrosion resistant and anti-aging.

2. Stainless steel exposed fasteners have high anti-corrosion performance.

3. Adopting an increased safety shell structure, it is equipped with explosion-proof components such as explosion-proof indicator lights, buttons, conversion switches, instruments, potentiometers, etc; Alternatively, a flameproof shell structure can be adopted, with dedicated flameproof chamber indicator lights, buttons, toggle switches, instruments, potentiometers, and other components installed inside.

4. The shell and cover can be fitted with hinges according to requirements, which have a beautiful appearance and are easy to maintain.

5. Steel pipes or cables can be used for wiring.

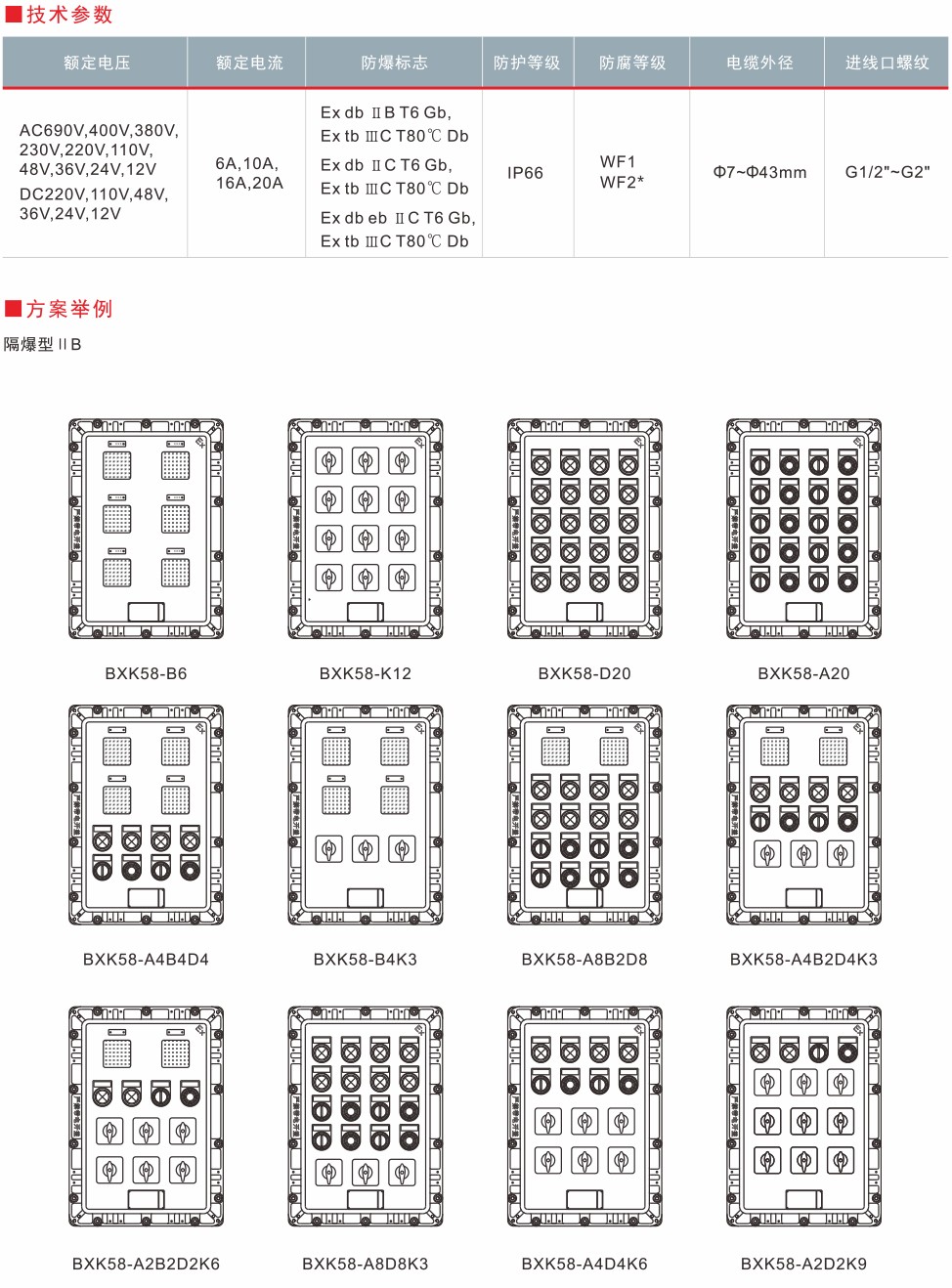

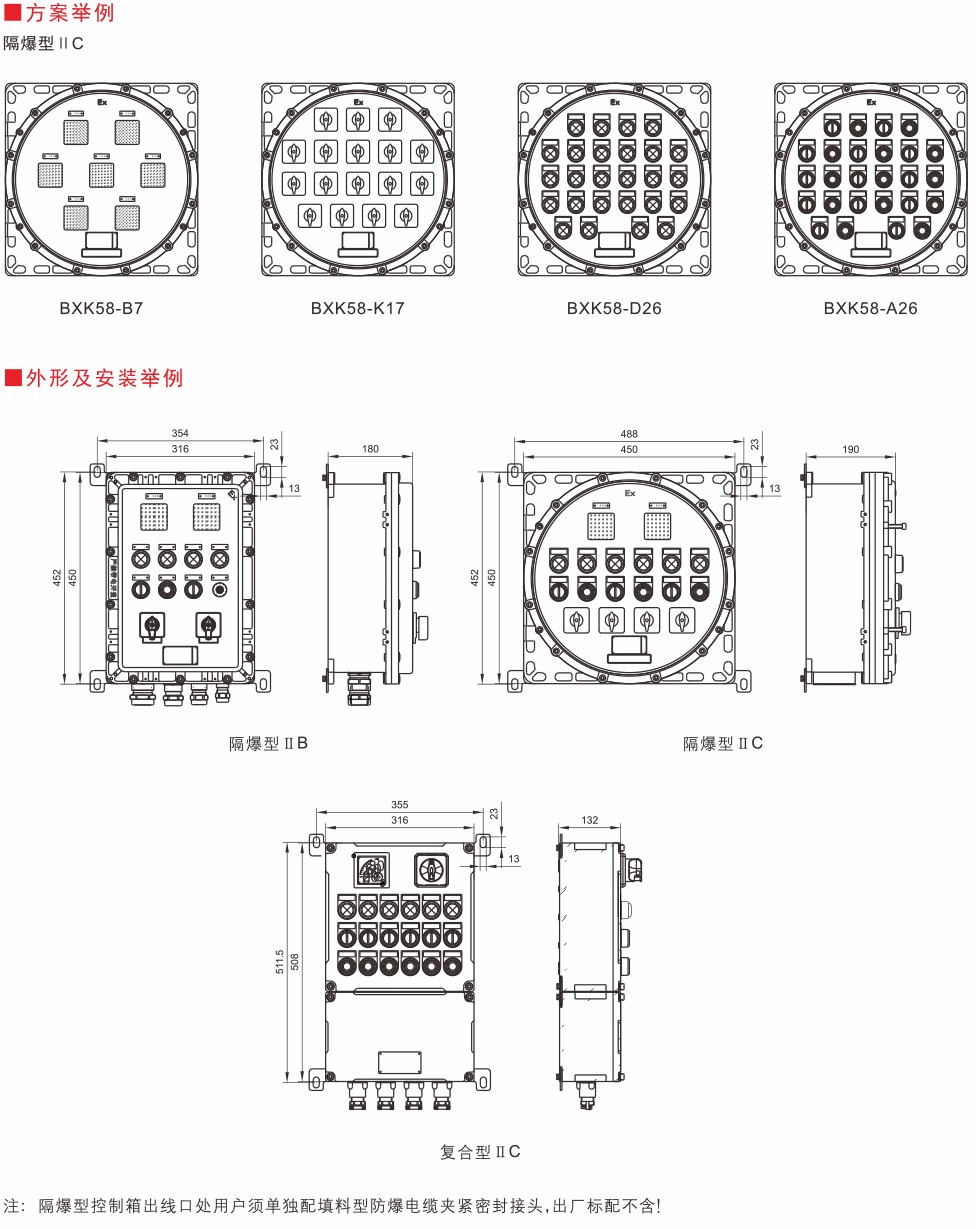

Detailed specifications
