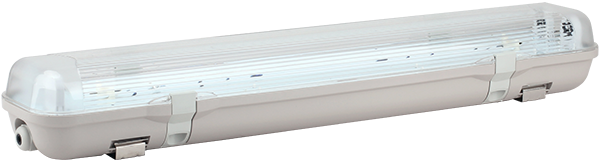

FAY-B series waterproof, dustproof, anti-corrosion fluorescent lamp

1. The ambient temperature ranges from -20 ℃ to+40 ℃;

2. The installation height shall not exceed 2000m above sea level;

3. Suitable for environments with strong acid, strong alkali, salt, ammonia, and chloride ion corrosion; Suitable for petroleum, chemical, food, pharmaceutical, textile, military and other places;

4. Mainly used as factory lighting, especially suitable for workshop lighting with corrosive gases.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features
Model meaning
Implementation standards

GB 7000.1、GB 7000.201、GB17743、GB 17625.1、IEC 60598-1、IEC 60598-2-1、CISPR15、IEC61000-3-2

Features

1. Imported ABS material for the shell, with high-voltage electrostatic spraying on the surface;

2. High anti-corrosion stainless steel exposed fasteners;

3. A professionally designed light distribution system with high light utilization efficiency, reasonable light distribution, and uniform illumination;

4. Special heat dissipation materials with high thermal conductivity;

5. High strength material transparent glass cover, strong impact resistance and thermal shock resistance, high transmittance;

6. Multi point lighting system, multi-point illumination, uniform illumination, no glare;

7. Specially designed constant current waterproof power supply, wide voltage input, constant power output, with lightning protection, short circuit, high temperature and other protection functions;

8. Microwave induction dimming system, energy-saving and environmentally friendly;

9. According to usage requirements, a combination emergency device can be equipped, which can automatically switch to emergency lighting mode when the power supply is cut off.

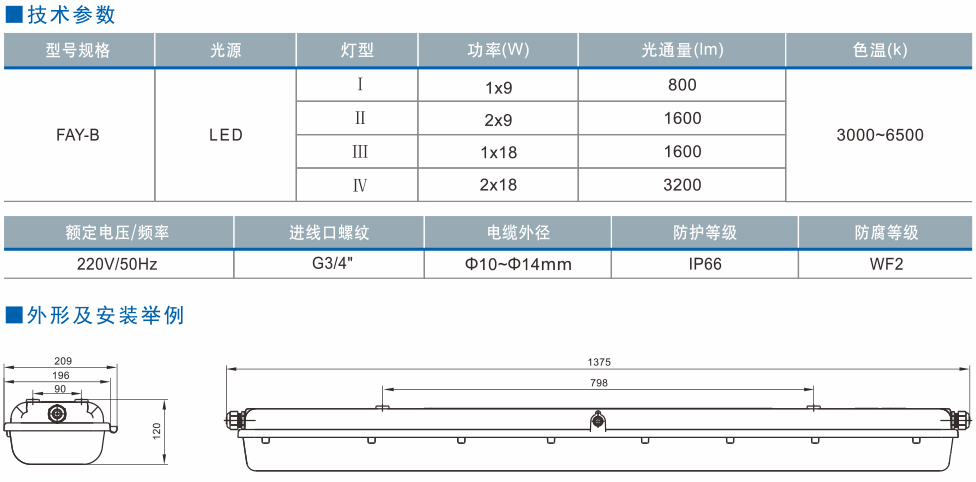

Detailed specifications
