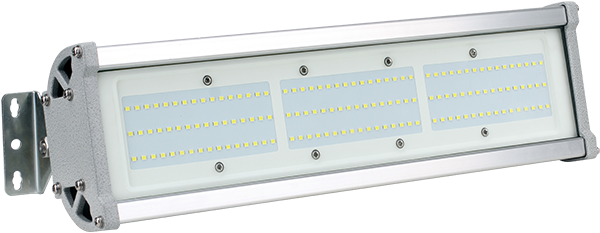

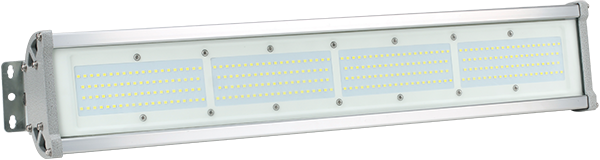

FAY-A series waterproof, dustproof, anti-corrosion fluorescent lamp

1. Suitable for environments with strong acid, strong alkali, salt, ammonia, and gas ion corrosion;

2. Suitable for places with corrosive gases such as petroleum, chemical, food, pharmaceutical, textile, and military industries;

3. Suitable for ambient temperatures: -20 ℃~+40 ℃;

4. Suitable for air relative humidity:<95% (25 ℃);

5. Suitable for rated voltage: AC/DC36, AC/DC24

6. Places without significant shaking or turbulence;

7. Places without gases or vapors that damage insulation;

8. Pollution level: Level 3.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

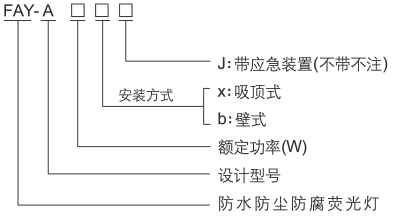

Model meaning


Implementation standards

GB7 000.1、GB 7000.201、GB 17743、GB 17625.1、IEC 60598-1、IEC 60598-2-1、CISPR15、IEC 61000-3-2


Features

1. Aluminum alloy stretch forming, surface anodizing, corrosion resistance and aging resistance;

2. The transparent material is made of physically tempered glass, which has high transparency and UV resistance;

3. Stainless steel exposed fasteners with high anti-corrosion performance;

4. The joint surface adopts high-temperature resistant silicone rubber sealing ring, with a protection performance of up to IP66, which can be used indoors and outdoors;

5. Equipped with dedicated wiring terminals, the wire connections are reliable and easy to maintain and repair;

6. New energy-saving and environmentally friendly LED light source, with low light attenuation and a lifespan of up to 100000 hours;

7. Specially designed constant current power supply, low power consumption, constant output power, with open circuit, short circuit, and overheating protection functions, high power factor up to 0.9 or above;

8. Adopting natural ventilation convection heat dissipation technology, utilizing air flow to effectively dissipate heat to the outer space of the lamp through heat dissipation channels and heat flow channels, ensuring the longevity of the lamp;

9. Independent surge protection device can effectively filter out the damage caused by voltage fluctuations caused by large equipment to the lighting fixtures, and improve the service life of the lighting fixtures;

10. Specially designed constant current waterproof power supply or optoelectronic integrated module, wide voltage input, constant power output, with protection functions such as short circuit and high temperature;

11. Power factor cos Φ>0.95;

12. Steel pipe or cable wiring.

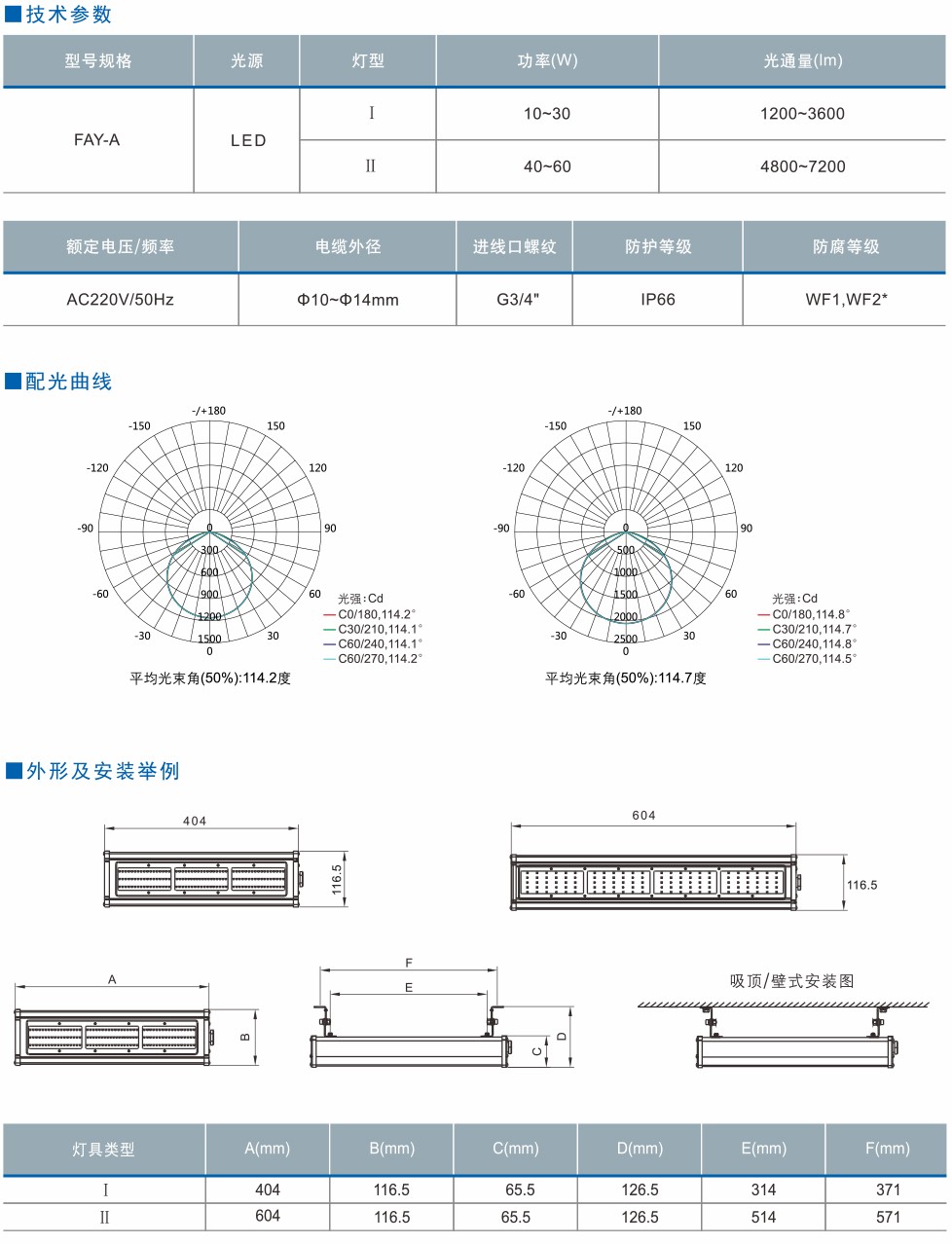

Detailed specifications
