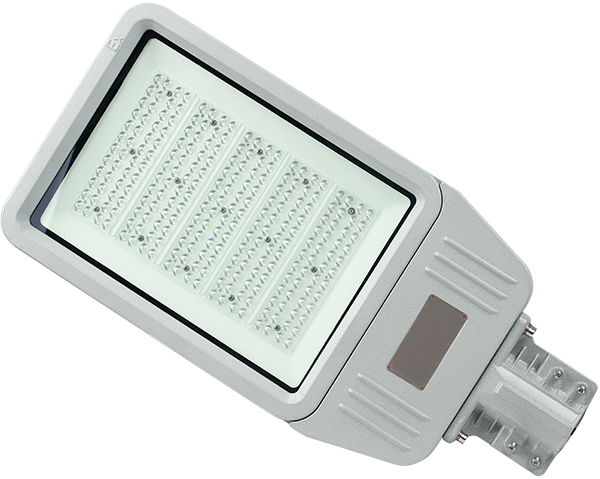

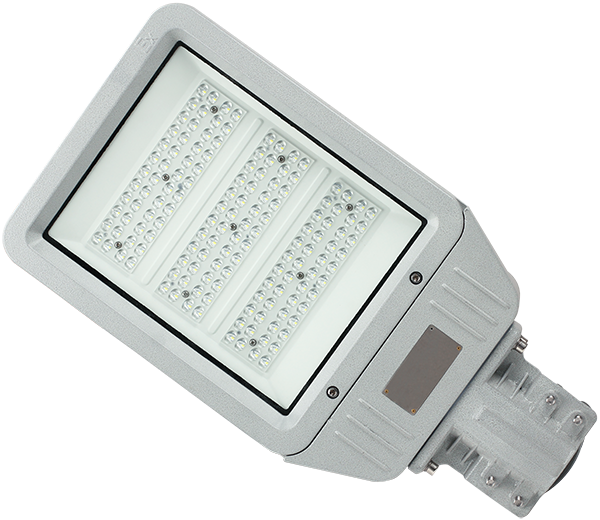

FED92 series road and street lighting fixtures

1. The ambient temperature ranges from -25 ℃ to 40 ℃;

2. The installation height shall not exceed 2000m above sea level;

3. Widely used for road and street lighting in oil extraction, refining, chemical, military, textile, food processing, offshore oil platforms, oil tankers, etc.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

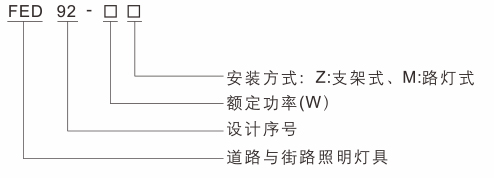

Model meaning


Implementation standards

GB 17625.1、GB 17743、GB/T 18595、GB 7000.1、GB 7000.203、IEC 61000-3-2、CISPR15、IEC61547、EC 60598-1、IEC 60598-2-3

Features

1. The radiator design is made of special cast aluminum alloy by die-casting, and the surface is coated with high-voltage electrostatic spraying;

2. High anti-corrosion stainless steel exposed fasteners;

3. Separate structure of light source cavity and power supply cavity;

4. A professionally designed light distribution system with secondary optical lenses, reasonable light distribution, uniform illumination without glare;

5. The junction box is a maze like structure, equipped with silicone rubber sealing strips, which are firmly attached and have a high level of protection;

6. High strength material tempered glass, strong impact resistance and thermal shock resistance, high transmittance;

7. Constant current power supply with wide voltage input and constant current output, with protection functions such as shunt, surge protection, overcurrent, open circuit, open circuit, high temperature, and anti electromagnetic interference;

8. Power factor cos Φ>0.95.

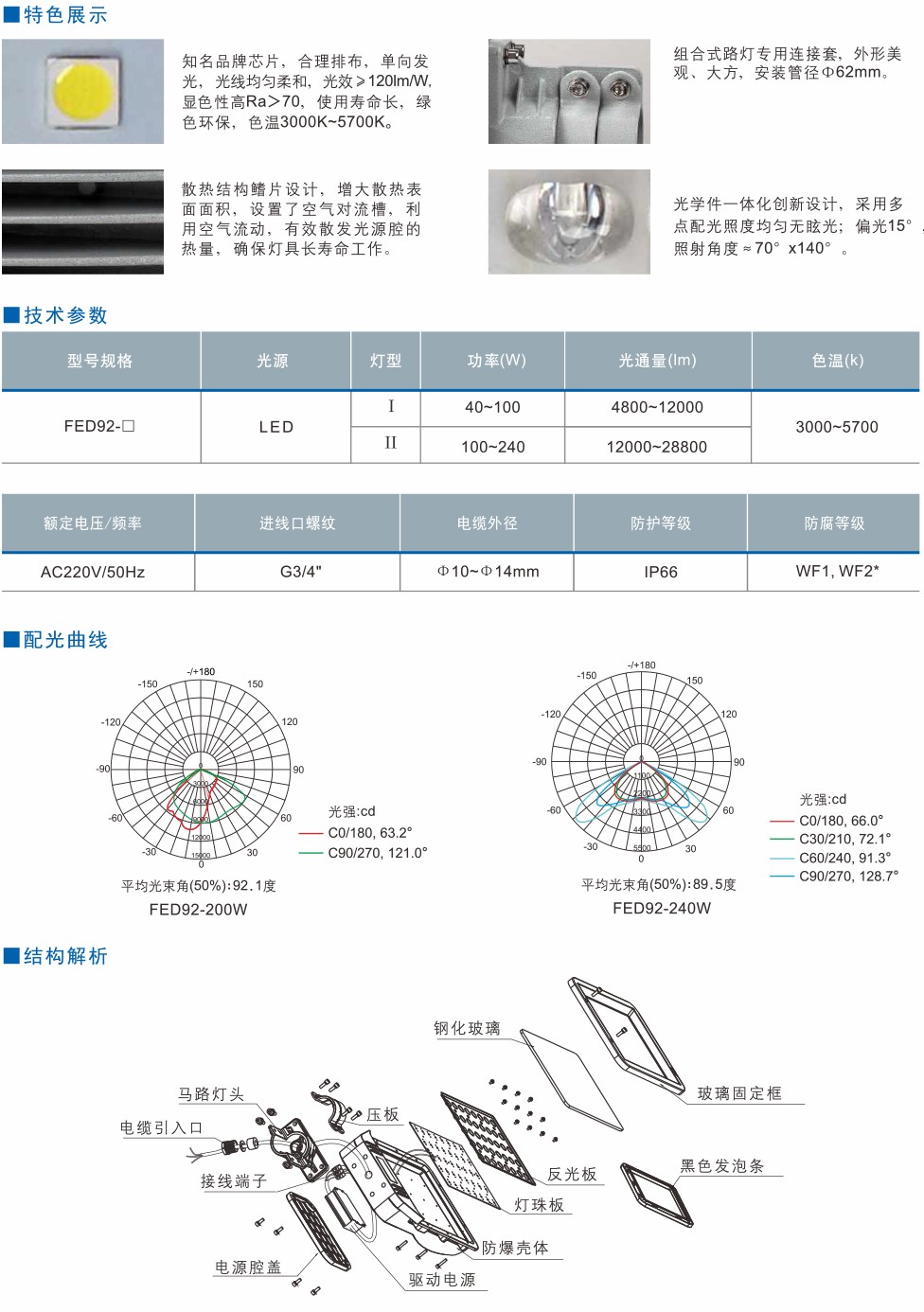

Detailed specifications
