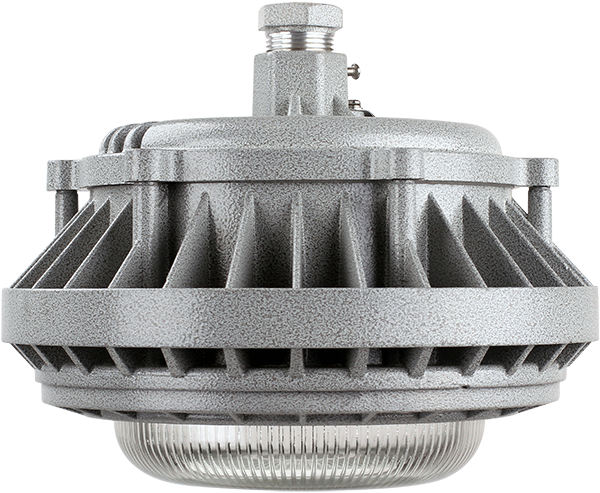

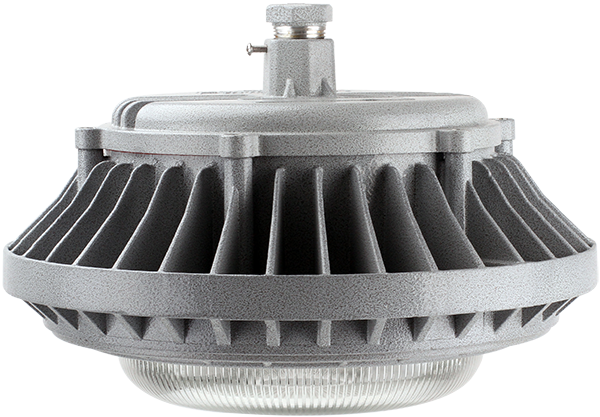

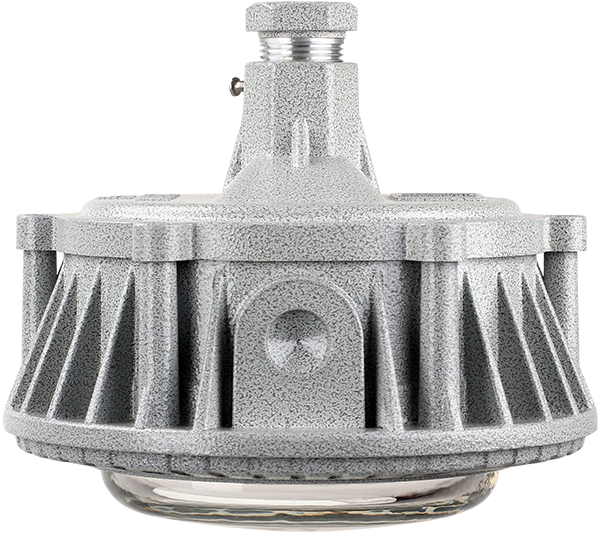

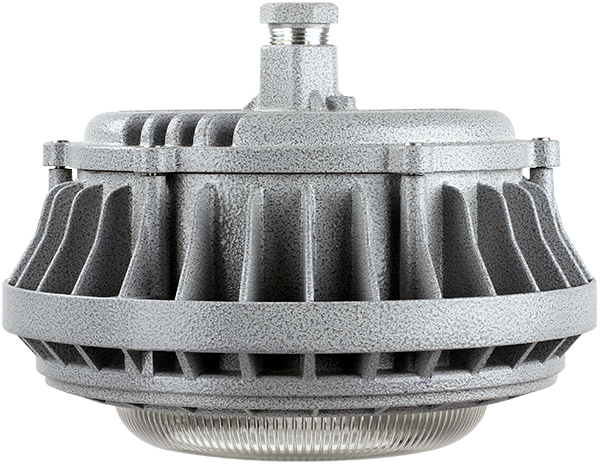

SLF series fixed universal lighting fixtures

1. The ambient temperature ranges from -25 ℃ to 40 ℃;

2. The installation height shall not exceed 2000m above sea level;

3. Suitable for environments with strong acid, strong alkali, salt, ammonia, and chloride ion corrosion; Suitable for petroleum, chemical, food, pharmaceutical, textile, military and other places;

4. Mainly used as factory lighting, especially suitable for workshop lighting with corrosive gases.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

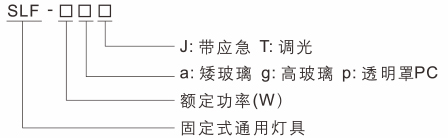

Model meaning


Implementation standards

GB 7000.1、GB 7000.201、GB 17743、GB 17625.1、IEC 60598-1、IEC 60598-2-1、CISPR15、IEC 61000-3-2

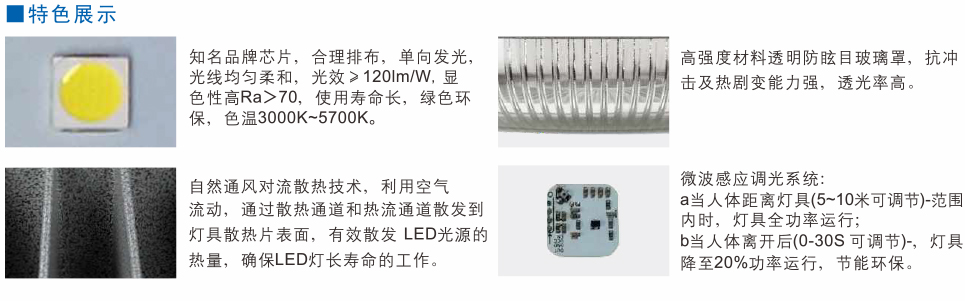

Features

1. The radiator design is made of special cast aluminum alloy by die-casting, and the surface is coated with high-voltage electrostatic spraying;

2. High anti-corrosion stainless steel exposed fasteners;

3. High strength corrosion-resistant, UV resistant and anti glare transparent glass cover;

4. A professionally designed lighting system with multi-point illumination, high light utilization rate, reasonable lighting distribution, uniform illumination without glare;

5. Constant current power supply with wide voltage input and constant current output, with protection functions such as shunt, surge protection, overcurrent, open circuit, open circuit, high temperature, and anti electromagnetic interference;

6. Microwave induction dimming system, energy-saving and environmentally friendly;

7. Power factor cos Φ>0.95;

8. According to usage requirements, a combination emergency device can be equipped, which can automatically switch to emergency lighting mode when the power supply is cut off;

9. Steel pipe or cable wiring.

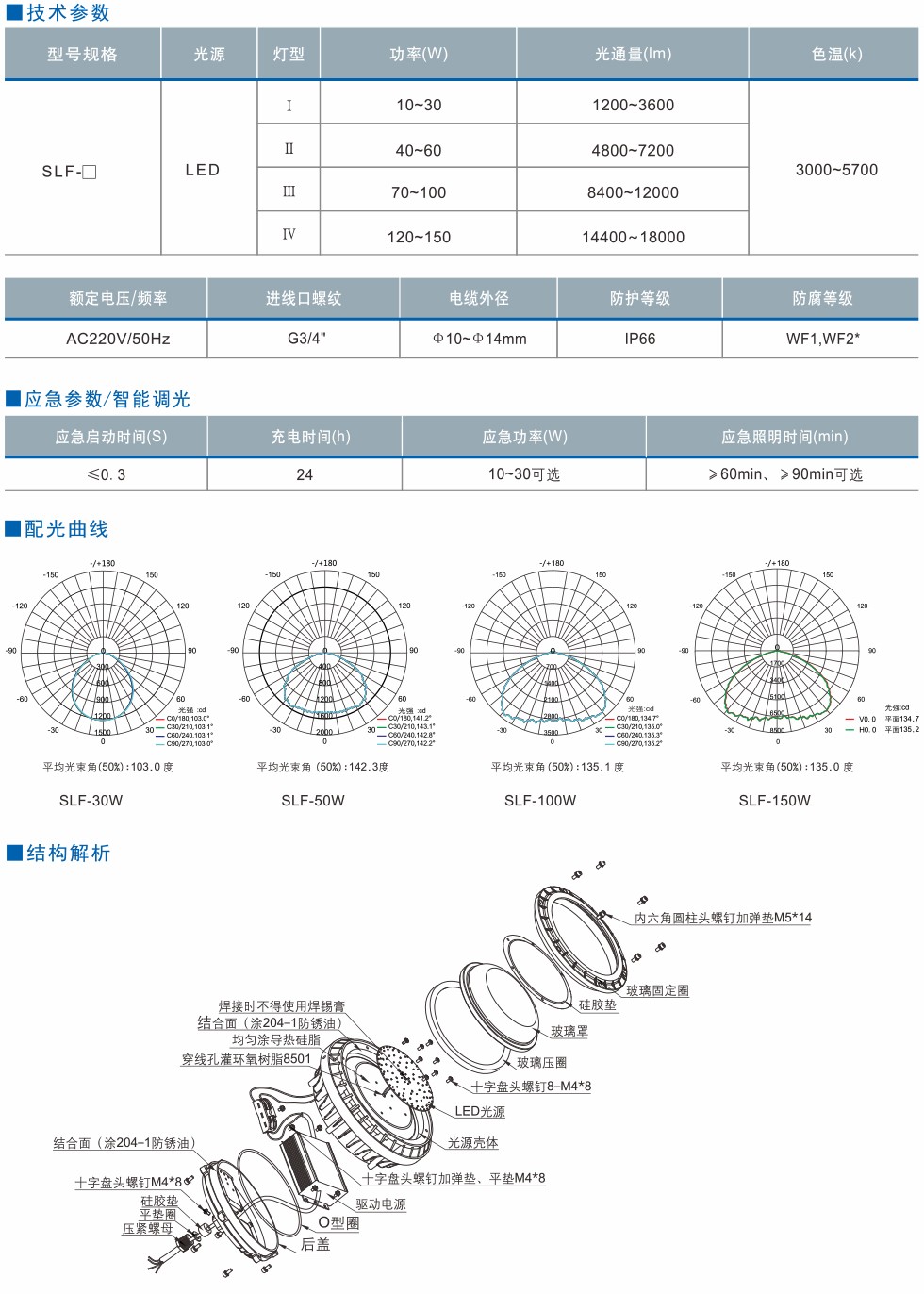

Detailed specifications
