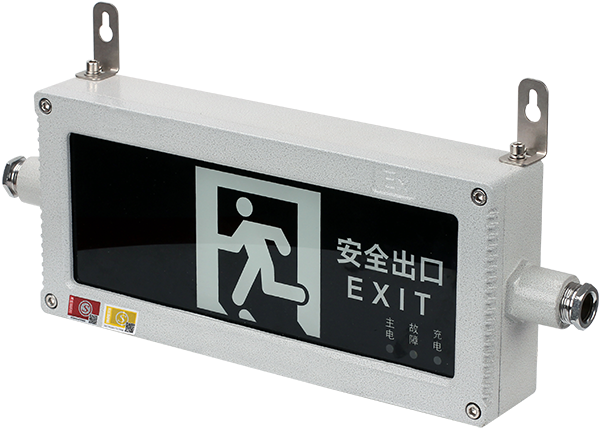

SH-BLZD-1LR0EI4W-B Fire Emergency Sign Light Fixture

1. Suitable for Zone 1 and Zone 2 explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for explosive dust environments in Zone 21 and Zone 22 locations;

4. Suitable for Class IIIA, IIIB, and IIIC explosive dust environments;

5. Suitable for temperature groups T1~T6;

6. Suitable for use as safety exit and evacuation instructions in hazardous environments such as oil extraction, refining, chemical industry, and military industry.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

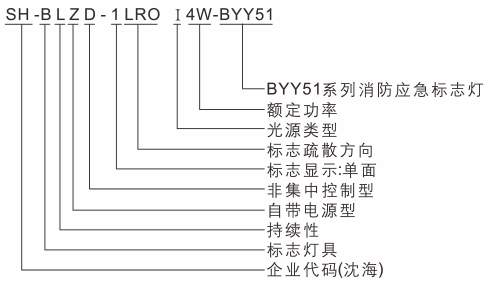

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.3、GB/T 3836.4、GB/T 3836.9、GB/T 3836.31、GB 17945、GB 51309、IEC 60079-0、IEC 60079-7、IEC 60079-11、IEC 60079-18、IEC 60079-31

Features

1. Non polarized connection;

2. Handheld encoder encoding;

3. Short circuit independent recoverable protection;

4. The product is made of special cast aluminum alloy by die-casting, and the surface is coated with high-voltage electrostatic spraying;

5. High anti-corrosion stainless steel exposed fasteners;

6. Aluminum alloy die-casting shell, after high-speed shot peening, the surface is coated with high-voltage electrostatic spraying, which is corrosion resistant and anti-aging;

7. Evacuation signs can be freely selected by users or customized according to their requirements;

8. Adopting ultra-high brightness LED light source, low power consumption, long lifespan, and can achieve long-term maintenance free;

9. Constant light mode, automatically charges under normal power supply conditions, and automatically lights up in case of accidents or power outages.

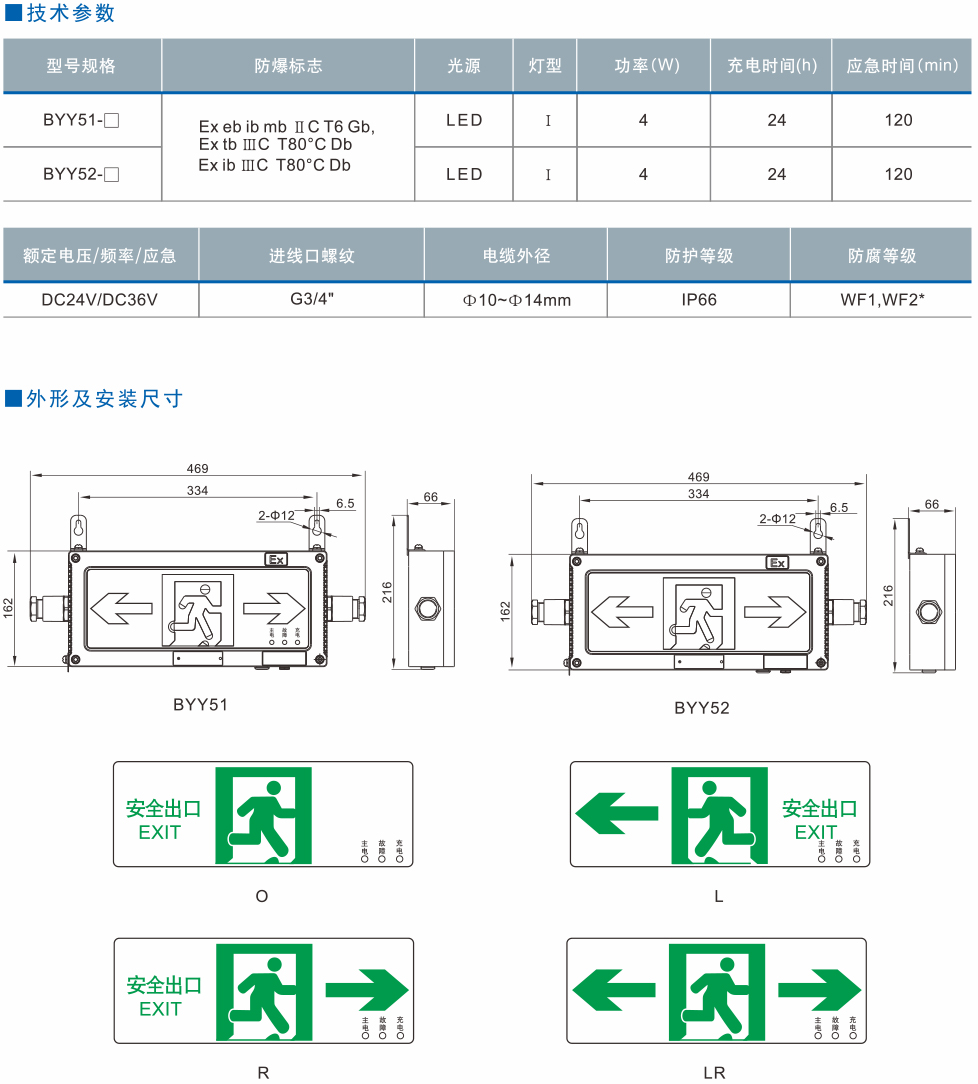

Detailed specifications
