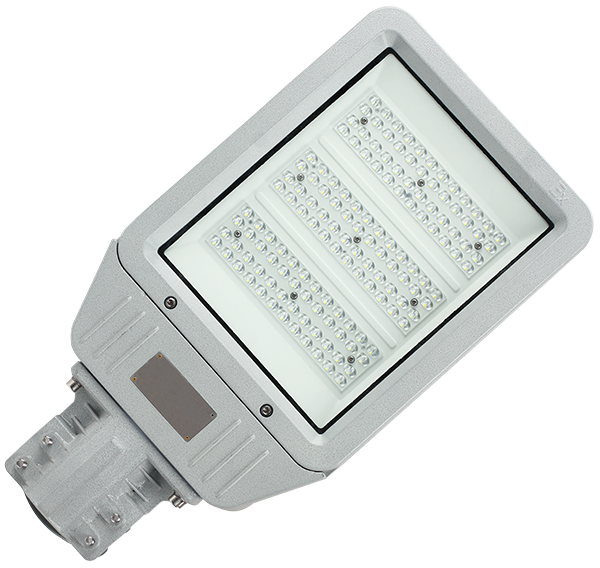

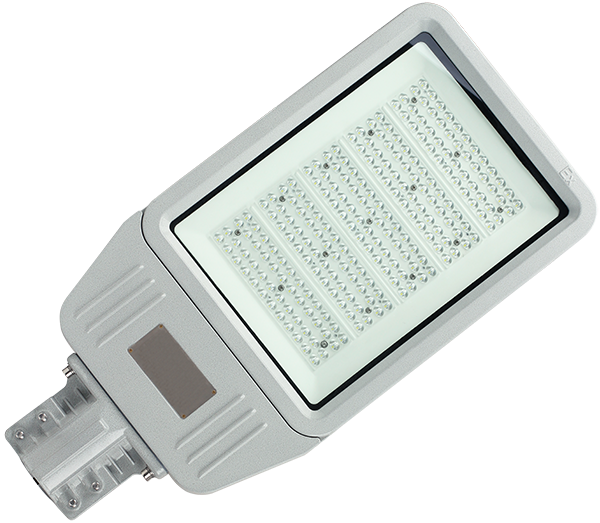

BED62 series explosion-proof maintenance free LED energy-saving road light

1. Suitable for Zone 1 and Zone 2 explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for explosive dust environments in Zone 21 and Zone 22 locations;

4. Suitable for Class IIIA, IIIB, and IIIC explosive dust environments;

5. Suitable for temperature groups T1~T6/T5;

6. Suitable for energy-saving renovation projects and places where maintenance and replacement are difficult;

7. Widely used for road and street lighting in oil extraction, refining, chemical, military, textile, food processing, offshore oil platforms, oil tankers, etc.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

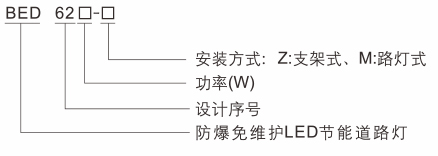

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.3、GB/T 3836.9、GB/T 3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-7、IEC 60079-18、IEC 60079-31


Features

1. The radiator design is made of special cast aluminum alloy by die-casting, and the surface is coated with high-voltage electrostatic spraying;

2. High anti-corrosion stainless steel exposed fasteners;

3. Separate structure of light source cavity and power supply cavity;

4. A professionally designed lighting system with high light utilization efficiency, reasonable lighting distribution, uniform illumination, and no glare;

5. The junction box has a labyrinth structure, equipped with silicone rubber sealing strips, which are firmly attached and have a high level of protection;

6. High strength material tempered glass, strong impact resistance and thermal shock resistance, high transmittance;

7. Constant current power supply with wide voltage input and constant current output, with protection functions such as shunt, surge protection, overcurrent, open circuit, open circuit, high temperature, and anti electromagnetic interference;

8. Power factor cos ф>0.95;

9. According to usage requirements, a combination emergency device can be equipped, which can automatically switch to emergency lighting mode when the power supply is cut off;

10. Cable wiring.

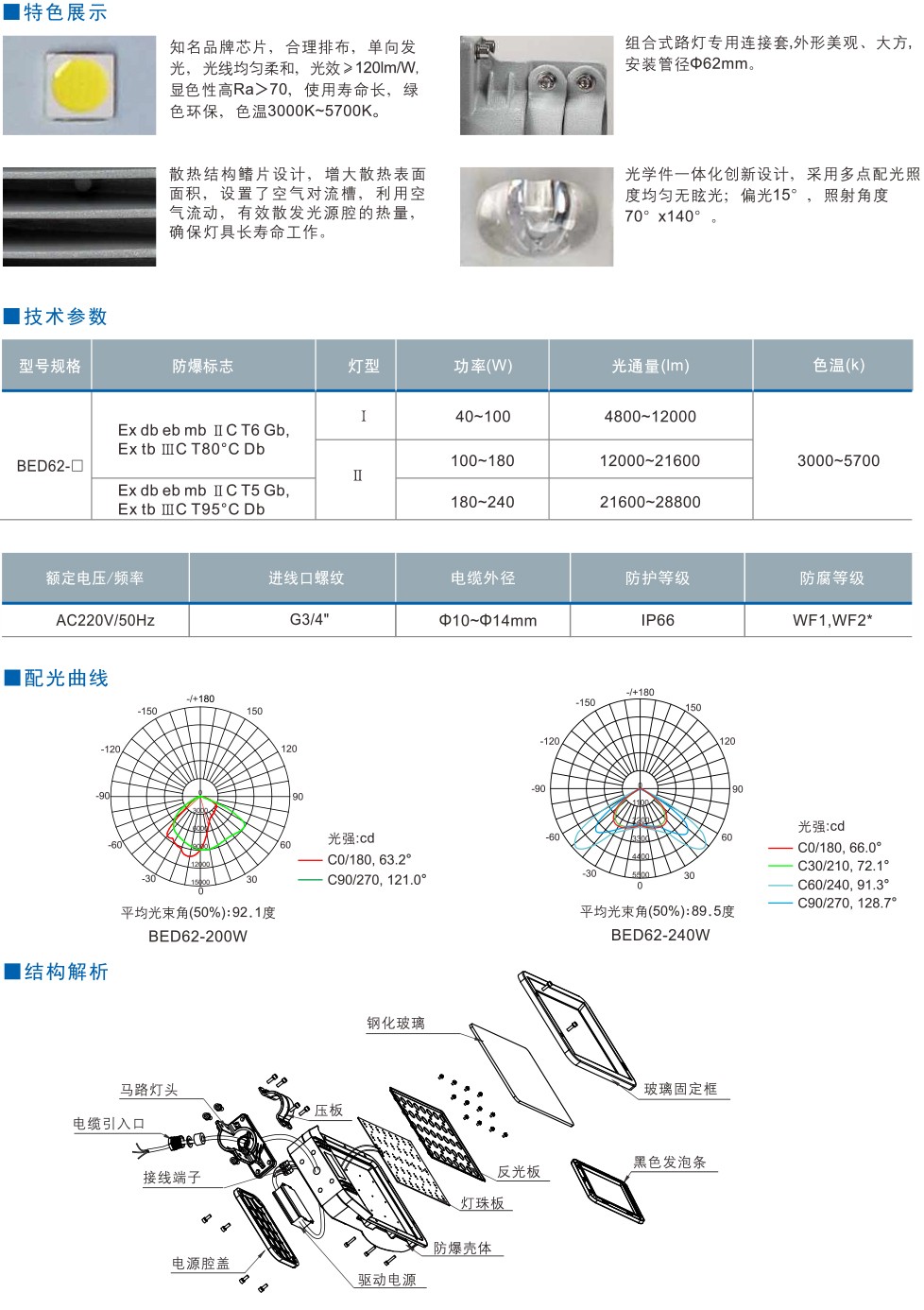

Detailed specifications
