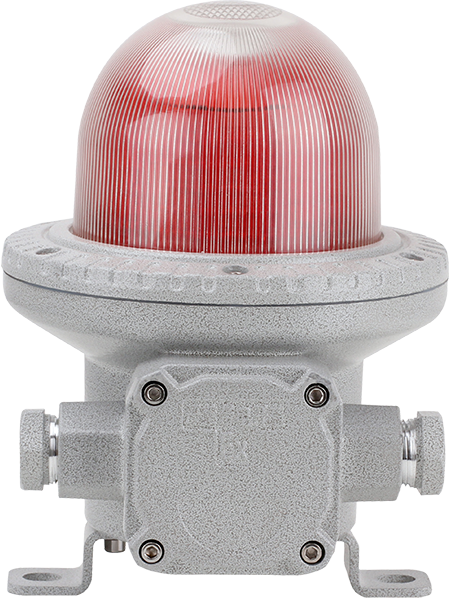

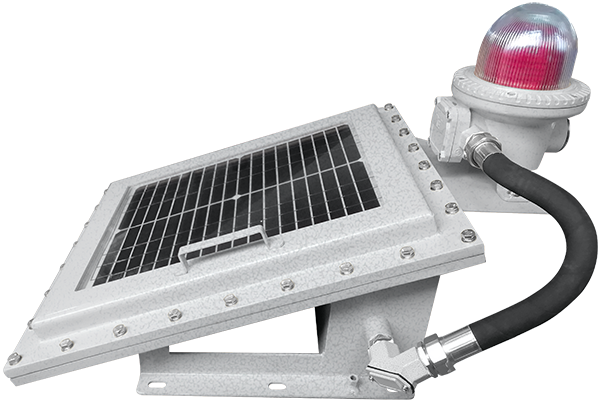

SHBZ series explosion-proof aviation obstruction lights

1. Suitable for Zone 1 and Zone 2 explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for explosive dust environments in Zone 21 and Zone 22 locations;

4. Suitable for Class IIIA, IIIB, and IIIC explosive dust environments;

5. Suitable for temperature groups T1~T6;

6. Suitable for energy-saving renovation projects and places where maintenance and replacement are difficult;

7. Widely used in fixed buildings, structures, and airport moving objects such as oil extraction, refining, chemical, military, textile, food processing, offshore oil platforms, oil tankers, etc.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

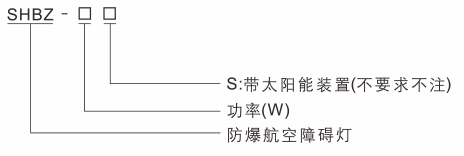

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-31

Features

1. Aluminum alloy die-casting shell, surface coated with high-voltage electrostatic spraying, corrosion-resistant and anti-aging;

2. The transparent material is made of imported engineering resin, which is resistant to ultraviolet rays and anti glare treatment. The light is soft and can effectively avoid discomfort and fatigue caused by lighting for workers;

3. Stainless steel exposed fasteners with high anti-corrosion performance;

4. All external detachable parts of the lamp have anti detachment measures;

5. The joint surface adopts high-temperature resistant silicone rubber sealing ring, with a protection performance of up to IP66, which can be used indoors and outdoors;

6. Equipped with dedicated wiring terminals, the wire connections are reliable and easy to maintain and repair;

7. New energy-saving and environmentally friendly LED light source, with low light attenuation and a lifespan of up to 100000 hours;

8. Specially designed constant current power supply, low power consumption, constant output power, with open circuit, short circuit, and overheating protection functions, high power factor of up to 0.9 or above;

9. This series of lamps comes with a cable clamping and sealing device, and can be wired with steel pipes or cables.

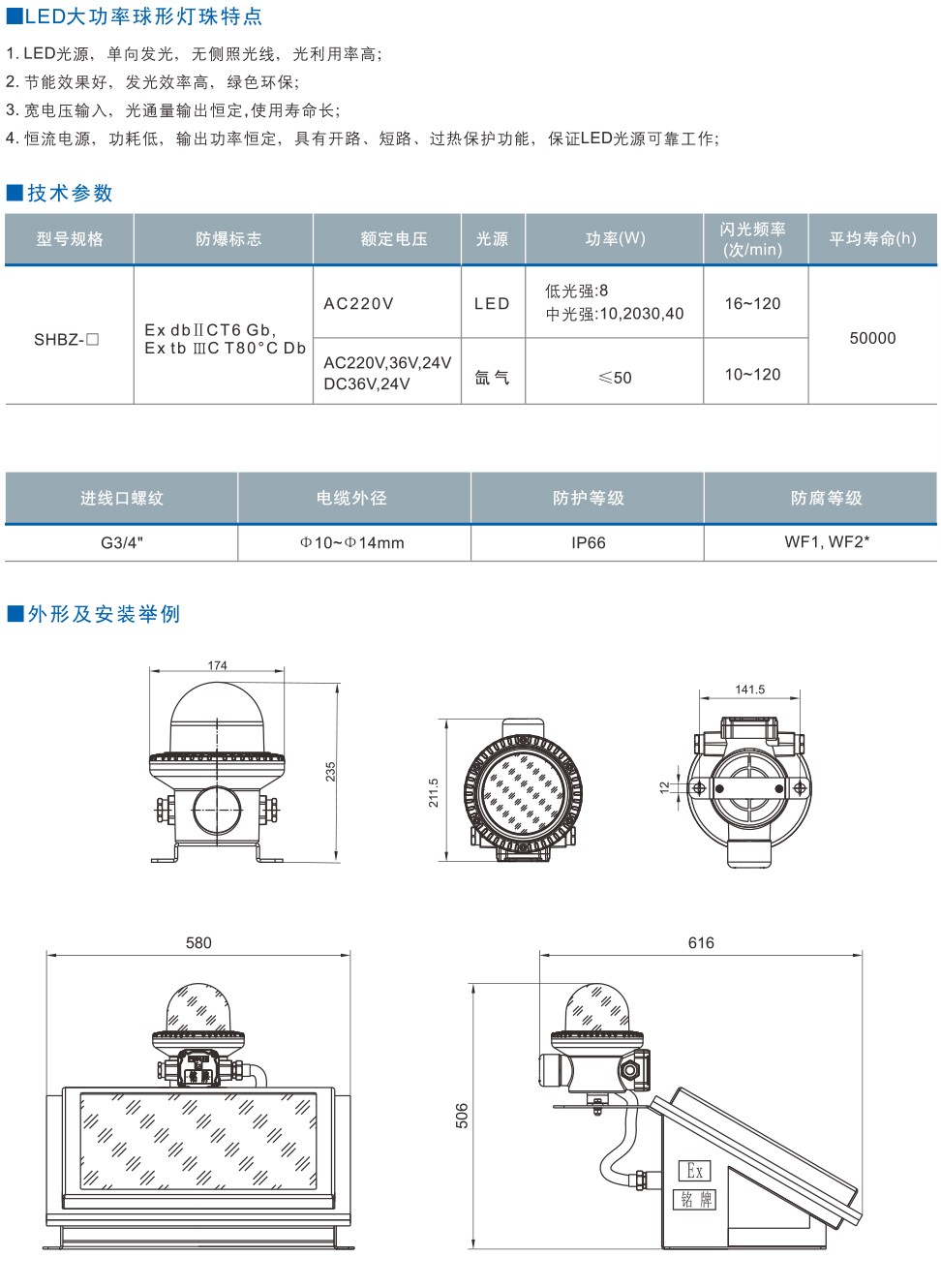

Detailed specifications
