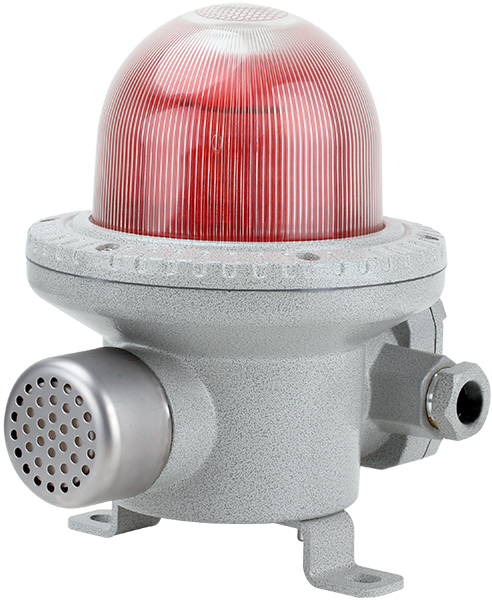

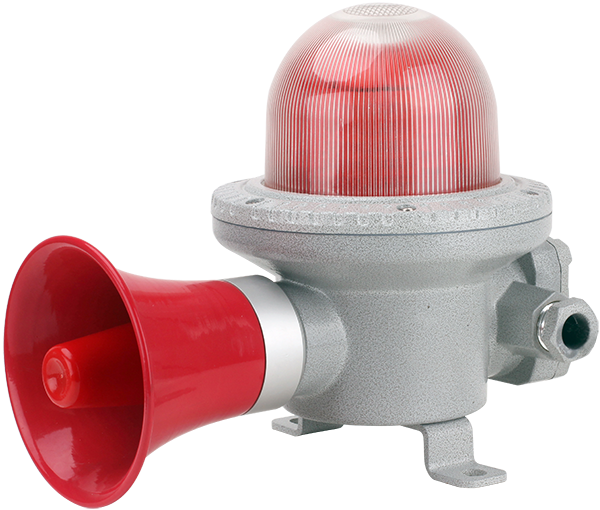

BBJ series explosion-proof sound and light alarm

1. Applicable to Zone 1 and Zone 2 areas with explosive gas atmospheres;

2. Applicable to explosive gas atmospheres of Class IIA, Class IIB, and Class IIC;

3. Applicable to areas with explosive dust atmospheres, Zone 21 and Zone 22;

4. Suitable for use in explosive dust atmospheres of Class III A, III B, and III C;

5. Applicable to temperature groups T1 to T6;

6. It is suitable for use as an accident signal alarm or indicator in hazardous locations such as oil extraction, refining, chemical industry, military industry, offshore oil platforms, and oil tankers.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

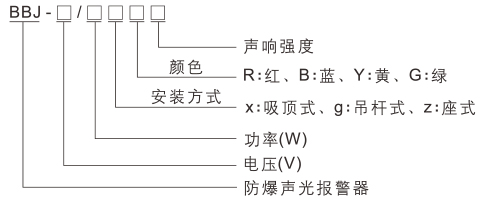

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.3、GB/T 3836.4、GB/T 3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-7、IEC 60079-11、IEC 60079-31


Features

1. The shell is made of aluminum alloy through die-casting, and the surface is treated with high-voltage electrostatic powder coating;

2. Lightweight structure, elegant and beautiful appearance;

3. High-strength tempered glass lampshade;

4. High-brightness red light-emitting diodes are used, featuring long lifespan and high brightness;

5. Remove the wiring of the built-in buzzer to use it as a warning light;

6. The exposed fasteners shall be made of stainless steel;

7. Steel pipe cable routing.

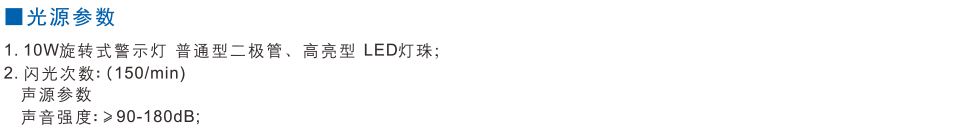

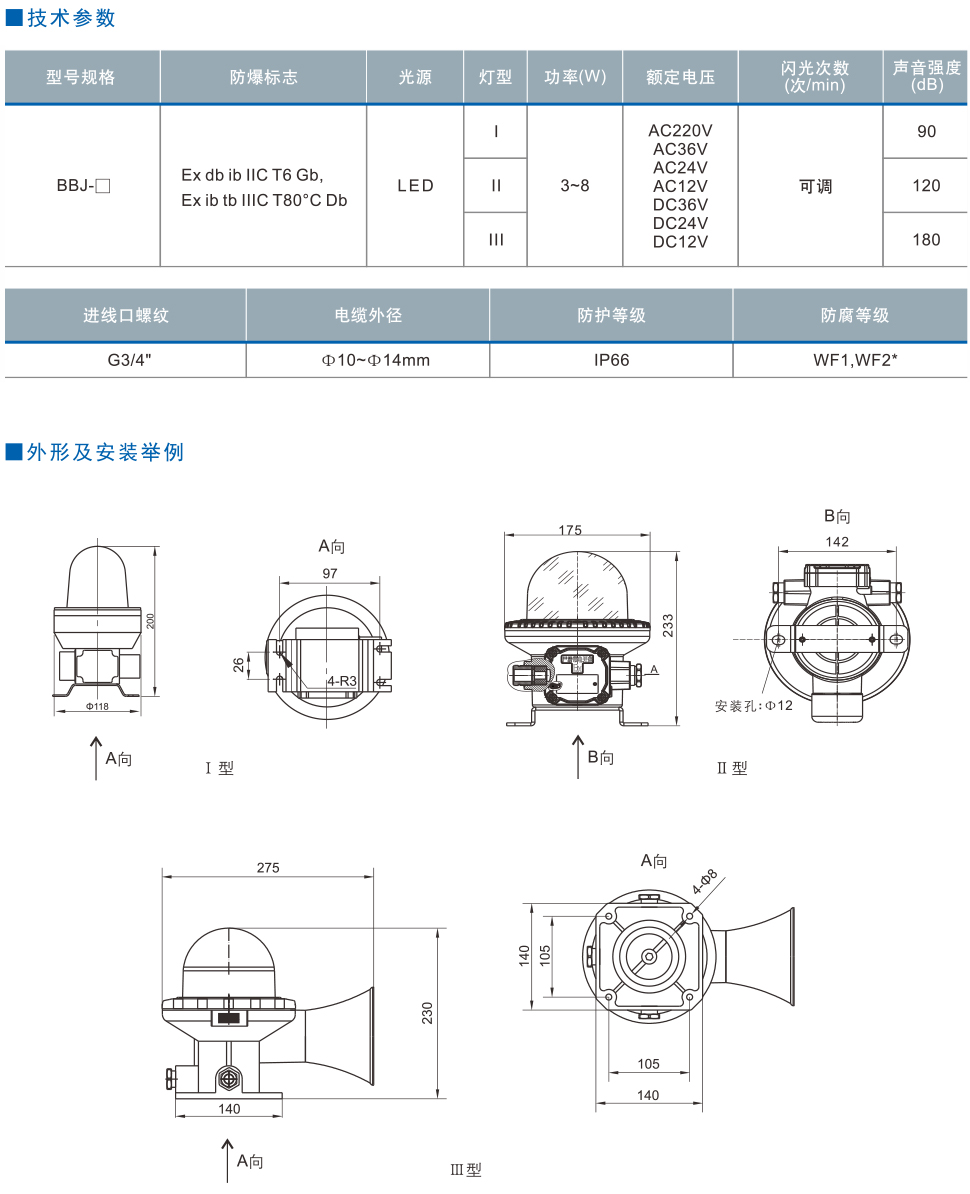

Detailed specifications
