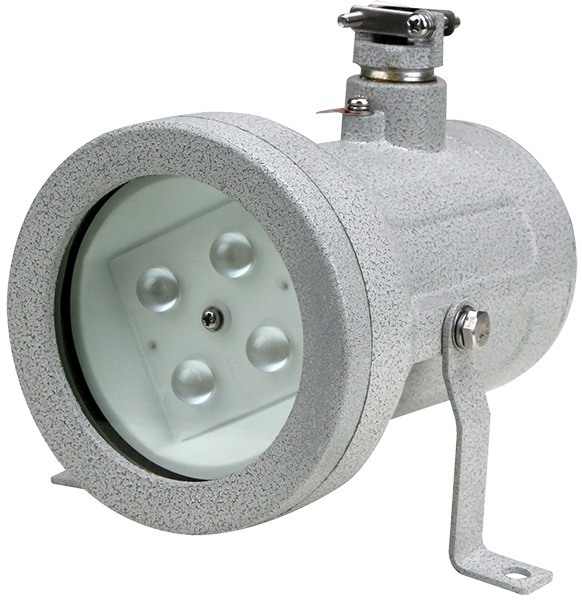

BSD51 series explosion-proof inspection hole light

1. Applicable to Zone 1 and Zone 2 areas with explosive gas atmospheres;

2. Applicable to Class IIA and Class IIB explosive gas atmospheres;

3. Applicable to Zone 21 and Zone 22 areas with explosive dust atmospheres;

4. Applicable to explosive dust atmospheres of Class III A, III B, and III C;

5. Applicable to temperature groups T1 to T6;

6. Applicable to energy-saving renovation projects and places where maintenance and replacement are difficult;

7. It is widely used for lighting in various fields such as oil extraction, refining, chemical industry, military industry, textile, food processing, as well as offshore oil platforms and other places.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

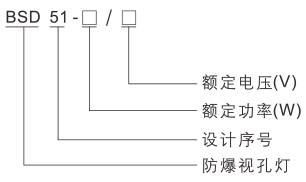

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-31

Features

1. The aluminum alloy die-casting shell undergoes high-speed shot blasting treatment, followed by high-pressure electrostatic spraying on the surface, making it corrosion-resistant and anti-aging;

2. Stainless steel exposed fasteners exhibit high corrosion resistance;

3. High-strength tempered glass transparent cover;

4. The L series utilizes high-brightness energy-saving LED light sources, which are environmentally friendly, have a long lifespan, and require no maintenance over the long term;

5. The product features a delay function;

6. For chemical reaction containers or specific locations in hazardous environments, a specially designed magnetic switch is implemented. It allows for both on-off control through the switch on the lamp body and external switches;

7. The angle of the mounting bracket can be adjusted freely, which is very flexible;

8. Both steel pipe and cable wiring are acceptable.

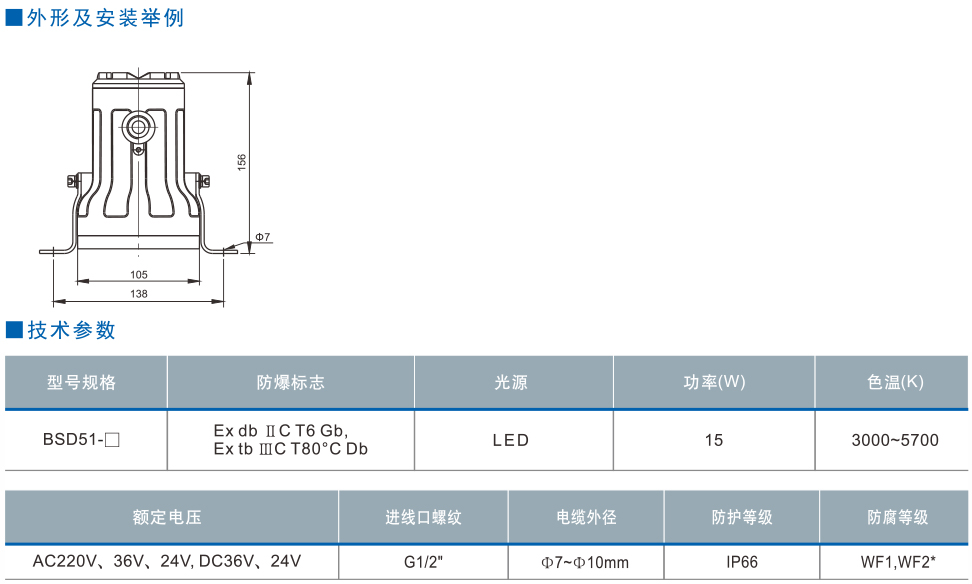

Detailed specifications
