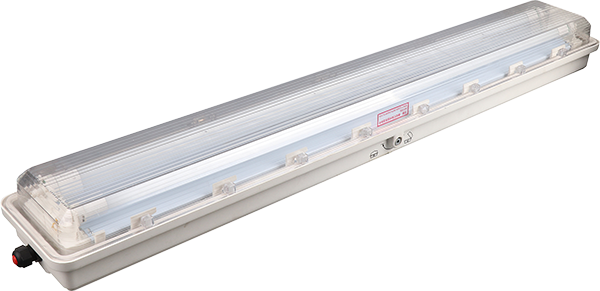

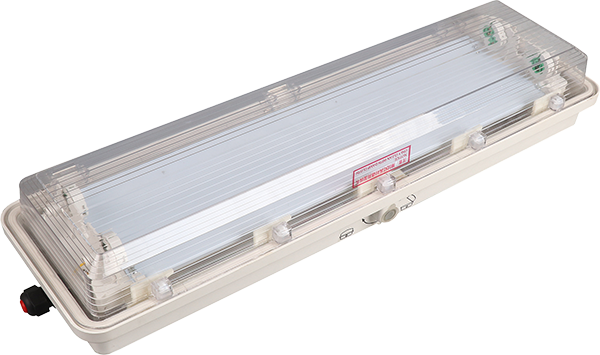

BYS series explosion-proof and corrosion-resistant fluorescent lamp

1. Suitable for use in Zone 1 and Zone 2 areas with explosive gas atmospheres;

2. Applicable to explosive gas atmospheres of Class IIA, Class IIB, and Class IIC;

3. Applicable to Zone 21 and Zone 22 areas with explosive dust atmospheres;

4. Suitable for use in explosive dust atmospheres of Class III A, III B, and III C;

5. Applicable to temperature groups T1 to T6;

6. Suitable for working and scene lighting in hazardous environments such as oil extraction, refining, chemical industry, and military industry;

7. Applicable to places with high protection requirements, humidity, and containing corrosive gases.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

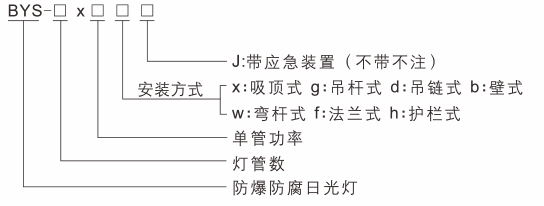

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.3、GB/T 3836.9、GB/T 3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-7、IEC 60079-18、IEC 60079-31


Features

1. The shell is molded using high-strength SMC (Sheet Molded Compound). The transparent cover is injection molded from polycarbonate, which has good light transmission performance and strong impact resistance;

2. The shell adopts a labyrinth structure, which has good dustproof, waterproof, and strong corrosion-resistant characteristics;

3. The built-in ballast is a specially designed explosion-proof ballast with a power factor >0.95. It has an internal isolating switch that automatically cuts off the power when the product cover is opened, enhancing the safety performance of the product It features short circuit and open circuit protection functions, and is equipped with a preventive circuit against the aging effect and air leakage of the lamp tube, ensuring the normal operation of the lighting fixture, high efficiency, and energy saving. It also has a wide voltage input range,

Characteristics such as constant power output;

4. Equipped with fluorescent tubes from well-known brands, featuring long lifespan and high luminous efficiency;

5. Emergency devices can be configured according to user requirements. When the external power is cut off, the lighting fixtures will automatically switch to emergency lighting mode;

6. Both steel pipe and cable wiring are acceptable.

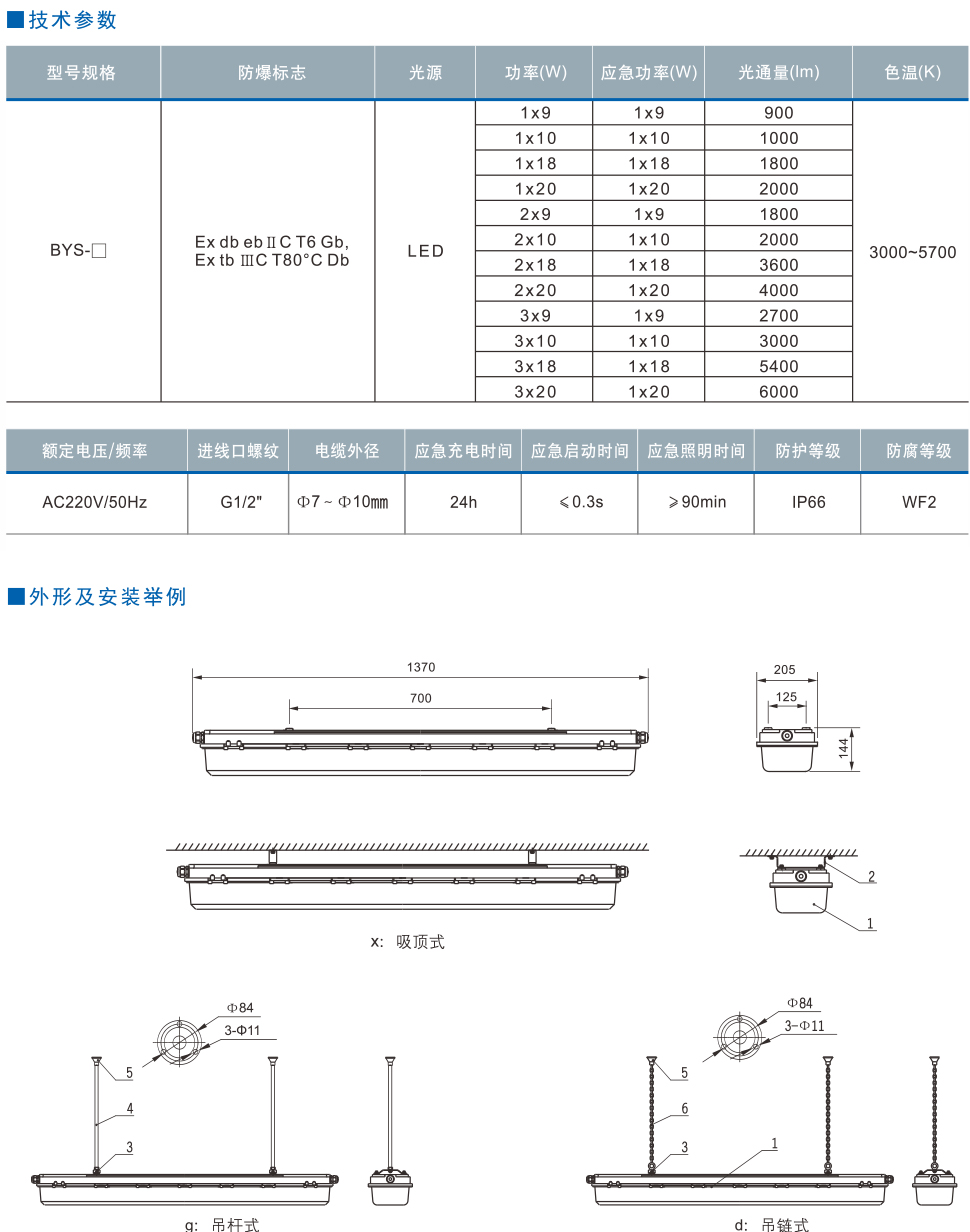

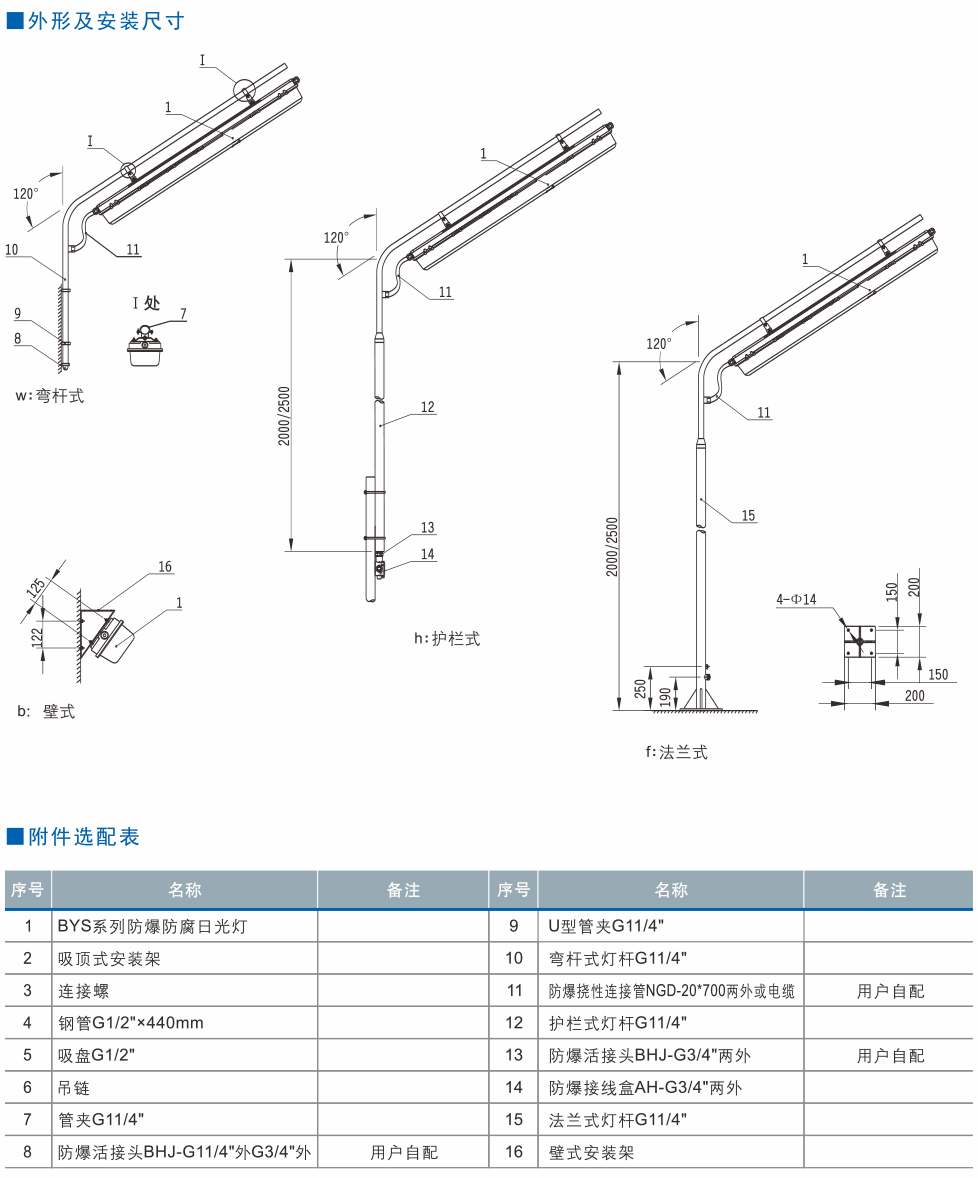

Detailed specifications
