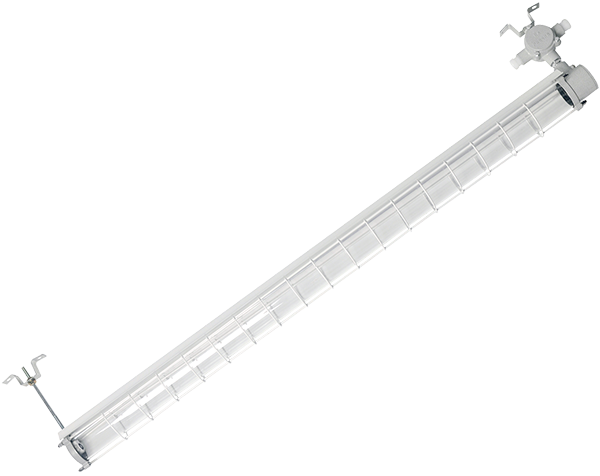

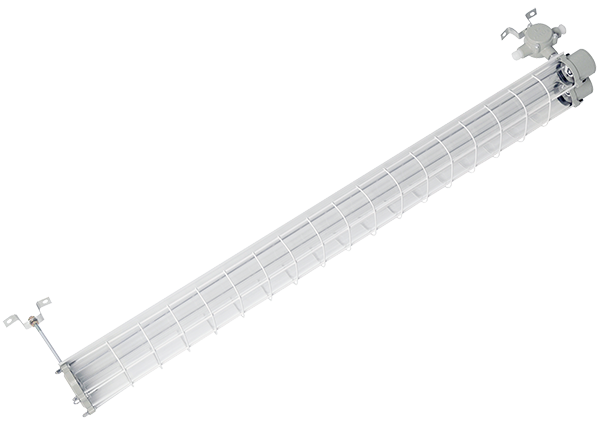

BPY series explosion-proof fluorescent lamp

1. Applicable to Zone 1 and Zone 2 areas with explosive gas atmospheres;

2. Applicable to Class IIA and Class IIB explosive gas atmospheres;

3. Applicable to Zone 21 and Zone 22 areas with explosive dust atmospheres;

4. Suitable for use in explosive dust atmospheres of Class III A, III B, and III C;

5. Applicable to temperature groups T1 to T6;

6. Suitable for working and scene lighting in hazardous environments such as oil extraction, refining, chemical industry, and military industry.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

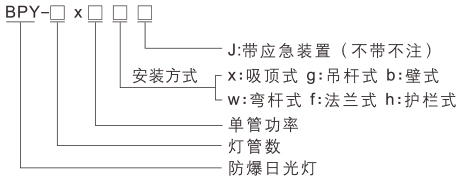

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.3、GB/T 3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-7、IEC 60079-31

Features

1. Aluminum alloy die-casting shell, high-speed shot blasting treatment, surface high-voltage electrostatic spraying, corrosion-resistant and anti-aging;

2. Stainless steel exposed fasteners have high corrosion resistance;

3. High-strength tempered glass transparent tube, with high light transmittance, has undergone rigorous impact testing and thermal shock testing, ensuring reliable explosion-proof performance;

4. Install a grille-type protective net cover, made of high-quality carbon steel that is galvanized and then coated with plastic, providing dual corrosion protection;

5. Equipped with fluorescent tubes from renowned brands, featuring long lifespan and high luminous efficiency;

6. The lighting fixture is equipped with a wiring cavity and dedicated wiring terminals, allowing users to proceed directly during installation without the need for a separate junction box, making it convenient and quick;

7. Modular plug-in design, simply loosen the end cap, pull out the core, and replace the lamp tube;

8. The LED series light source utilizes the latest generation of maintenance-free energy-saving LED tubes, featuring long lifespan, long-term maintenance-free operation, high efficiency and energy saving, and a wide voltage range;

9. An emergency device can be installed according to user requirements, so that when the power supply is interrupted, the lighting fixtures will automatically switch to emergency lighting mode;

10. Both steel pipe and cable wiring are acceptable.

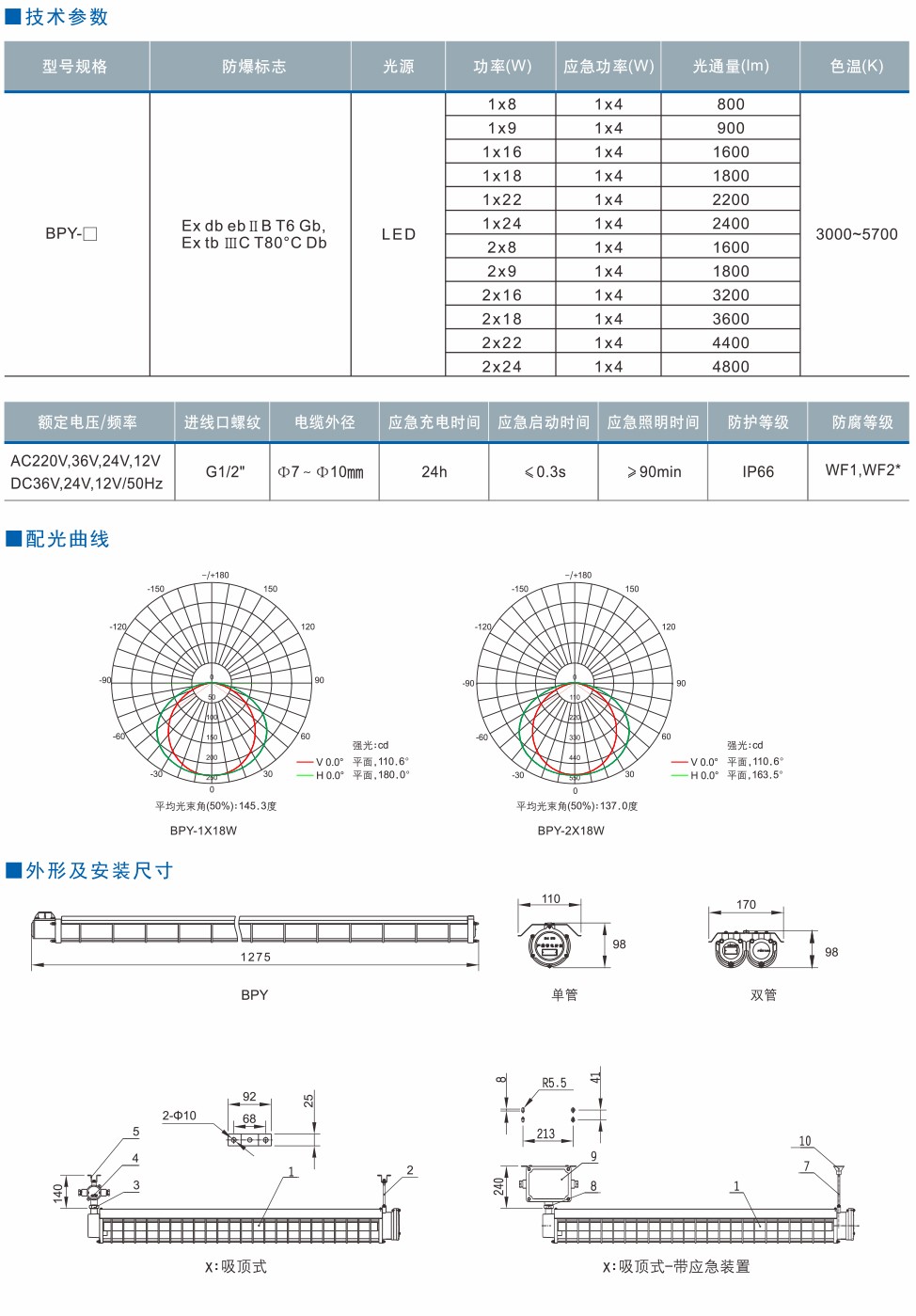

Detailed specifications
