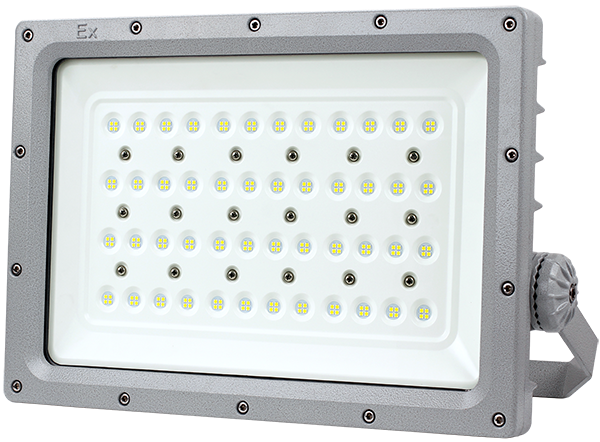

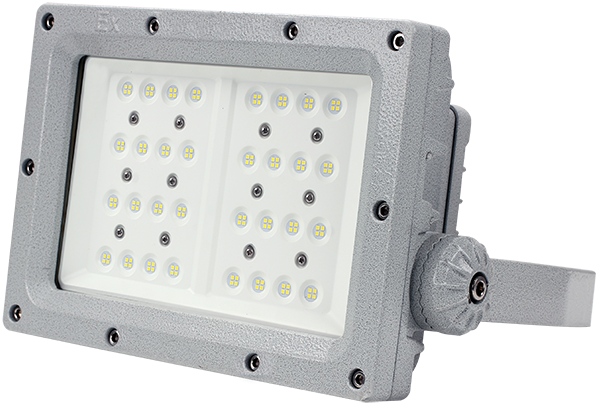

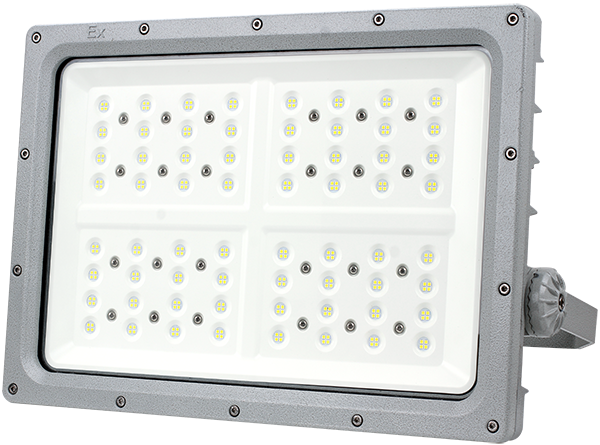

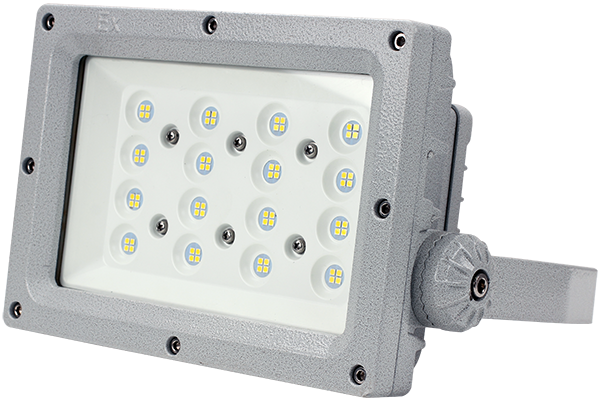

BED57 series explosion-proof, maintenance-free, energy-saving LED lights

1. Applicable to Zone 1 and Zone 2 areas with explosive gas atmospheres;

2. Applicable to explosive gas atmospheres of Class IIA, Class IIB, and Class IIC;

3. Applicable to areas with explosive dust atmospheres, Zone 21 and Zone 22;

4. Suitable for use in explosive dust atmospheres of Class IIIA, Class IIB, and Class IIC;

5. Applicable to temperature groups T1 to T6;

6. Applicable to energy-saving renovation projects and places where maintenance and replacement are difficult;

7. It is widely used for lighting in various fields such as oil extraction, refining, chemical industry, military industry, textile, food processing, as well as in offshore oil platforms, oil tankers, and other places.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

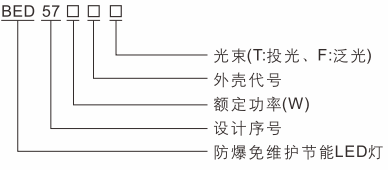

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.3、GB/T 3836.9、GB/T 3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-7、IEC 60079-18、IEC 60079-31


Features

1. The radiator is designed using special die-casting aluminum alloy, with its surface treated through high-voltage electrostatic spraying;

2. Highly corrosion-resistant stainless steel exposed fasteners;

3. Separated structure of light source cavity and power supply cavity;

4. The professionally designed light distribution system boasts high light utilization efficiency, reasonable light distribution, uniform illumination, and no glare;

5. The junction box adopts a labyrinth structure and is equipped with silicone rubber sealing strips, which are firmly attached and have a high level of protection;

6. High-strength tempered glass material, with strong resistance to impact and thermal shock, and high light transmittance;

7. The constant current power supply features wide voltage input, constant current output, and protection functions such as shunt, surge protection, overcurrent protection, open circuit protection, short circuit protection, high temperature protection, and electromagnetic interference resistance;

8. The power factor cos is greater than 0.95;

9. A combined emergency device can be equipped according to the usage requirements. When the power supply is interrupted, it can automatically switch to the emergency lighting state;

10. Cable routing.

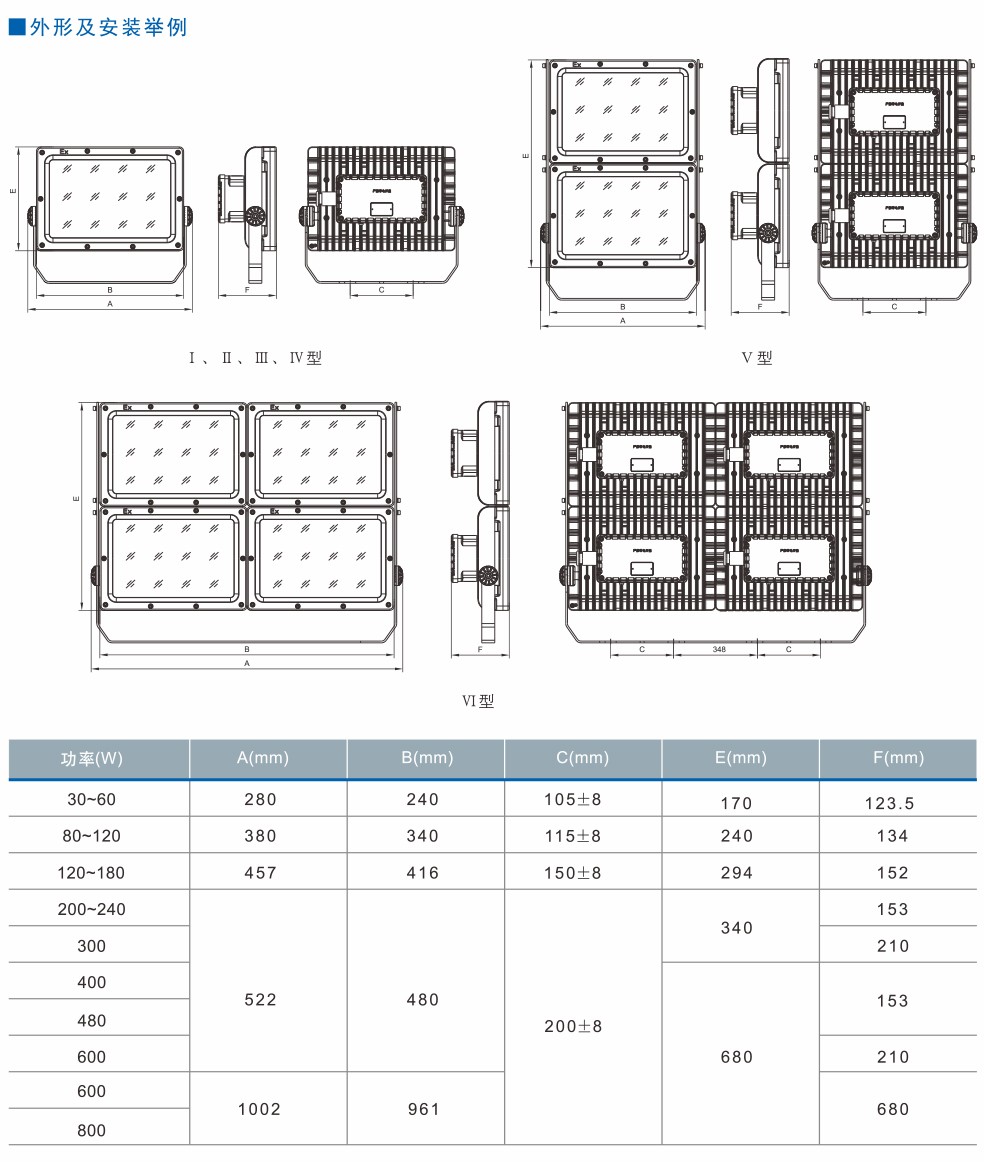

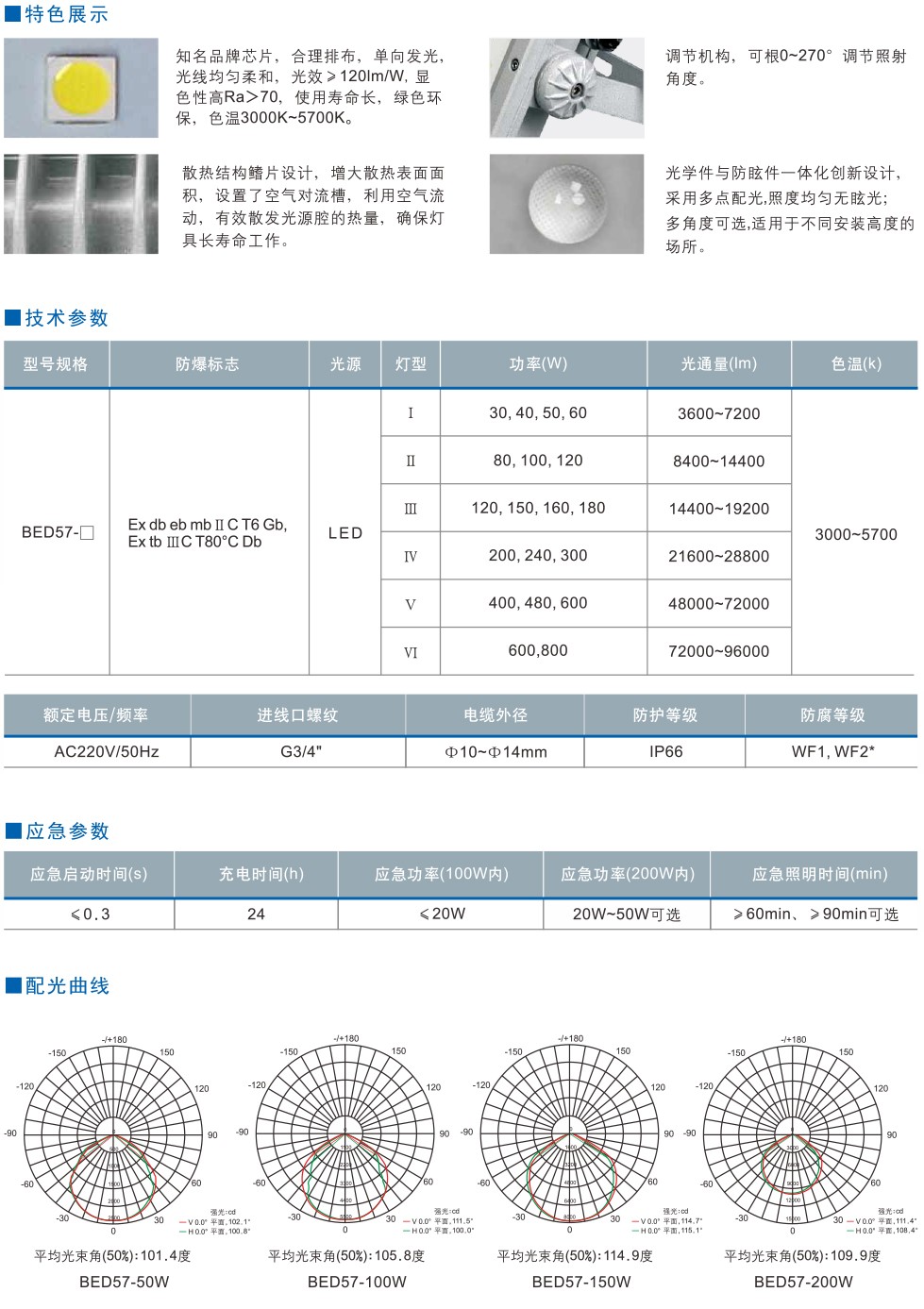

Detailed specifications
