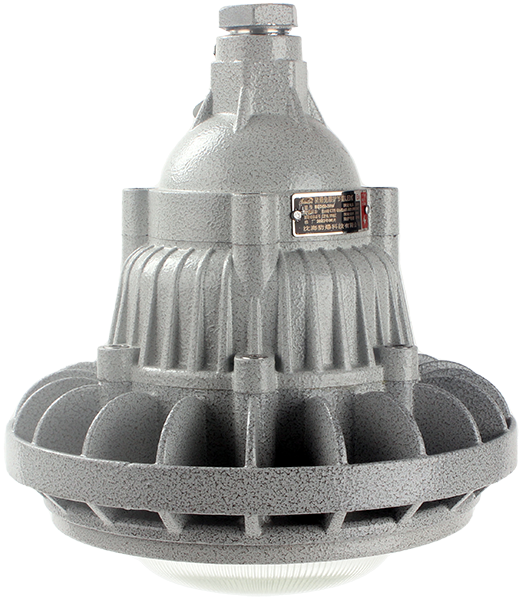

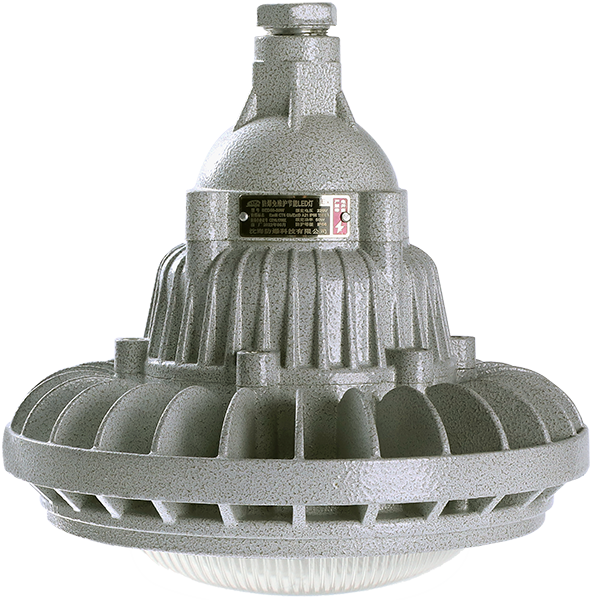

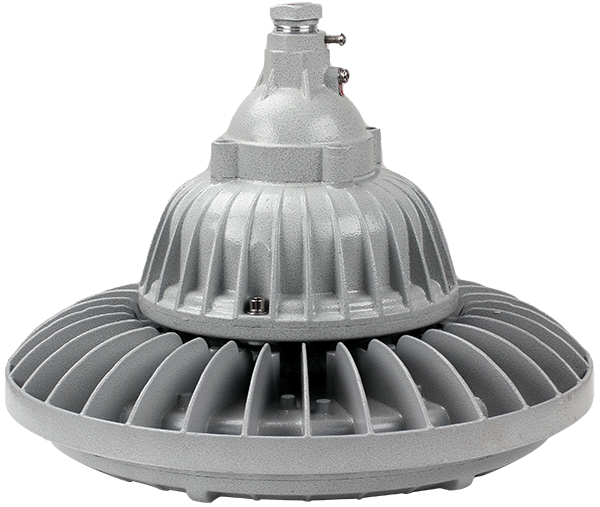

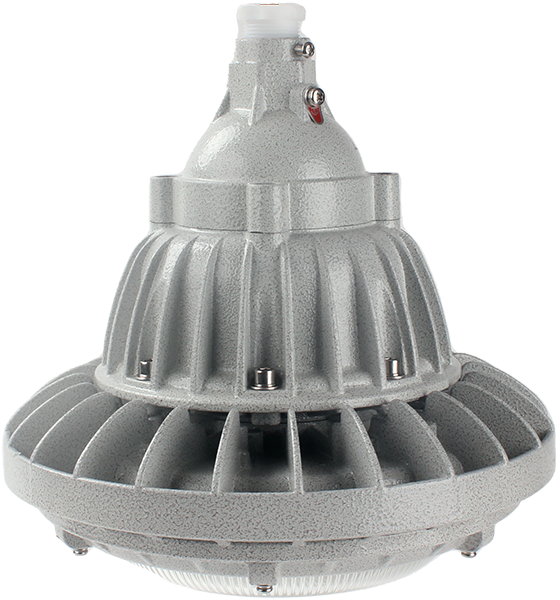

BED59 series explosion-proof, maintenance-free, energy-saving LED lights

1. Applicable to Zone 1 and Zone 2 areas with explosive gas atmospheres;

2. Applicable to explosive gas atmospheres of Class IIA, Class IIB, and Class IIC;

3. Applicable to Zone 21 and Zone 22 areas with explosive dust atmospheres;

4. Applicable to explosive dust atmospheres of Class III A, III B, and III C;

5. Applicable to temperature groups T1 to T6;

6. Applicable to energy-saving renovation projects and places where maintenance and replacement are difficult;

7. It is widely used for lighting in various fields such as oil extraction, refining, chemical industry, military industry, textile, food processing, as well as in offshore oil platforms, oil tankers, and other places.


Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features
Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-31

Features

1. The radiator is designed using special die-casting aluminum alloy and features a high-pressure electrostatic spray-plastic surface;

2. Highly corrosion-resistant stainless steel exposed fasteners;

3. The seamless flameproof threaded joint surface, featuring a pure flameproof structure, provides more reliable explosion-proof performance;

4. Standard three-box separation structure design, modular installation and combination. Effectively reduces temperature rise and ensures long-life operation of the luminaire;

5. Multi-point lighting, high light utilization rate, uniform illumination without glare;

6. High-strength material, transparent tempered glass, with strong impact resistance and thermal shock resistance, and high light transmittance;

7. The constant current power supply features wide voltage input, constant current output, and protection functions such as shunt, surge protection, overcurrent protection, open circuit protection, short circuit protection, high temperature protection, and electromagnetic interference resistance;

8. Power factor cosΦ > 0.95;

9. Steel pipe or cable wiring.
