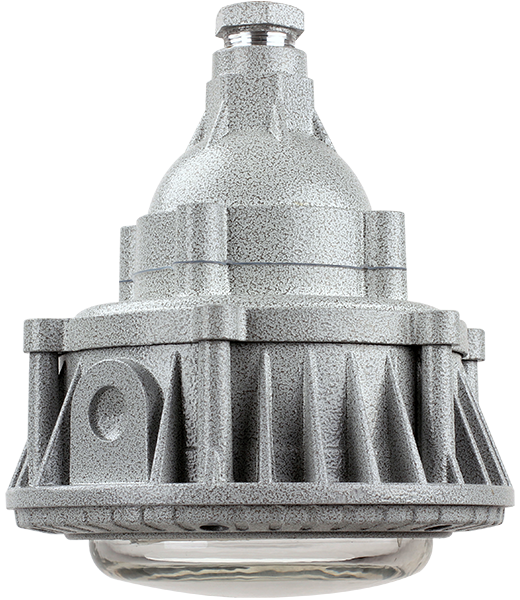

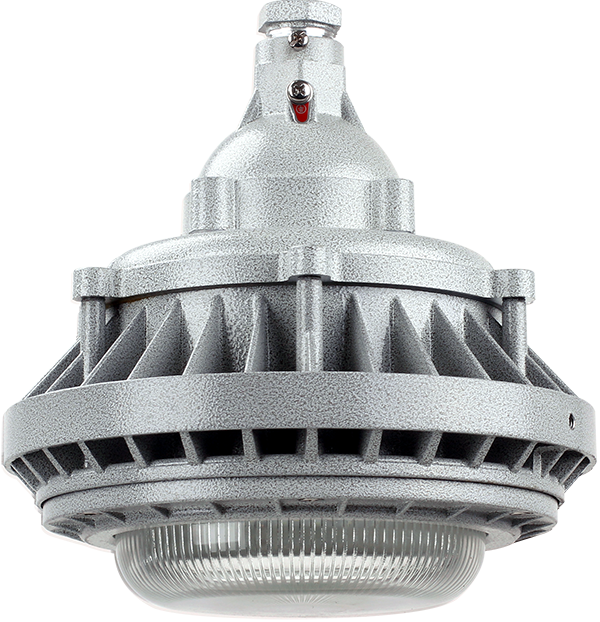

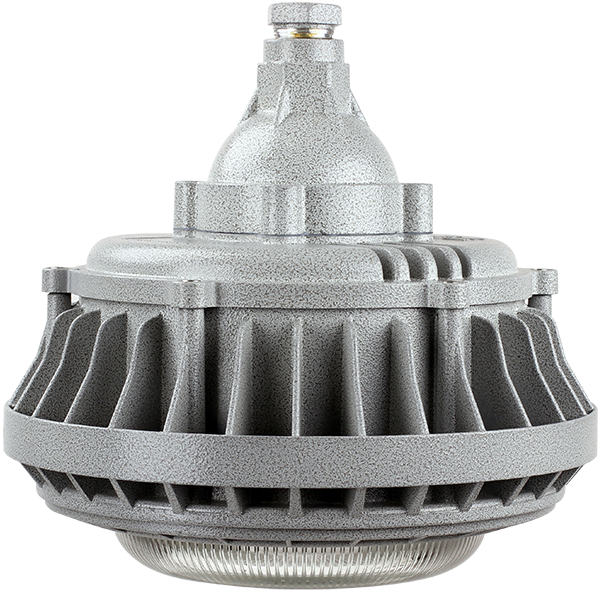

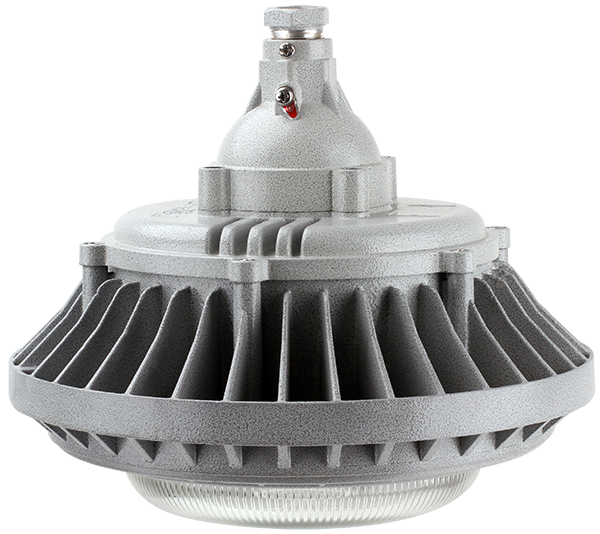

BED61 series explosion-proof, maintenance-free, energy-saving LED lights

1. Applicable to Zone 1 and Zone 2 areas with explosive gas atmospheres;

2. Applicable to explosive gas atmospheres of Class IIA, Class IIB, and Class IIC;

3. Applicable to Zone 21 and Zone 22 areas with explosive dust atmospheres;

4. Suitable for use in explosive dust atmospheres of Class III A, III B, and III C;

5. Applicable to temperature groups T1 to T6;

6. Applicable to energy-saving renovation projects and places where maintenance and replacement are difficult;

7. It is widely used for lighting in oil extraction, refining, chemical industry, military industry, textile, food processing, as well as offshore oil platforms, oil tankers, and other places.

Application
Oil field
Oil field
Chemical industry field
Chemical industry field
Aerospace field
Aerospace field
Coal mining field
Coal mining field
Metallurgical field
Metallurgical field
Pharmaceutical field
Pharmaceutical field
Brewing field
Brewing field
Fire protection field
Fire protection field
Features

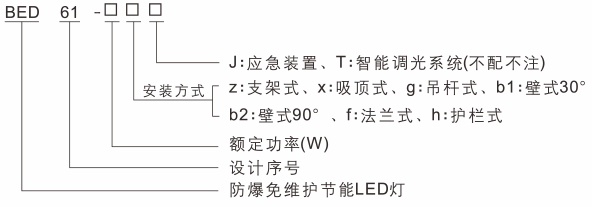

Model meaning


Implementation standards

GB/T 3836.1、GB/T 3836.2、GB/T 3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-31

Features

1. The radiator is designed to be die-cast using special cast aluminum alloy, with its surface being coated through high-voltage electrostatic spraying;

2. Highly corrosion-resistant stainless steel exposed fasteners;

3. The seamless flameproof joint surface, featuring a pure flameproof structure, ensures more reliable explosion-proof performance;

4. Multi-point lighting, high light utilization rate, uniform illumination without glare;

5. The constant current power supply features wide voltage input, constant current output, and protection functions such as shunt, surge protection, overcurrent protection, open circuit protection, short circuit protection, high temperature protection, and electromagnetic interference resistance;

6. Microwave induction dimming system, energy-saving and environmentally friendly;

7. Power factor cosΦ > 0.95;

8. A combined emergency device can be equipped according to the usage requirements. When the power supply is interrupted, it can automatically switch to the emergency lighting state;

9. Steel pipe or cable wiring.

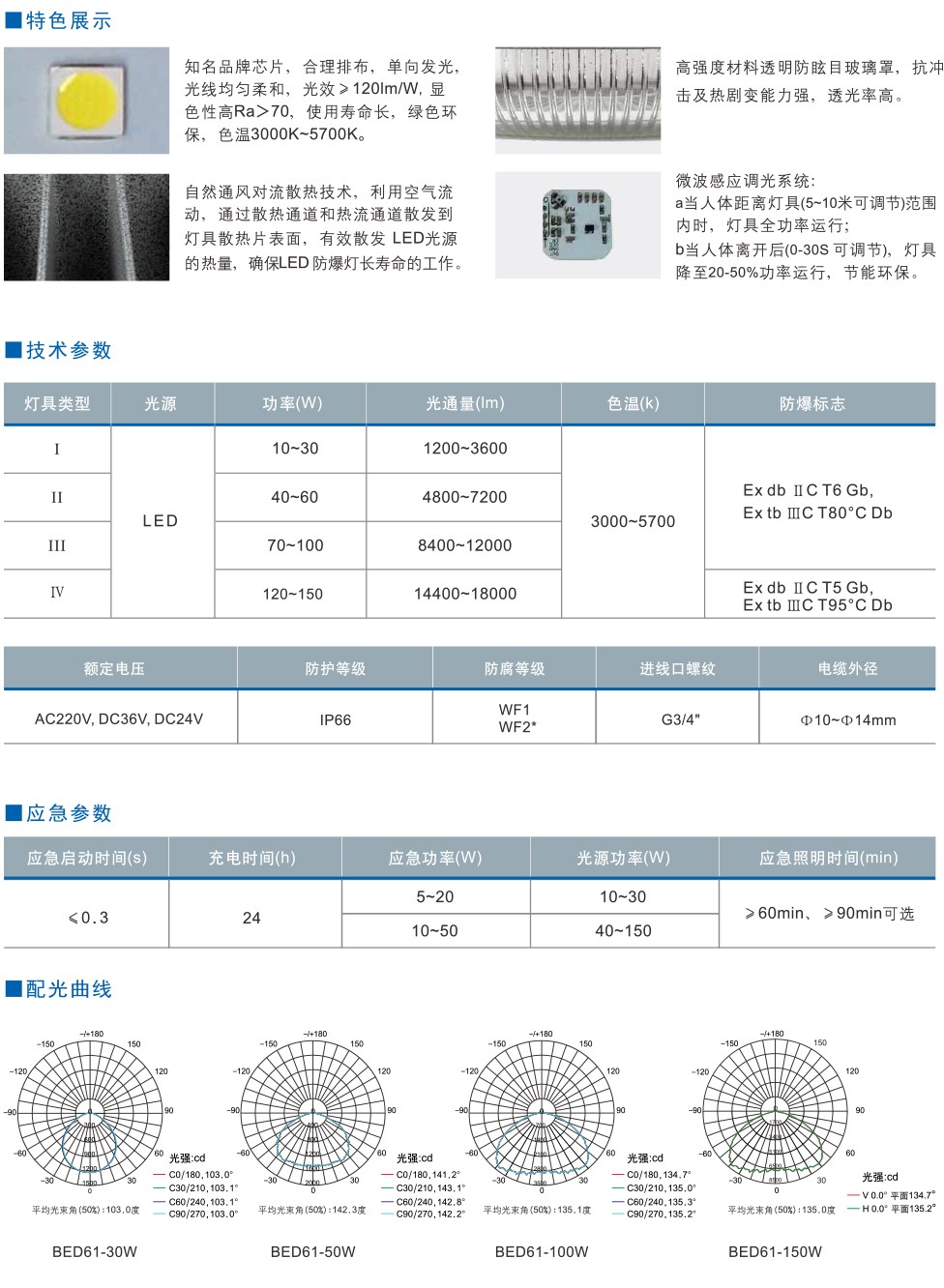

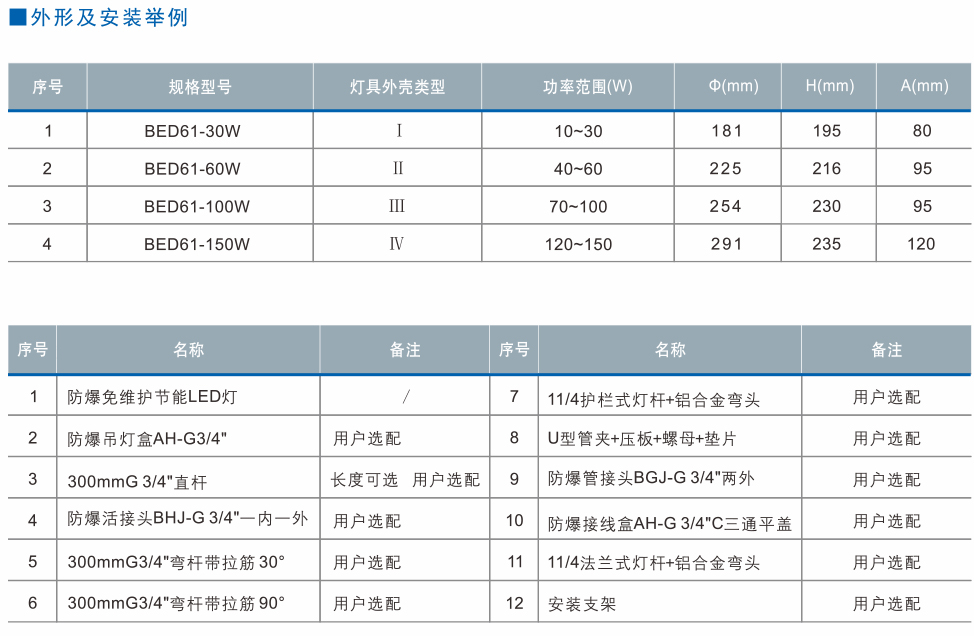

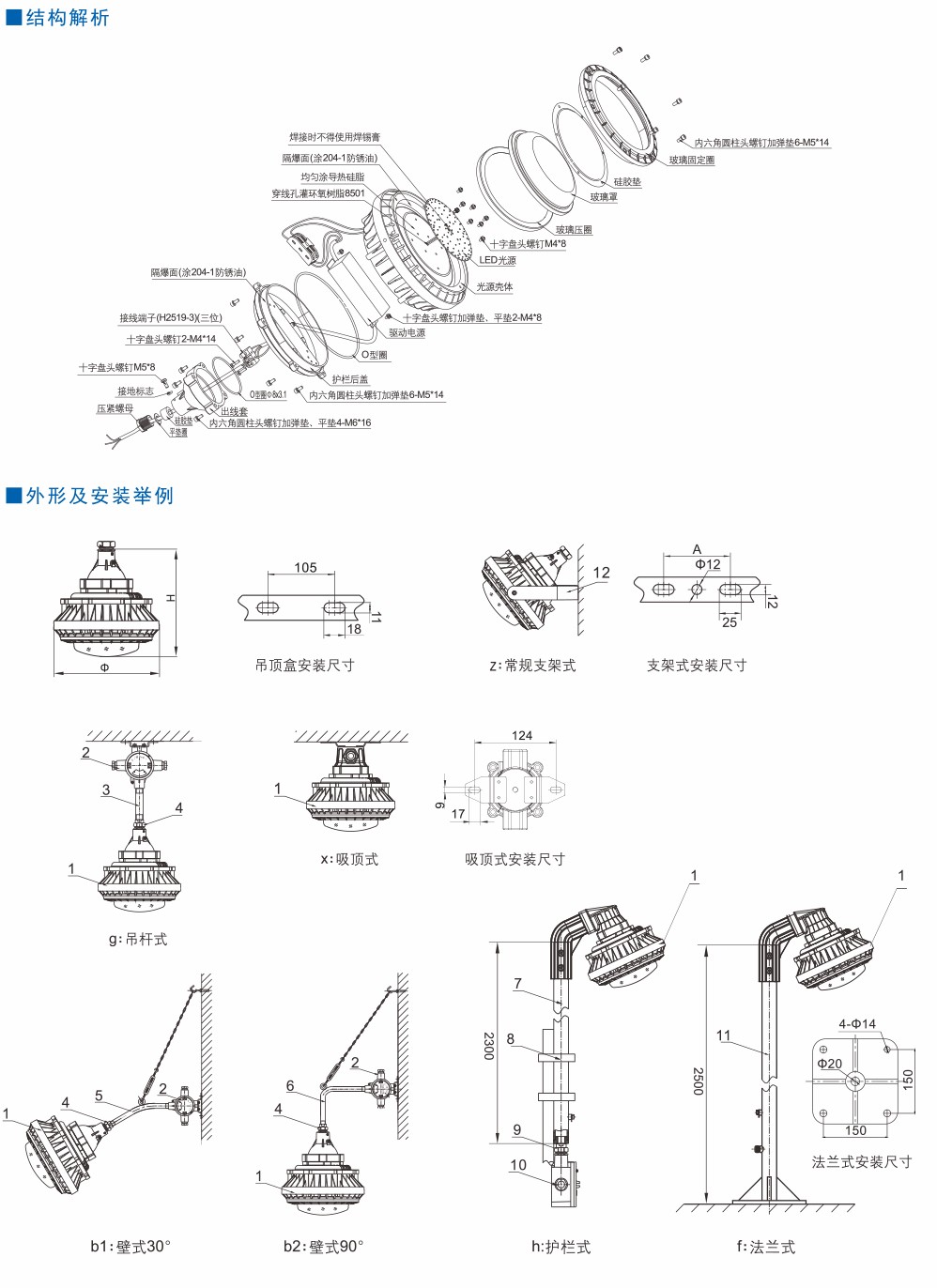

Detailed specifications
